3M 16000 PPS Paint Preparation System Kit

Calculating latest stock
Code: 27001
Manufacturers Part No: 16000
Order For Delivery
Select the required delivery time and method at checkout.
Allow 7-10 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£121.47 each
exc. VAT
£145.76 each
inc. VAT
Add to order

Product Overview

  • 3M PPS Paint Preparation System replaces traditional paint mixing cups and filters and drastically reduces the amount of solvent required for gun cleaning.

    The unique closed paint system eliminates the need for separate mixing cups and filters. Instead, paint is mixed in a liner bag which marries to a direct filter and is then mounted on the spray gun with a dedicated adapter. As freshly filtered paint is dispensed, the liner bag collapses, allowing the spray gun to function at any angle. Liner bag and filter are disposable, leaving only the spray gun and adapter to be cleaned. 3M PPS is therefore a cleaner, faster system, safe from outside contamination and offering considerable time and solvent savings on gun and parts cleaning.


    Only one 3M PPS cup for mixing and spraying.

    Closed system – no outside contamination.

    Up to 70% savings of cleaning solvent.

    Less operator exposure to solvents and reduction in VOCs.

    Faster system – from mixing to disposal.

    Spray gun functions at any angle.

    How to use the 3M PPS System:

    1)   Remove existing cup from spray gun.

    2)   Thread correct adapter into spray gun.

    3)   Remove liner from wall dispenser and place in PPS mixing cup.

    4)   Use the cup with liner to weigh the paint according to paint manufacturer’s guidelines or insert 3M Mix Ratio Film into the cup before placing liner into the cup.

    5)   Mix product as needed.

    6)   Take a lid (with built-in strainer) from wall dispenser and snap onto top of 3M  PPS cup/liner.

    7)   Position locking collar onto the 3M PPS cup/liner and turn until tight.

    8)   3M PPS cup shaker core is used to distribute clamping force when shaker machines are used to mix.

    9)   With spray gun inverted, lower onto 3M PPS cup and lock gun adapter to lid.

    10) Make sure that the lid fingers are fully engaged above adapter edge.

    11) With air line connected, invert gun and pull trigger (full open, not partial) to bleed air from the liner.

    12) Air only needs to be bled if spraying is to be done in the inverted position.

    13) With the air removed from the liner, the gun may be sprayed upside down or in any direction to reach into difficult areas.

    14) Disconnect air line, invert gun and pull trigger (full open, not partial) to return mix to gun cup before disconnecting gun.

    15) To retain unused paint, seal the lid/liner with a sealing cap, and store.

    16) When the 3M PPS cup is empty the collapsed liner and lid may be disposed of. Consult local regulations or authorities for proper disposal.

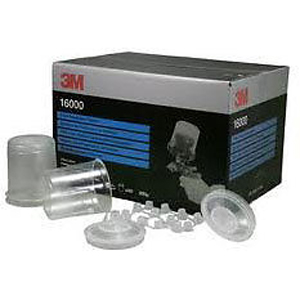

    16000 Kit Contains: 50 x lids with 200 micron filters, 50 x liners & 24 x sealing caps.
