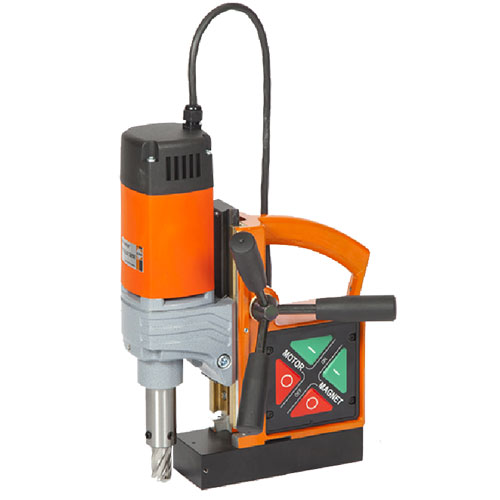

Alfra Rotabest Piccolo 38/50 38mm Magnetic Broaching Machine
The Alfra Rotabest Piccolo 38/50 electromagnetic based drill is the ideal machine for either shop or site applications when needing to produce hole sizes up to 38mm diameter through 50mm of material.
The Piccolo 38/50 has a built-in sensor / LED which informs the operator when the adhesion strength of the magnet is at the correct force for the thickness of material it is being adhered to, helping to ensure operator safety.
The motor to base sliding plate guides on the machine are "self-adjusting", reducing the risk of chatter at the cutting head helping to eliminate cutter breakage.
The motor height is adjustable on the slide offering a much larger and more variable stroke range, giving increased versatility.
Ergonomic handle and switch design for maximum ease of use, the unit is lightweight and very simple to use in all positions.
The small but powerful electro magnet on the RB38/50 is ideal for fitting into narrow beams and channels.
The 50mm depth of cut can be achieved with the use of long series cutters.
Input: 1100W – 110 Volt
No Load Speed: 450rpm
19mm Weldon Arbor
Coolant Supply: Internal, Automatic
Magnetic Adhesion: 9000N
Broaching Cutter: up to 32mm Ø
Twist Drill: up to 13mm Ø
Cutting Depth: up to 50mm Ø
Stroke: 129mm + 86mm
Size of Magnet Foot: 70 x 185mm
Included as standard: Carry Case, Coolant bottle, Safety Strap, 2.5mm Allen Key, 4.0mm Allen Key & 6.0mm Allen Key.
