Alfra RB8OX 80 X 50 Magnetic 110V Broaching Machine

Calculating latest stock

Klarna 0% finance available on orders over £99+vat

Product Overview

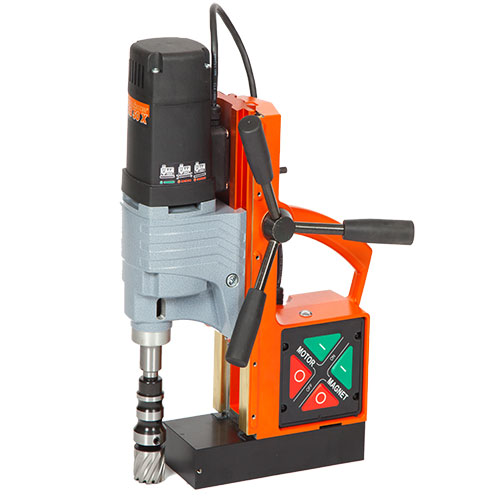

  • Alfra RB80X Magnetic Drill for cutting holes into steel work ideal for steel erectors for pearling work on new builds.


    Features:

    Magnetic Drill for drilling holes up to 80mm diameter and 50mm depth.

    Machine has 2 speed gearbox.

    Adjustable Head to take standard drill bits.

    Specification:

    Weight: 19.5Kg

    Motor: 1800W

    Voltage: 110V / 230V

    Broaching Cutting dimension: 12 – 80mm

    Cutting depth: 50mm

    Twist drill: Ø 1.0 – 16.0 mm with chuck and MT3 adaptor to Ø 32.0 mm with MT 3 DIN 345 bits.

    Countersunk 10mm  to 55mm

    Tapping with tapping attachment up to M30

    Stroke: 190mm

    Magnet Foot: 92mm x 220mm

        Arbor: MT3

        4-speed-gearbox On-load speed: 1. Gear 110 rpm.                                                        2. Gear 175 rpm.                                                        3. Gear 245 rpm.                                                        4. Gear 385 rpm.     Weight: 19.5 kg

    Included as Standard: Tool holder AMT-3 No internal cooling, Safety belt, Guard, Coolant unit, Transport case and Operation manual.
