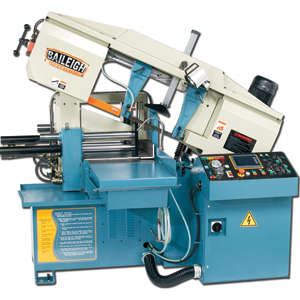

Baileigh BS-20A Fully Automatic Bandsaw Machine

Calculating latest stock
Code: 35143
Manufacturers Part No: BS-20A
Order For Delivery
Select the required delivery time and method at checkout.
Allow 7-10 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£26,688.00 each
exc. VAT
£32,025.60 each
inc. VAT
Add to order

Klarna pay in 3 available on orders £99+vat - £1200+vat

Product Overview

Manufacturer: Baileigh

  • This automatic industrial saw has been constructed using industrial grade components and materials and will stand up to years of gruelling service in any demanding fabrication shop or machine shop.


    The BS-20A is a fully automatic saw that can feed a bar or bundle of metal for production sawing requirements. This horizontal band saw hydraulically clamps the material while it is being cut as the feed table and clamping system is positioning for the next cut. This system cuts the material, lifts the cutting bow, and feeds out the proper linear amount, clamping it in place as the saw descends for the next cut.

    The BS-20A automatic band saw has a heavy duty in feed and out feed table capable of handling 5000 lbs. of material. This saw uses a powerful hydraulic linear feed system that is coupled to encoders for extremely precise feeds every time. The feed system also comes standard with a bundling system for feeding multiple bars of stock at the same time. This feature drastically increases production rates for large jobs.

    The main hydraulic vice at the cutting bows head has an overhead vice as well as a side vice. This automatic band saw uses industrial grade hydraulics for the feed system, bundling system, vice, and to feed and retract the cutting bow. This band saw comes standard with a variable speed metal chip auger that works in conjunction with the powerful industrial coolant system that together keeps the machine clean.

    Some standard features on this powerful automatic band saw are broken blade shut off, patented blade tension devise; halogen lighting, dual descent feed arm, and an easy to use programming control unit. Additional features are a large industrial grade 5 hp motor that uses an inverter drive for variable speed and overload protection. This machine has a 330x460mm sawing capacity and comes standard with a 27mm blade.


    Cutting degree: 90° / 45°

         Round: 330mm / 280mm

         Square: 330mm / 280mm

         Rectangular: 330x460mm / 330x280mm

    Blade Size: 4130mm x 27mm x 1mm

    Blade Speed: 28, 41, 60 and 78 m/min

    Blade Guide Carbide / Roller

    Mitre Adjustment Swivel Head

    Table Height: 820mm

    Descent Control Pressure Assist: Hydraulic

    Return: Hydraulic

    Chip Removal Hydraulic: Auger

    Material Feed: Hydraulic

    Material Clamping / Bundling Hydraulic

    Motor Blade: 3.7Kw

    Motor Hydraulic: 0.7Kw

    Power: 220v / 3 phase 400v / 3 phase / 50Hz

    Dimensions (L/W/H): 2286mm/2210mm/1753mm

    Weight: 1590kg

    Delivery time: up to 60 Days

    Additional deliver charges will apply on this item depending on geographical area, please contact our sales on team on 08452 603050 or email for delivery charges prior to ordering.
