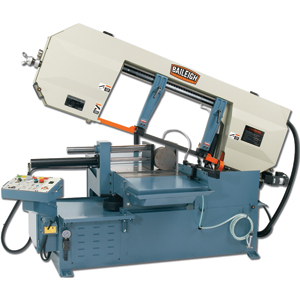

Baileigh BS-24SA Semi-Auto Horizontal Mitring Bandsaw Machin

Calculating latest stock
Code: 35142
Manufacturers Part No: BS-24SA
Order For Delivery
Select the required delivery time and method at checkout.
Allow 7-10 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£19,139.00 each
exc. VAT
£22,966.80 each
inc. VAT
Add to order

Klarna pay in 3 available on orders £99+vat - £1200+vat

Product Overview

Manufacturer: Baileigh

  • Features:

    The BS-24SA horizontal semi-automatic band saw has a massive 457mm x 533mm capacity and utilizes a huge 41mm blade, meaning you will get extremely straight cuts.

    This band saw is a semi-automatic model which has a powerful hydraulic vice, down feed, and bow return.

    When initiating a cut the vice will close, the machine will start-up and proceed with the cut. When the cut is complete the blade will shut down, the cutting head will return to the start position and the vice will open up, ready for the next cycle to proceed.

    The well-built cutting head has a blade tensioning devise that monitors the tension on the bow and allows the operator to adjust the blade to the proper tension. This really increases the life of the saw blade and the drive bearings in the bow.

    The heavy cast blade arms use bearings and adjustable Tungsten carbide inserts to keep the blade straight throughout the cutting process.

    This horizontal band saw comes with a strong roller in feed table with side roller and a strong out feed table.

    The powerful coolant system has three distribution points to cool and lubricate the blade and wash away chips.

    The brass chip removal wheel is motorized for optimum performance.


    Cutting degree: 90° / 45° / 60°

    Round: 457mm / 399mm / 279mm

    Square: 457mm / 399mm / 279mm

    Rectangular: 457x533mm / 400x400mm / 279x279mm

    Head Swivels up to 60° Mitre, Semi-Automatic

    Blade Size: 5334mm x 41mm x 1.3mm

    Variable blade speeds: 30-114m/min

    Motor: 3.7Kw

    Measurements: 2311mm x 2337mm x 1778mm

    Input: 400 Volt, 50Hz, Three Phase

    Weight: 1397kg

    Additional deliver charges will apply on this item depending on geographical area, please contact our sales on team on 08452 603050 or email for delivery charges prior to ordering.
