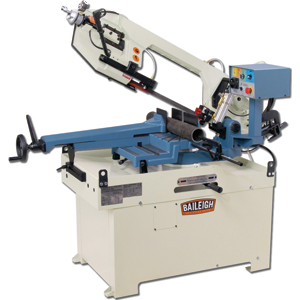

Baileigh BS-350m Horizontal Bandsaw Machine
The gear driven BS-350 is the perfect saw for cutting at 90 degrees or mitre angles and has a 349mm maximum capacity.
This saw has a dual angle head capable of cutting 0-60 degrees right and 0-45 degrees left, making it one of the most versatile saws on the market.
The quick release allows the operator to change the mitre angle in seconds.
The BS-350M can operate in two different modes; manual or controlled descent. With this model band saw there is a controlled descent mode that allows you to control the rate at which the head drops through your material. When using the saw in manual mode, you activate the trigger and move the blade through the material by pulling down on the handle.
The blade on this band saw is very heavy duty and is 27mm inch wide by .035 inches thick. A dual blade guide system is incorporated on this band saw.
Rollers followed by carbide pads are employed to add rigidity and beam strength to the saw, increasing the accuracy of the cuts.
The saw also has a sturdy chip removal brush to remove any chips that may become lodged in the gullets of the band saw blade. This allows for maintaining a clean blade which provides for accurate cuts and prolonged blade life.
The vice’s width is adjustable and is equipped with a quick release feature to improve efficiency for longer runs.
A heavy duty vice is standard on each band saw.
The vice on this particular model opens up to 315mm.
Every band saw offered comes with a flood coolant system with a 1/8 hp motor driving the system.
There are several standard safety features with every single band saw we sell. One feature being the blade breakage gauge which automatically shuts down the saw in the event that the saw blade breaks. There is an easy to reach E-stop for added safety on each saw. All controls on each and every band saw are conveniently located to optimize operator efficiency and safety.
Cutting degree: 90° / 45° / 60° / 45L°
Round: 267 / 241 / 237 / 210mm
Square: 254 / 222 / 152 / 178mm
Rectangular: 349 / 216 / 241 / 237 / 864 / 210mm
Variable Blade Speed: 20m to 85m/min
Motor: 1.8 Kw
Power Requirements: 240 Volt, 50Hz, Single Phase
Two cutting functions: manual or controlled descent
Blade Size: 3200mm x 27m x 1mm
Measurements: 1880 x 762 x 1118mm
