Belle PCLX320 Heavy Duty Plate Compactor

£753.80 exc. VAT
£904.56 inc. VAT
Calculating latest stock
Code: 34762
Part No: PCLX320BEL
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£753.80 each
exc. VAT
£904.56 each
inc. VAT
Add to order

Order with 0% Finance

Tell me more


Order on 0% Finance

HireBuy is a convenient and more affordable method of payment. Don’t compromise your next tool purchase, when you can spread the cost with no hidden charges or interest.

Available on all orders over £300

Pay it back in 3-12 months

0% interest & no hidden charges

Apply for finance

Product Overview

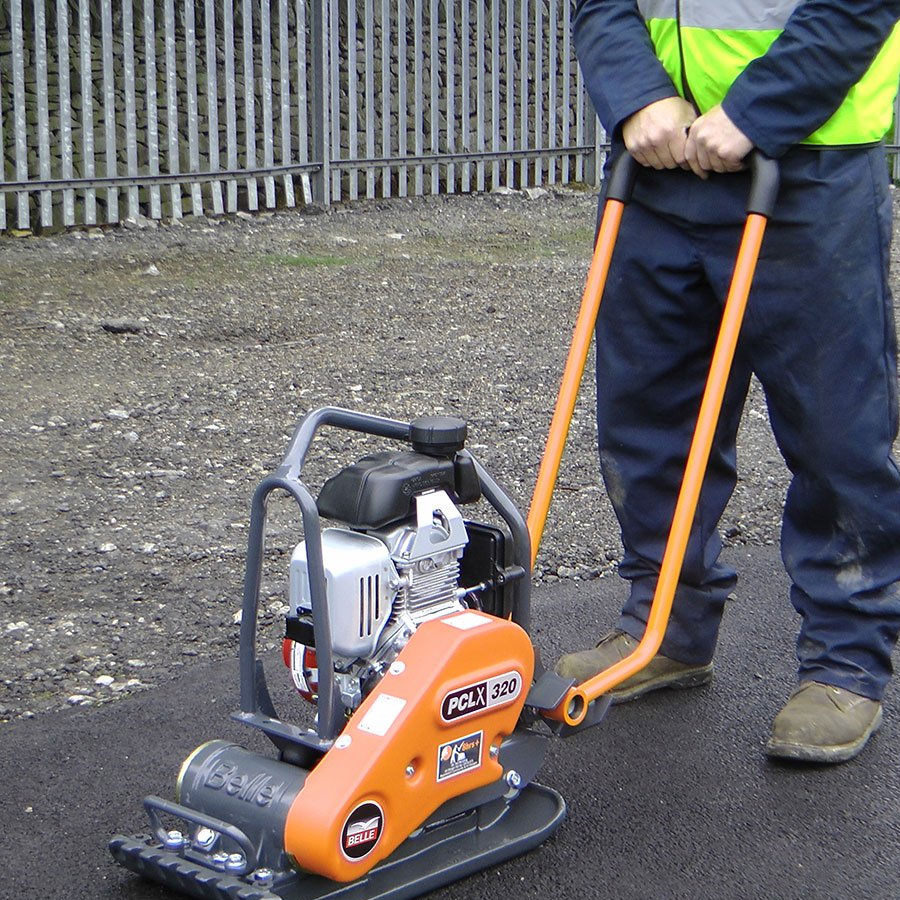

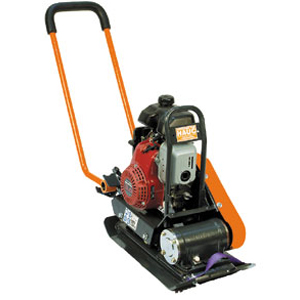

  • The Belle PCLX 320 is a heavy duty plate compactor, or wacker plate. The dimensions of the wacker plate are 320mm x 574mm.


    Comfort handles help to reduce operator fatigue.

    Low hand-arm vibration levels, patented and registered designs. Directive 2002/44/CE.

    Complete with lifting eye.

    Large capacity (12 l), "Quick Release" water tank.

    High quality vibrator gives reliability and performance.

    Manual handling points for an easy two man lift.


    Width: 320mm

    Operating Height: 927mm

    Operating Length: 990mm

    Storage Height: 570mm

    Storage Length: 790mm

    Plate Contact Area: (W x L) 290mm x 390mm

    Plate Length: 574mm

    Engine Power: (Hp / Kw) 3.0 / 2.2

    Engine RPM: 3850

    Weight: 62kg

    Static Pressure: 398kg/m²

    Centrifugal Force: 13kN

    Travel Speed: 20m/min

    Vibration level: 2.42m/sec²

    Additional delivery charge from £35 applies; further details will be advised prior to despatch.
