Product Overview

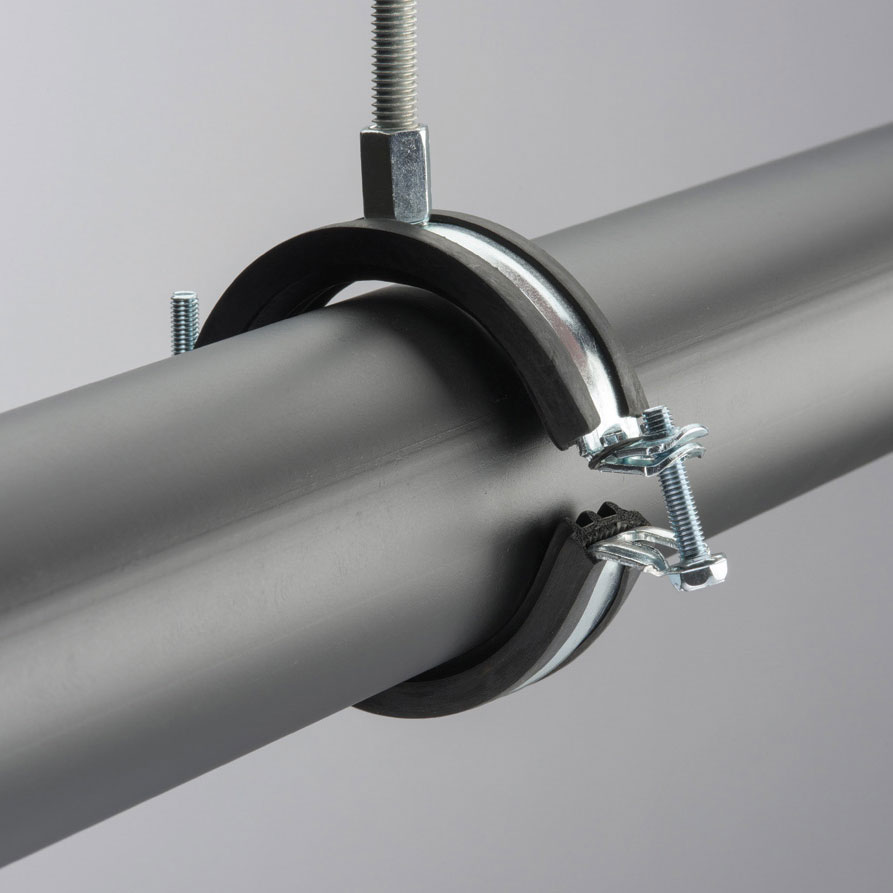

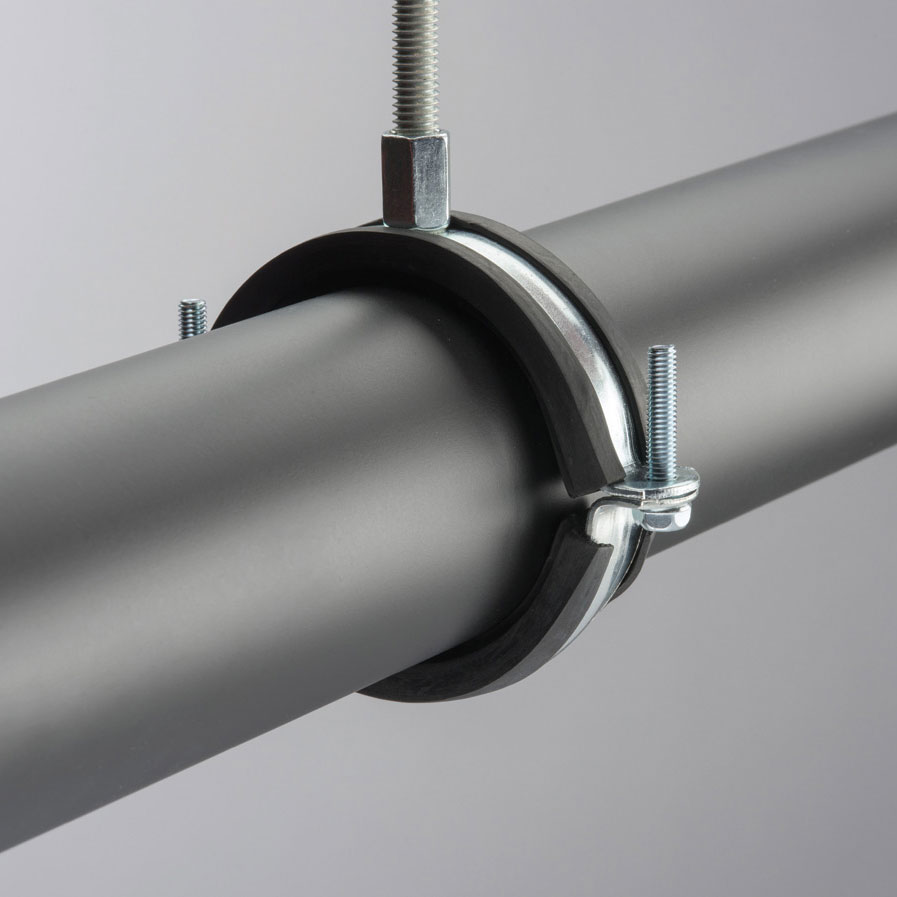

  • Erico Caddy Macrofix Rubber Lined Pipe Clamps M8/M10 in a range of sizes.

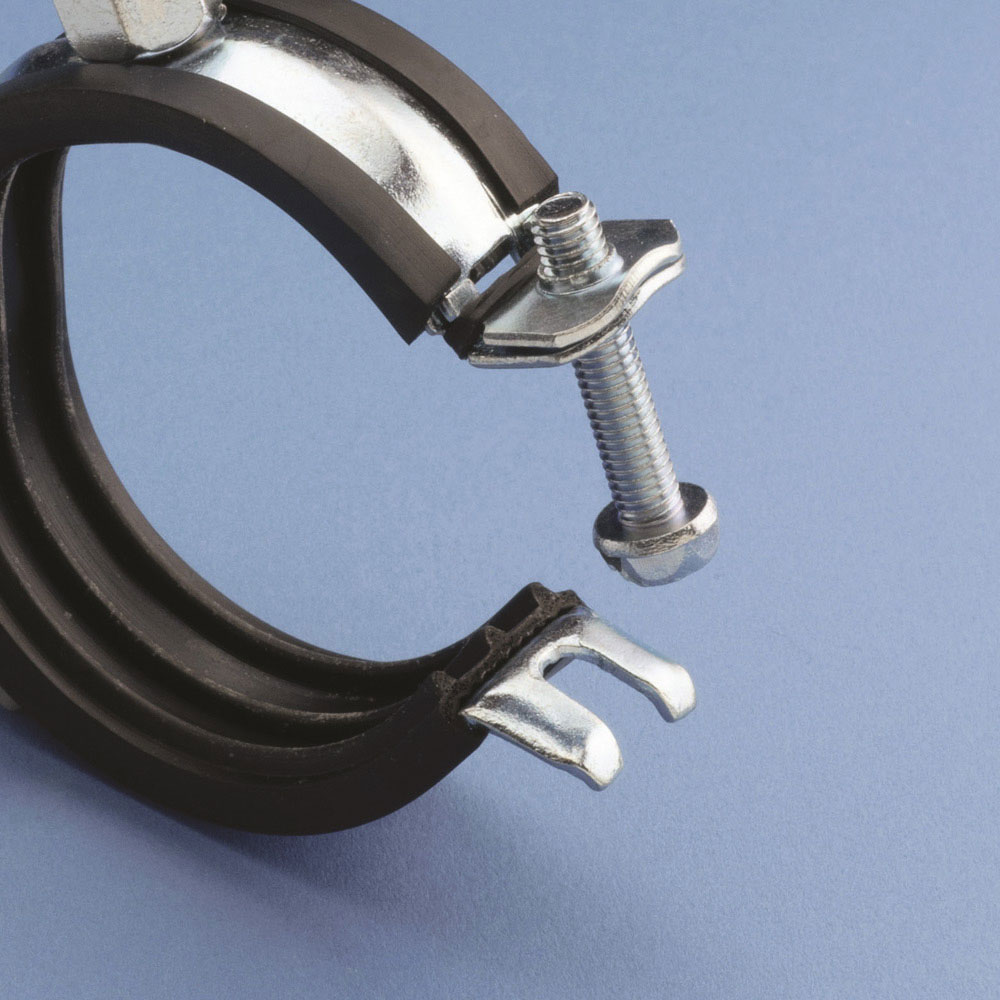

    Return-lip on the hanger prevents the rubber from detaching, eliminating rework during installation.

    Plastic washer prevents screws from falling out during installation.

    Combo head bolt works with slotted, hex, or Phillips drivers.

    Longer ears position the screw farther from the hanger, improving tool clearance when the screw is driven down.

    Combination nut can be attached to M8 or M10 threaded rod, simplifying material handling.

    Screw length has been optimized to accommodate an increased pipe range, reducing inventory.

    Category II noise reduction according to DIN EN ISO 3822-1.

    Compliant for sound insulation design according to DIN 4109.

    Reaction-to-fire classification is "E" in compliance with DIN EN 13501-1:2010-01.



    Code

    Part Number

    Outer Diameter (mm) OD

    Pipe Size

    NB/DN

    Rod Size RS

    Width (mm) W

    Thickness (mm) T

    Screw Diameter SC

    Screw Length (mm) L

    Static Load F

    04500

    MXD015

    12 – 15

    1/4"

    8

    M8,M10

    20

    1.5

    M6

    20

    1000 N

    04018

    MFD019

    15 – 19

    3/8"

    10

    M8,M10

    20

    1.0

    M6

    17

    1000 N

    04019

    MFD025

    20 – 24

    1/2"

    15

    M8,M10

    20

    1.0

    M6

    22

    1000 N

    04503

    MXD030

    25 – 30

    3/4"

    20

    M8,M10

    20

    1.5

    M6

    20

    1000 N

    04504

    MXD037

    32 – 37

    1”

    25

    M8,M10

    20

    1.5

    M6

    20

    1000 N

    04505

    MXD045

    40 – 45

    1 ¼”

    32

    M8,M10

    20

    1.5

    M6

    20

    1000 N

    04221

    MXD053

    48 – 53

    1 ½”

    40

    M8,M10

    20

    2.0

    M6

    25

    1300 N

    04506

    MXD058

    54 – 58

    M8,M10

    20

    2.0

    M6

    25

    1300 N

    04026

    MXD063

    59 – 63

    2”

    50

    M8,M10

    20

    2.0

    M6

    25

    1300 N

    04105

    MXD073

    68 – 73

    M8,M10

    20

    2.0

    M6

    25

    1300 N

    04027

    MXD080

    75 – 80

    2 ½”

    65

    M8,M10

    20

    2.0

    M6

    25

    1300 N

    04507

    MXD086

    82 – 86

    M8,M10

    20

    2.0

    M6

    25

    1300 N

    04028

    MXD091

    89 – 91

    3”

    80

    M8,M10

    20

    2.0

    M6

    25

    1300 N

    04029

    MXD103

    95 – 103

    M8,M10

    23

    2.5

    M6

    25

    1300 N

    04508

    MXD116

    108-116

    4”

    100

    M8,M10

    23

    2.5

    M8

    25

    2200 N
