Features:

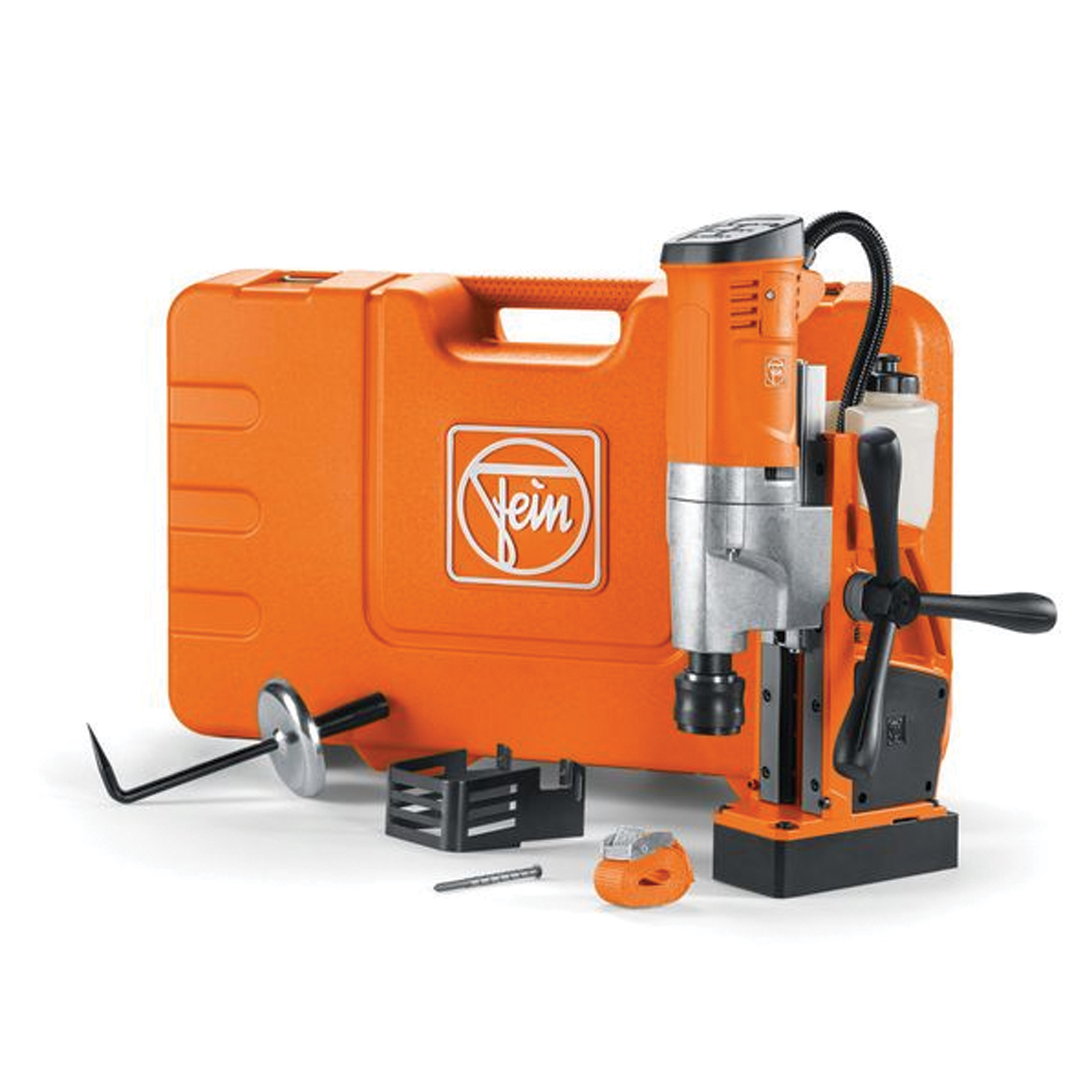

The KBU 35-2 QW delivers a perfect power-to-weight ratio thanks to the compact, weight-optimised design and the Fein 1100-watt high-power motor with tacho electronics for high-speed stability for reliable and economical drilling.
With clockwise and anticlockwise rotation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
Compact and small machine with mechanical 2-speed gearbox, the high spped setting makes the machine ideal for twist drilling.
The control panel on the KBU 35-2 QW offers a simple operating concept which avoids any mix-ups because the control can be clearly seen by the operator at all times.
Speed saving "memory function" means that the previous application can be retrieved instantly allowing the operator to switch quickly between various applications.
Extremely resilient construction thanks to sturdy machine design with swivel-mounted motor cable protection hose.
The magnetic holding force display helps the operator to safely position the machine and indicates that the magnet has the required holding force prior to drilling.
- High magnetic holding force thanks to a 2-coil magnet which is just 70 mm wide.
- Tilt sensor in the magnet shuts off of the motor should the magnet move.
- Additional magnetic switch is situated on the drill jig as well as on the motor.
- Integrated coolant tank delivers cutting fluid directly to the core of the cutters ensuring the maximum cutter life.
- In case of obstructions, the feed handwheel can quickly be moved from one side of the machine to the other.
-
Personal safety switch.
Specification:
Input: 1,010 W
Output: 550 W
No load Speed: 550 – 1700rpm
Load Speed: 370 – 1140rpm
Core drill holder: 3/4 in Weldon
HSS core drill max. Ø35 mm
Core drill, drilling depth max: 50 mm
Twist drill max. Ø16 mm
Tapping: M 14
Countersinking max. Ø 31 mm
Reaming max. Ø16 mm
Changing the core bit: Tool-free
Stroke:135 mm
Total stroke range: 260 mm
Magnetic holding power: 9,500 N
Magnetic foot dimensions: 186 x 70 mm
Cable with plug: 4 m
Weight according to EPTA: 11.10 kg
Sound pressure level LpA: 83,2 dB
Uncertainty of measured value KpA: 5 dB
Sound power level LWA: 96,2 dB
Uncertainty of measured value KWA: 5 dB
Sound peak value LpCpeak: 96,8 dB
Uncertainty of measured value KpCpeak: 5 dB
Vibration value 1 αhv 3-way αh,D <2,5 m/s²
Uncertainty of measured value Kα:1,5 m/s²
Included as Standard: Coolant tank, Lashing strap, Swarf hook, Centring pin, Guard and Operating manuals.
