Fein KBU 35-PQW 35mm Universal Magnetic Core Drill

Manufacturer: Fein

• The Fein KBU35-PQW Universal magnetic core drill is a small compact but yet extremely powerful magnetic core drill machine which features clockwise and anticlockwise rotation for core drilling, tapping, countersinking and reaming. The permanent magnet ensures maximum safety whilst working at heights, making it the ideal machine for working on construction sites or in the workshop.




  Read more

  Features:

  The permanent magnet on the KBU35 -PQW not only ensures extremely safe working at heights but unlike electromagnets it can remain attached to the work piece for extended periods of time without the fear of the magnet overheating and eventually burning out.

  A compact and lightweight machine with extremely high torque for continuous working thanks to the Fein high-powered 1010-watt motor with tacho electronics.

  With clockwise and anticlockwise rotation, electronic speed setting and a 260 mm stroke range, this is a truly universal machine for core drilling, twist drilling, tapping, countersinking and reaming.

  • Extra narrow permanent magnet only 70mm wide with magnetic bias and a tilt sensor which will shut off of the motor should the magnet move during drilling applications.

  When the permanent magnet is fully activated, the magnetic holding force display helps the operator to safely position the machine and then indicates that the magnet has the required holding force prior to drilling.

  Simple operating concept, the control panel on the KBU 35-PQW is positioned at the top of the motor and is fully visible to the operator at all times, thus avoiding any possible mix-ups when using the machine.

  Speed saving "memory function" means that the previous application can be retrieved instantly allowing the operator to switch quickly between various applications.

  • Integrated coolant tank delivers cutting fluid directly to the core of the cutters ensuring the maximum cutter life.
  • In case of obstructions, the feed handwheel can quickly be moved from one side of the machine to the other.

  Extremely resilient construction thanks to sturdy machine design with swivel-mounted motor cable protection hose.

  Specification:

  Input: 1010 Watt

  Output: 550 Watt

  Core drill holder: 3/4" Weldon.

  Speed, full load: 130-520 rpm

  HSS core drill max. Ø35 mm

  Core drill, drilling depth maximum: 50 mm.

  Twist drill maximum: Ø16 mm

  Tapping: M 14

  Countersinking max. Ø 31mm.

  Reaming maximum: Ø16mm.

  Changing the core bit tool-free.

  Stroke:135 mm

  Total stroke range: 260mm.

  Magnetic holding power: 9,000 N

  Magnetic foot dimensions: 195 x 70mm

  Cable with plug: 4M

  Weight according to EPTA: 12.50 kg

  Sound pressure level LpA: 82,3 dB

  Uncertainty of measured value KpA: 5 dB

  Sound power level LWA: 95,3 dB

  Uncertainty of measured value KWA: 5 dB

  Sound peak value LpCpeak: 95,9 dB

  Uncertainty of measured value KpCpeak: 5 dB

  Vibration value 1 αhv 3-way: <2.5 m/s²

  Uncertainty of measured value Kα: 1.5 m/s²

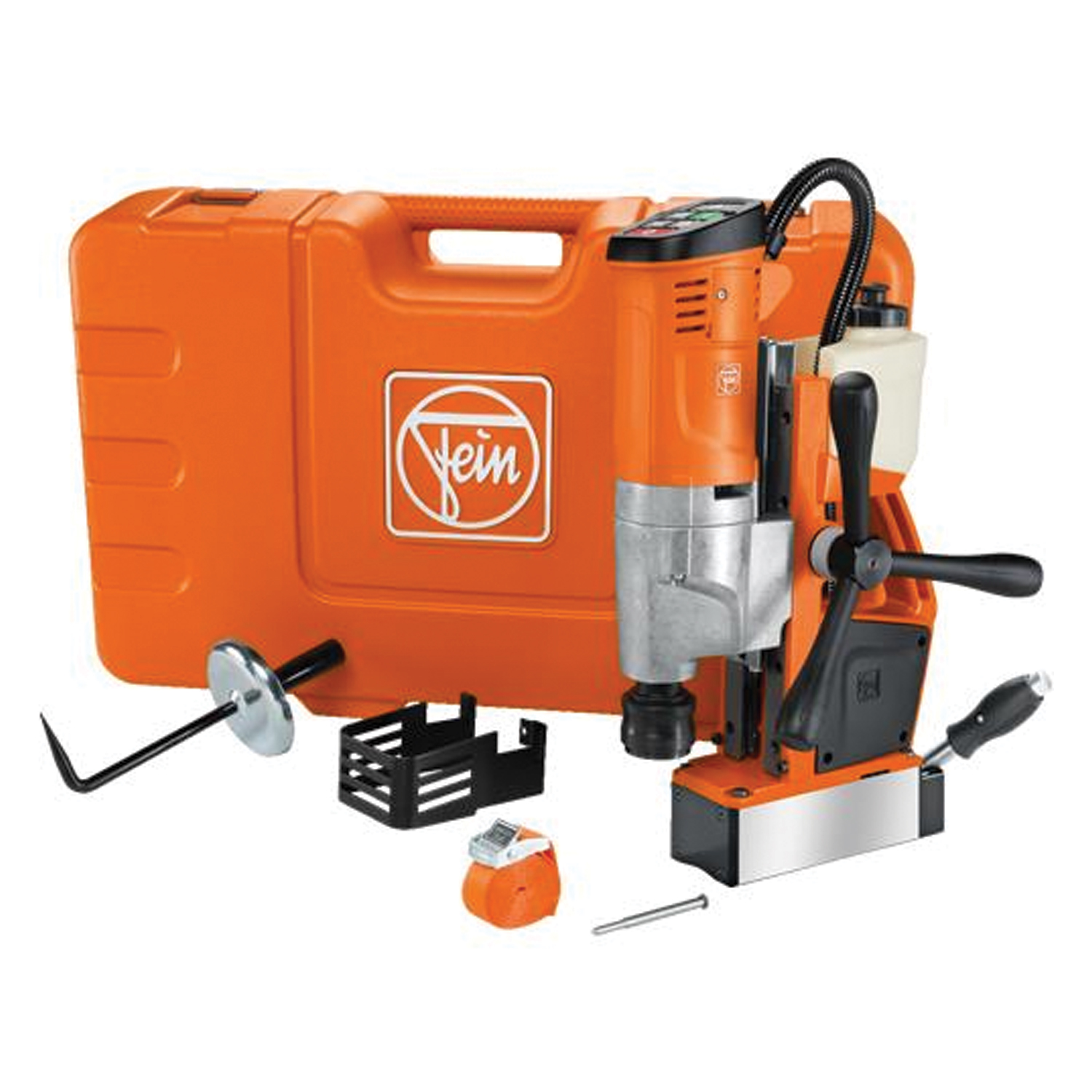

  Included as Standard: Coolant tank, Lashing strap, Swarf hook, Centring pin diameter of 6.35 x 100 mm, Guard and Operating manuals.
