Festool 712257 VAC SYS Vacuum Pump & Clamping Unit

Calculating latest stock
Code: 34752
Manufacturers Part No: 712257
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
Black Friday – Save 10%
Was £999.00Now £899.10 each
exc. VAT
Was £1,198.80Now £1,078.92 each
inc. VAT
Add to order

Product Overview

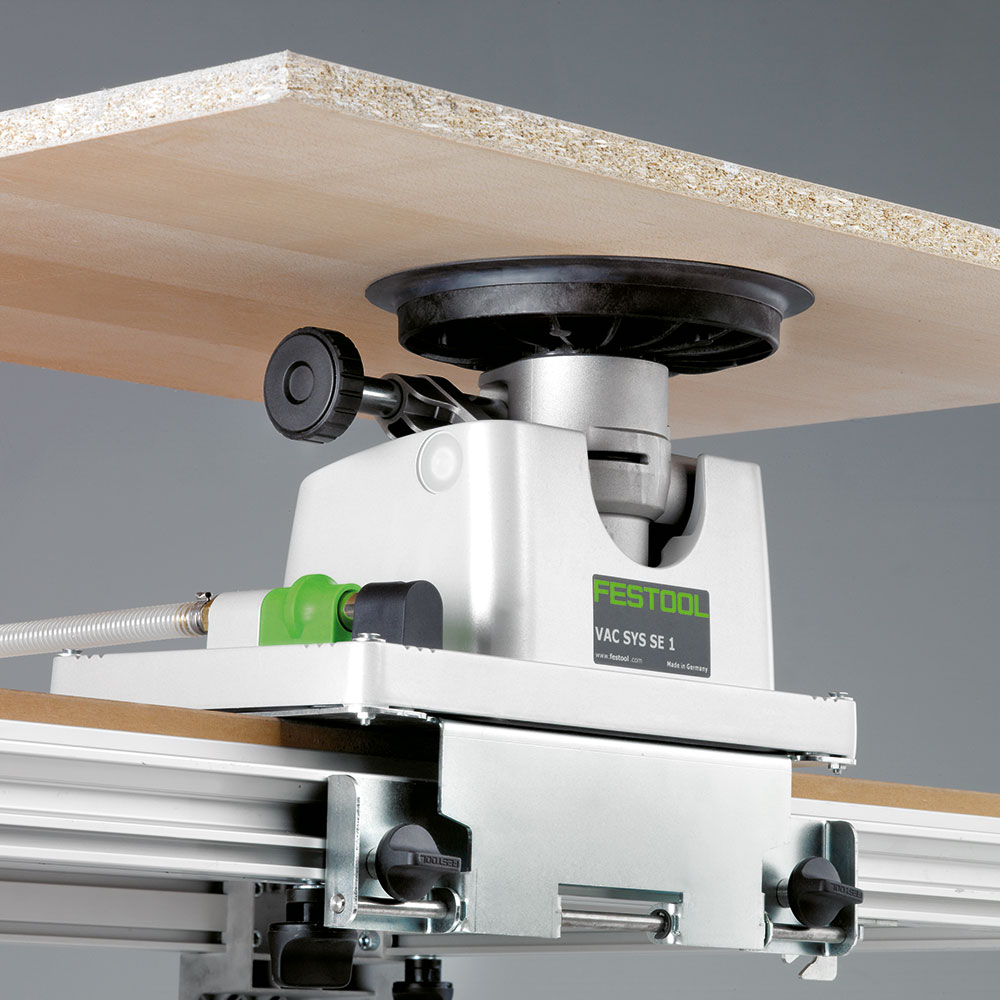

  • Innovative vacuum clamping system; clamping without limits and leaving no traces.


    Workpieces can be turned up to 360° and swivelled up to 90°.

    Sensitive surfaces can be clamped without damaging them.

    Workpieces up to 30 kg per clamping unit are clamped firmly and safely.

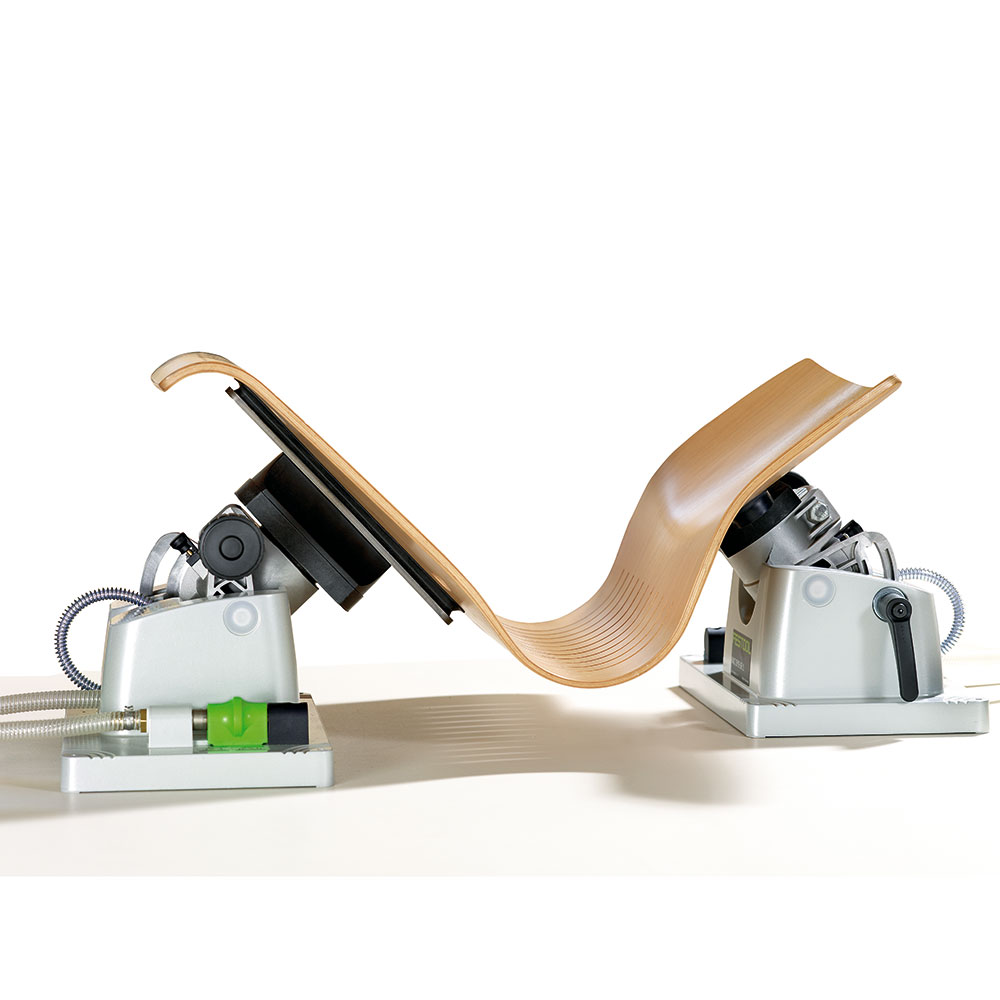

    Two or more clamping units can be used for large workpieces.

    Very fast changing of workpiece clamping.

    Vacuum plates can be changed without tools.

    Simple release of the vacuum plate using the foot valve.

    Ideal for use when milling, sanding, planing, sawing, smoothing, filling and painting.

    Use in the workshop or during installation.

    VAC SYS Set SE – only available in 240v.

    712257 Specification:

    Power consumption at 50 Hz: 160 – 200 W

    Power consumption at 60 Hz: 200 – 230 W

    Pump capacity at 50 Hz: 2.7 m³/h

    Pump capacity at 60 Hz: 3.5 m³/h

    Minimum vacuum: ≥ 81%/ ≥ 810 mbar

    Weight: 8.0 kg

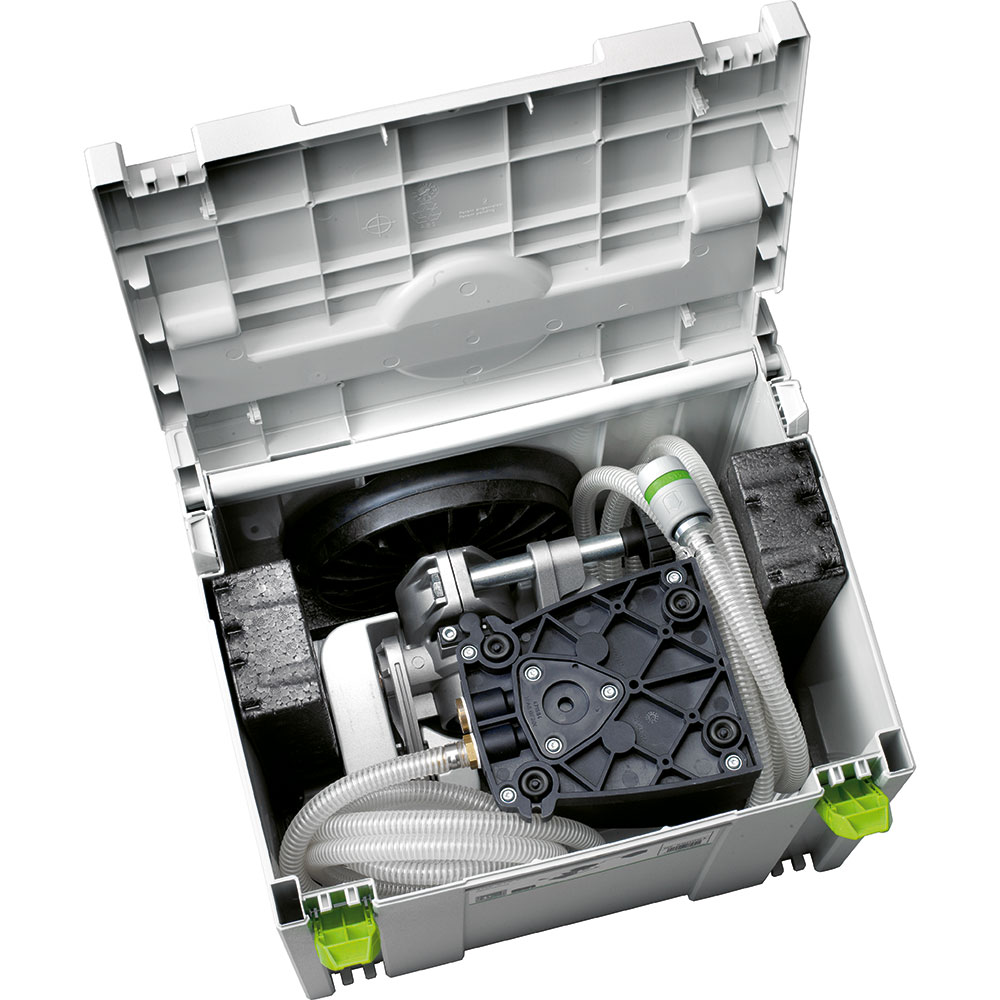

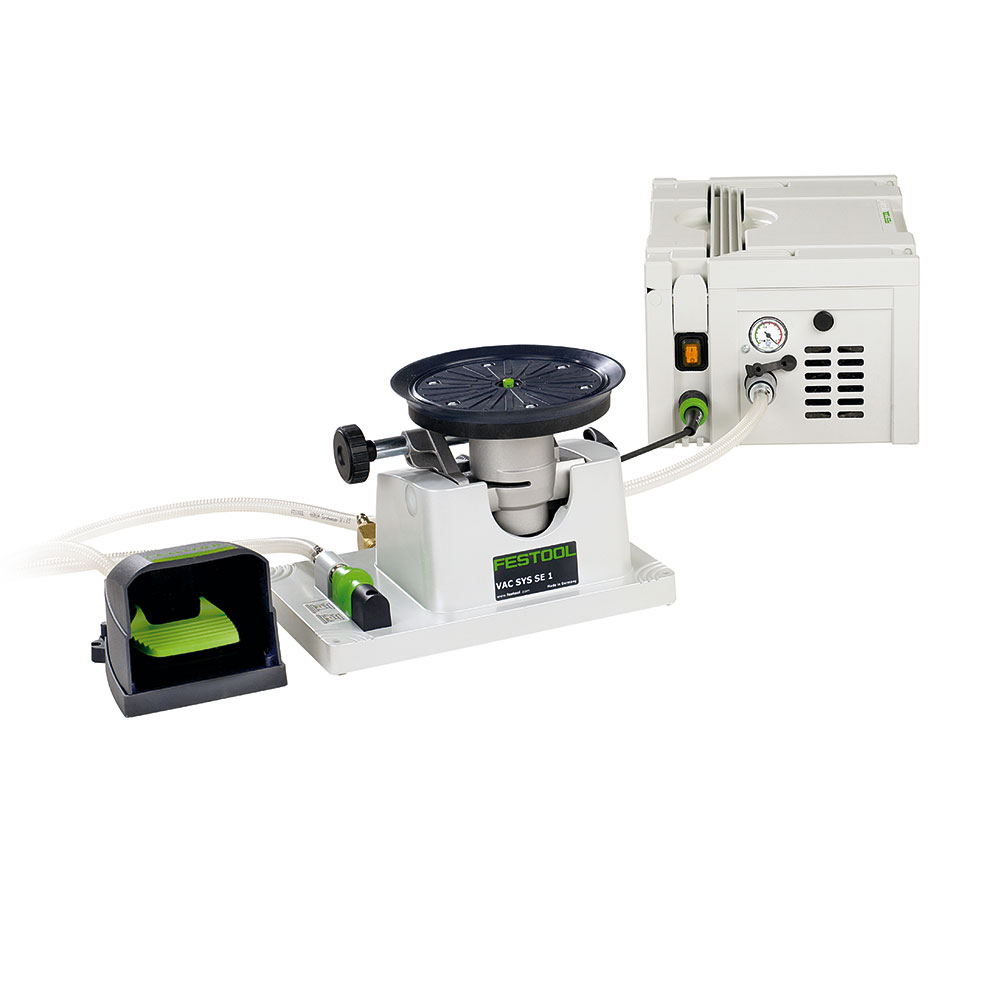

    Included as Standard: Vacuum Pump VAC SYS VP, Vacuum Clamping Unit VAC SYS SE1, Vacuum Pad VAC SYS VT D 215, Vacuum Hose & Foot Valve.

    3 Years Warranty on all Festool Power Tools when registered.
