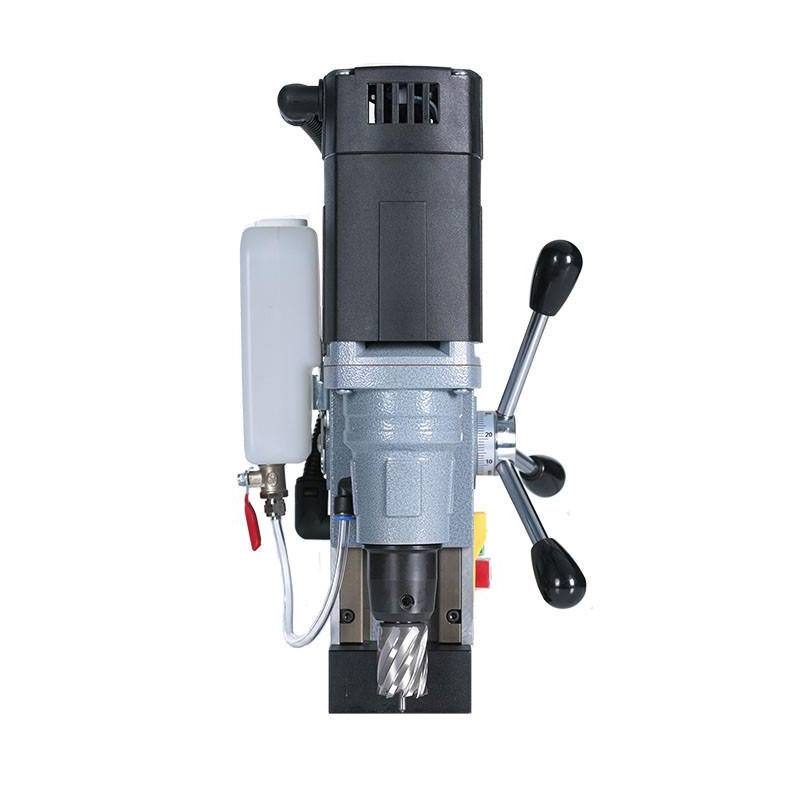

HMT Max 30 Magnetic Drilling Machine
The Max 30 magnetic drill weighs just 8.5kg, making it probably the lightest and most compact magnetic drill available in its class.
With its powerful 900 Watt high speed motor, the Max 30 is perfectly optimised for broaching the most common structural sizes of 14-30mm, particularly when used with CarbideMax TCT Cutters.
The Max-30 also has an exceptional stroke compared to other machines in its class, capable of taking cutters or magnetic drill bits up to 70mm long.
Each machine is supplied in a robust plastic site carrying case with foam inserts to help protect the machine and accessories.
Accessory pack contains a removable internal coolant system bottle of broaching lubricant, removable metal guard, safety chain, 4 hex keys.
Annular Hole Cutters: 12 – 30mmø
Twist Drill Range: 3 – 13mm
Height Adjustable: 293 – 383mm
Stroke: 90 mm
Magnet dimensions (L X W) 160 x 80mm
Magnetic Force: 1200 kg
Motor Power: 900 W
No load speed: 775 RPM
Arbor 19,05 mm (¾”) Weldon
