Leica Digitex 100t Signal Transmitter Generator

£465.00 exc. VAT
£558.00 inc. VAT
Calculating latest stock
LEICA DIGITEX 100T SIGNAL TRANSMITTER
Code: 34222
Part No: 100TLEI
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
0 in stock
Out of stock
Nottingham
0 in stock
Out of stock
Burton
0 in stock
Out of stock
Mansfield
0 in stock
Out of stock
Chesterfield
0 in stock
Out of stock
£465.00 each
exc. VAT
£558.00 each
inc. VAT
Add to order

Order with 0% Finance

Tell me more

HireBuy

Order on 0% Finance

HireBuy is a convenient and more affordable method of payment. Don’t compromise your next tool purchase, when you can spread the cost with no hidden charges or interest.

Available on all orders over £300

Pay it back in 3-12 months

0% interest & no hidden charges

Apply for finance

Product Overview

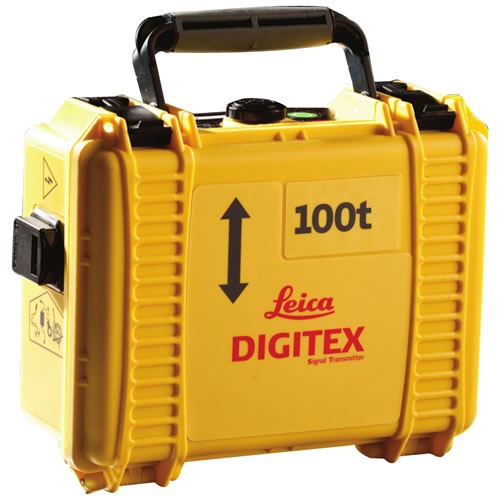

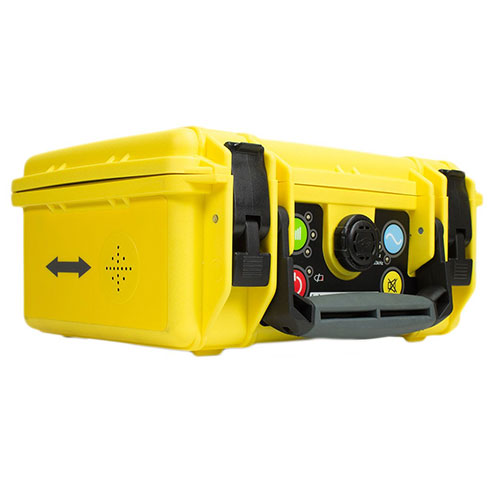

  • The Leica Digitex 100t is a dual frequency signal transmitter. Designed for use with a cable locator for more accurate detection and depth of buried cable and pipe utilities, prior to excavation.


    Features:

    Up to 60% of buried utilities could be missed if the cable locator is not used in conjunction with a signal transmitter, due to some buried cables and pipes not carrying a detectable signal.

    Trace utilities over a greater distance and depths.

    Improve utility detection in areas of high signal interference.

    Four adjustable output levels, delivering a maximum output level of 1 watt.

    Durable waterproof design, environmental protection rating of IP65.

    Robust, compact and lightweight design engineered for tough site conditions.

    Choice of 3 tracing signals:

    33kHz everyday site use, generally accepted as an industry standard.

    8kHz long tracing and reduced cross coupling.

    Mixed 8kHz and 33kHz (connection mode).

    Default output frequency of 33kHz for ease of use.

    Externally located clear, audio visual controls ensuring a robust waterproof design.

    Built-in test function allowing operators to test the hardware and software functionality before use.

    Specification:

    Operating Transmission Frequencies: 8kHz, 33kHz & Mixed 8/33kHz

    Output Power: 4 Levels

    Induction: Up to 1w Max

    Battery Type: 4 x D Alkaline

    Battery Life: 30hrs intermittent use

    Dimensions: 180 x 260 x 280mm

    Weight: 2.4kg
