Leica Lino L2P5-1 Point & Cross Laser c/w Rechargeable Batt

Calculating latest stock
Code: 16127
Part No: L2P51LEI
Order For Delivery
Select the required delivery time and method at checkout.
Allow 1-2 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
1 in stock
Out of stock
0 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
£299.00 each
exc. VAT
£358.80 each
inc. VAT
Add to order

Product Overview

Manufacturer: Leica

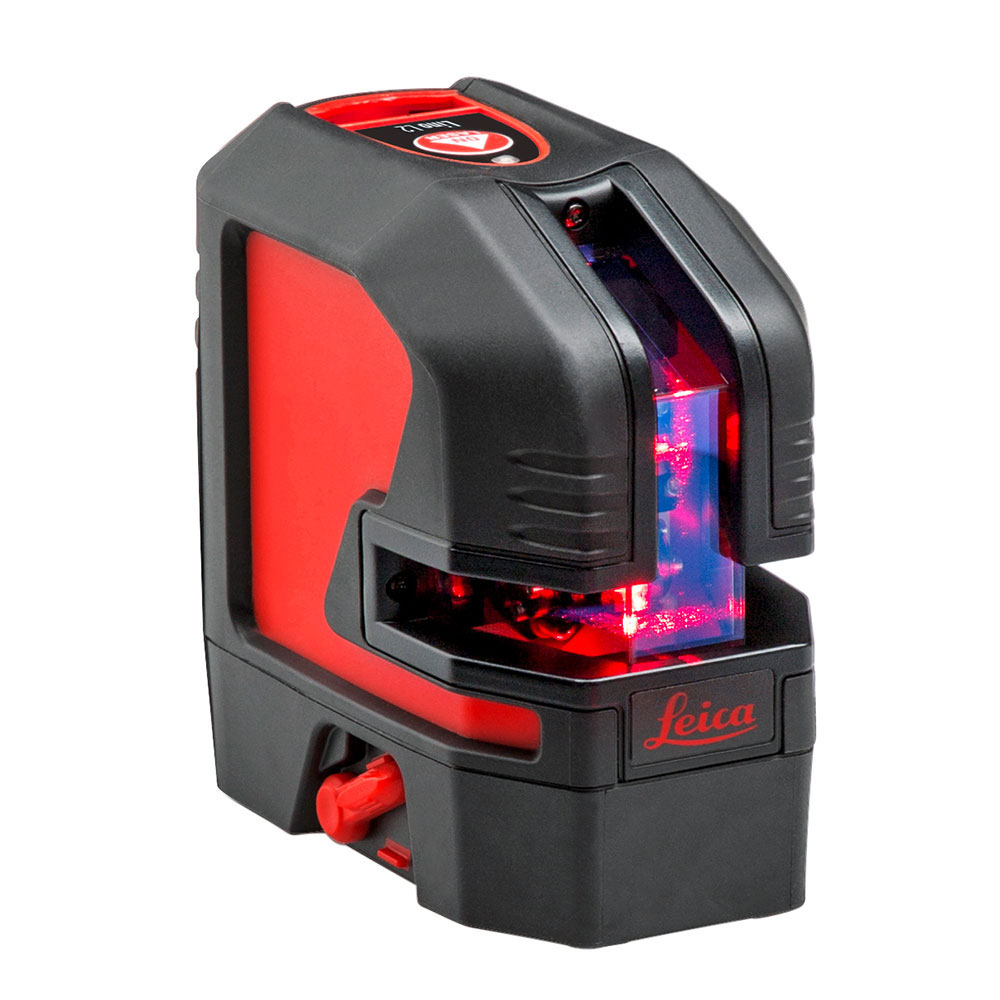

  • The Leica Lino L2P5 combines all the advantages of the Lino dot and line lasers. It has four points and two lines which are exactly at right angles to one another. With the Leica Lino L2P5 you are well equipped for any alignment or levelling task!


    Outstanding Laser Visibility:

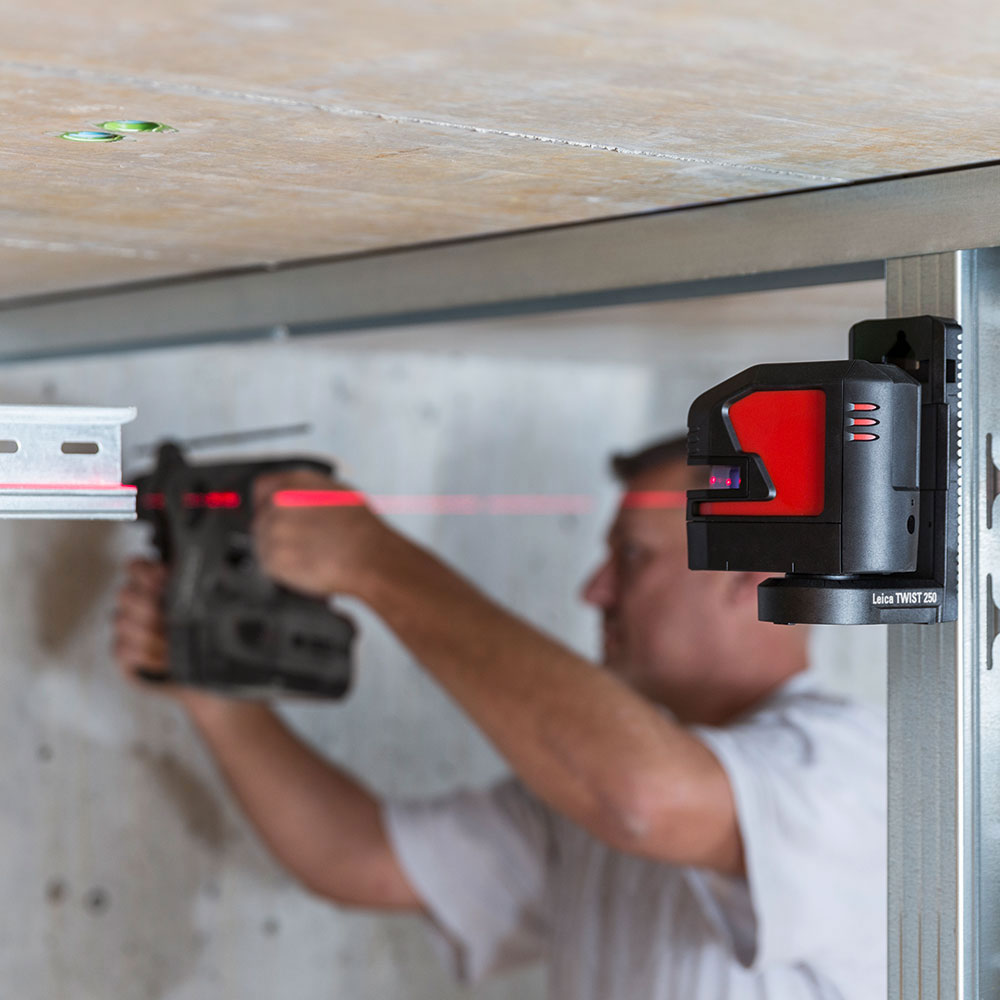

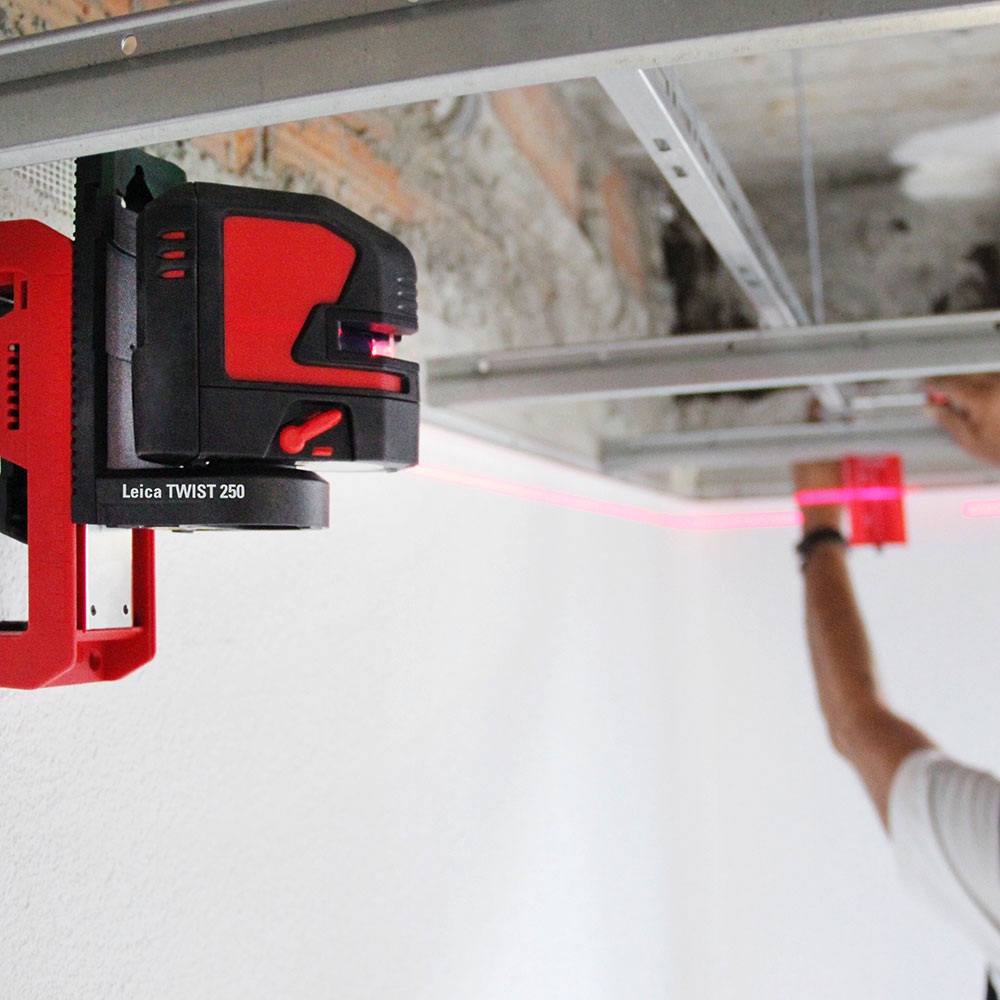

    The high-precision optics of the Leica Lino L2P5 project very bright and clearly visible laser lines and dots up to 25 meters. This Lino is ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations as well as plumb point projection, setting out or transferring measured points.


    The Leica Lino L2P5 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.

    Smart Adaptor:

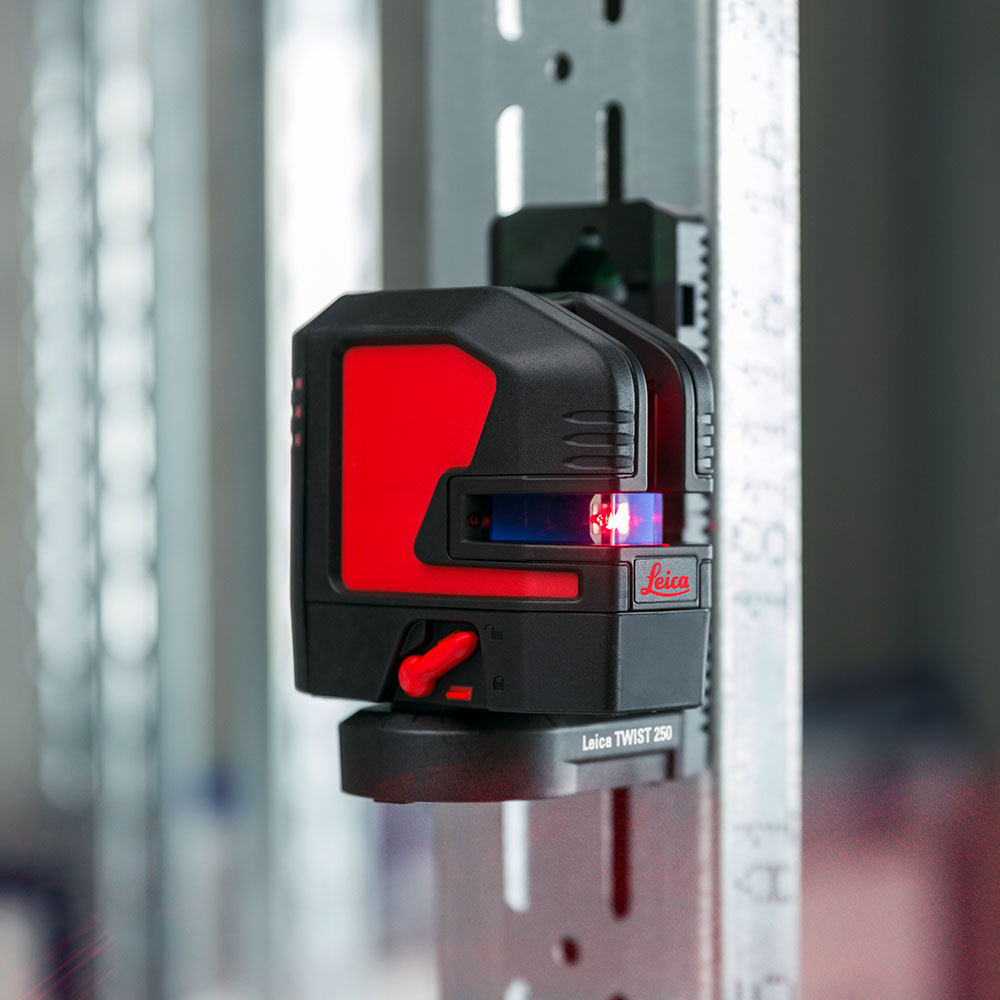

    TWIST 250 magnetic smart adaptor allows for quick and precise positioning within U-profiles or to edges. Attach to any vertical surface with a screw or nail using the fixing hole, cable tie or simply utilise the strong rear magnets on iron pipes or any other suitable metal surfaces.

    Triple Power Concept:

    The Leica Lino L2P5’s triple power concept ensures an uninterrupted workflow. You can power your laser by using the rechargeable Li-ion battery for up to 44 hours on one charge. Alternatively, you can use traditional alkaline batteries or simply plug in to the mains using the charger lead.

    Rugged Design:

    The Leica Lino L2P5 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs – supplied in a hard case allowing you to store all accessories safely.


    Max. Range: 25m

    Range with Receiver: 80m

    Levelling Accuracy: ± 0.2mm

    Self-Levelling Range: ± 4°

    Number of Laser Dots: 4

    Number of Laser Lines: 2

    Beam Direction: Vertical, Horizontal, Up, Down, Right & Left

    Laser Type:  635Nm, Laser Class II

    Battery Type: Li-ion Rechargeable or AA

    IP54 Splash Water/Dust Proof Protection

    Tripod Thread: ¼”

    Weight: 530g

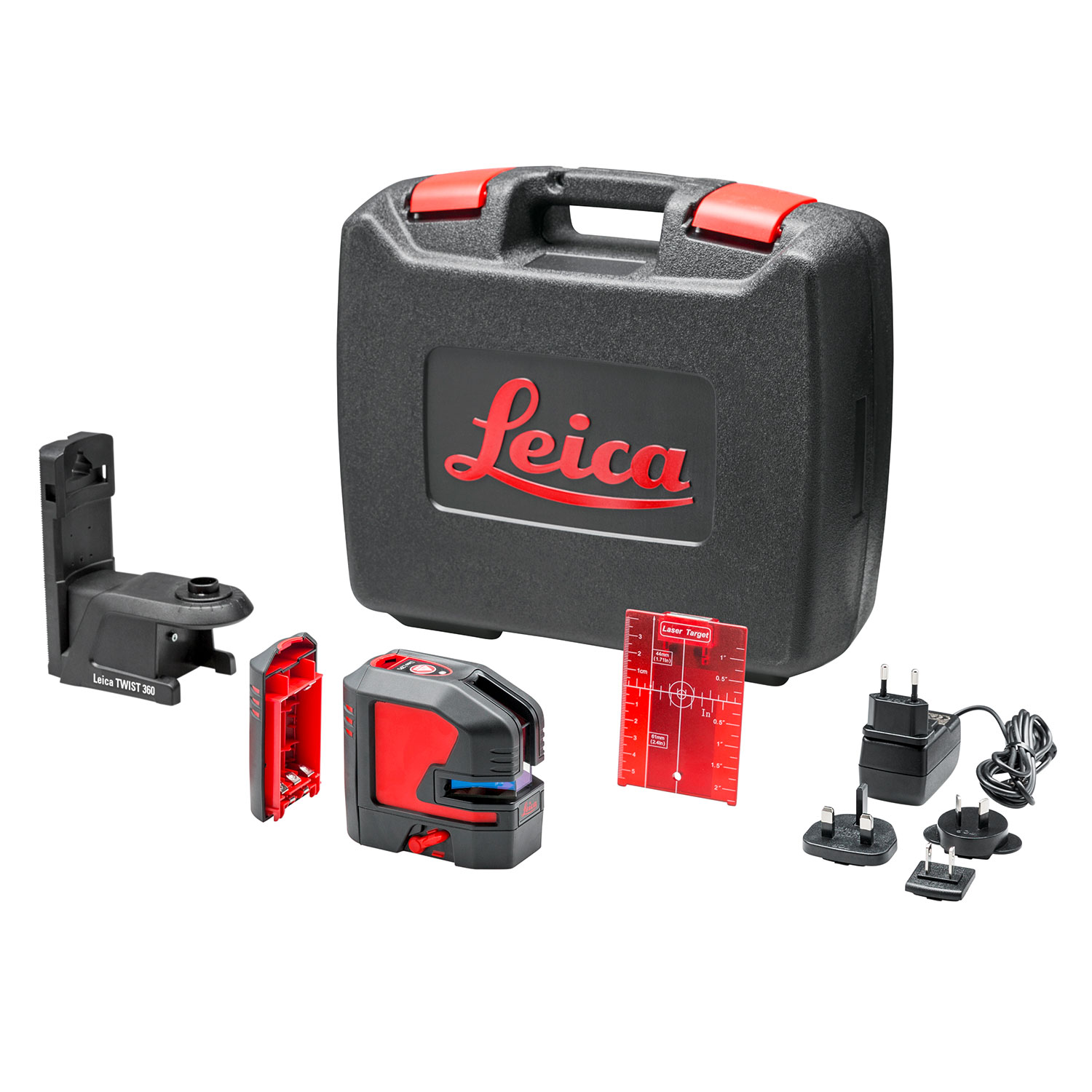

    Included as Standard: TWIST 250 Adaptor, Li-ion Battery Pack, Alkaline Battery Tray, Target Plate, Charger & Case.

    3 Years Warranty on all Leica Measuring Equipment when registered.
