Leica ML180 Remote Control 90º Layout Laser Level Kit

£999.00 exc. VAT
£1,198.80 inc. VAT
Calculating latest stock

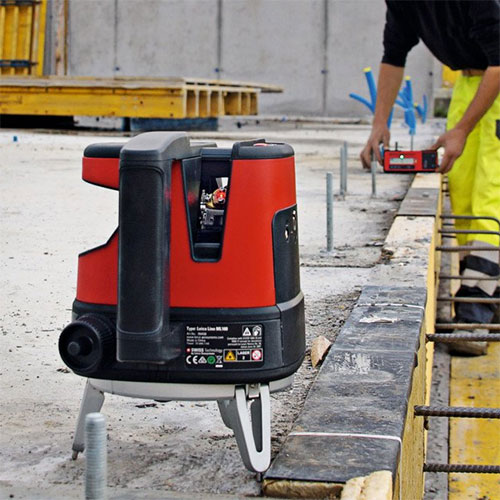

LINO ML180 REMOTE CONTROL LINE LASER
Code: 34191
Part No: ML180LEI
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
0 in stock
Out of stock
Nottingham
0 in stock
Out of stock
Burton
0 in stock
Out of stock
Mansfield
0 in stock
Out of stock
Chesterfield
0 in stock
Out of stock
£999.00 each
exc. VAT
£1,198.80 each
inc. VAT
Add to order

Order with 0% Finance

Tell me more

HireBuy

Order on 0% Finance

HireBuy is a convenient and more affordable method of payment. Don’t compromise your next tool purchase, when you can spread the cost with no hidden charges or interest.

Available on all orders over £300

Pay it back in 3-12 months

0% interest & no hidden charges

Apply for finance

Product Overview

  • Leica ML180 is a 90° cross line laser level. It has four laser links, four cross points and a plumb down point that is conveniently set to the outside of the tool for easy access.


    Features:

    Remote Adjustment:

    The XCR catch laser receiver offers more functionality than a standard receiver for line lasers or for rotation lasers. The receiver beeps to indicate that you are close to or directly in line with the laser beam. The big difference here is that the XCR Catch operates like a remote control and automatically catches the beam with the Smart Targeting function. By holding down the right and left arrow buttons you can spin the ML180 on a horizontal axis of +/- 4 degrees.

    Precise Layouts at Long Distances:

    The electronic self-levelling automatically compensates for the tool being slightly out of level. This precision eliminates costly errors due to incorrect line projection, which is especially important at longer distances.

    Battery Life:

    The Leica Lino ML 180 can be used with a rechargeable battery pack or alkaline batteries. This provides maximum flexibility and ensures that the Leica Lino ML180 is always ready for use. The tool can also be used while being charged.

    Plumb Dot Positioning:

    Using the plumb dot, you can set up the Leica Lino over a desired point. The plumb beam is offset to the corner of the tool. So the Leica Lino ML180 can be quickly and easily set up over markings, including those close to walls.

    The Smart XCR Catch – Laser Receiver and Remote Control:

    The XCR Catch features a large reception window located on either side of the laser receiver so laser lines can be detected very quickly. The receiver display is on both sides of the device so that the position of the laser line can be read from different working positions. The XCR Catch comes with a versatile bracket. The bracket allows the tool to be fixed in multiple positions on various building elements. It also has a quick-adjustment feature.

    Tough and easy to clean – IP65:

    The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem. Furthermore the laser distance meter can be used in all weather conditions, being dust-proof and water jet protected.

    Specification:

    Measuring Range: Up to 100M

    Remote Control Range: Up to 50M

    Levelling Accuracy: ± 0.7 mm @ 10 m

    Self-levelling range: +/- 5°

    Typical Measuring Accuracy: ± 1 mm

    Measuring Units: m, ft, in

    Water Jet Protection & Dust-Tight : IP65

    Batteries: 3 x AA

    Dimensions (L x W x D): 190.5 × 75.5 × 29.5 mm

    Weight: 0.31kg

    Included as Standard: Multi Line Laser, XCR Catch with Clamp, 3 x AA Batteries, Rechargeable NiMH Battery Pack, International Charging Device with Four Plugs, Battery Holder for Alkaline Batteries, Small and Large Target Plates & Red Laser Glasses.

    3 Years Warranty on all Leica Measuring Equipment when registered.
