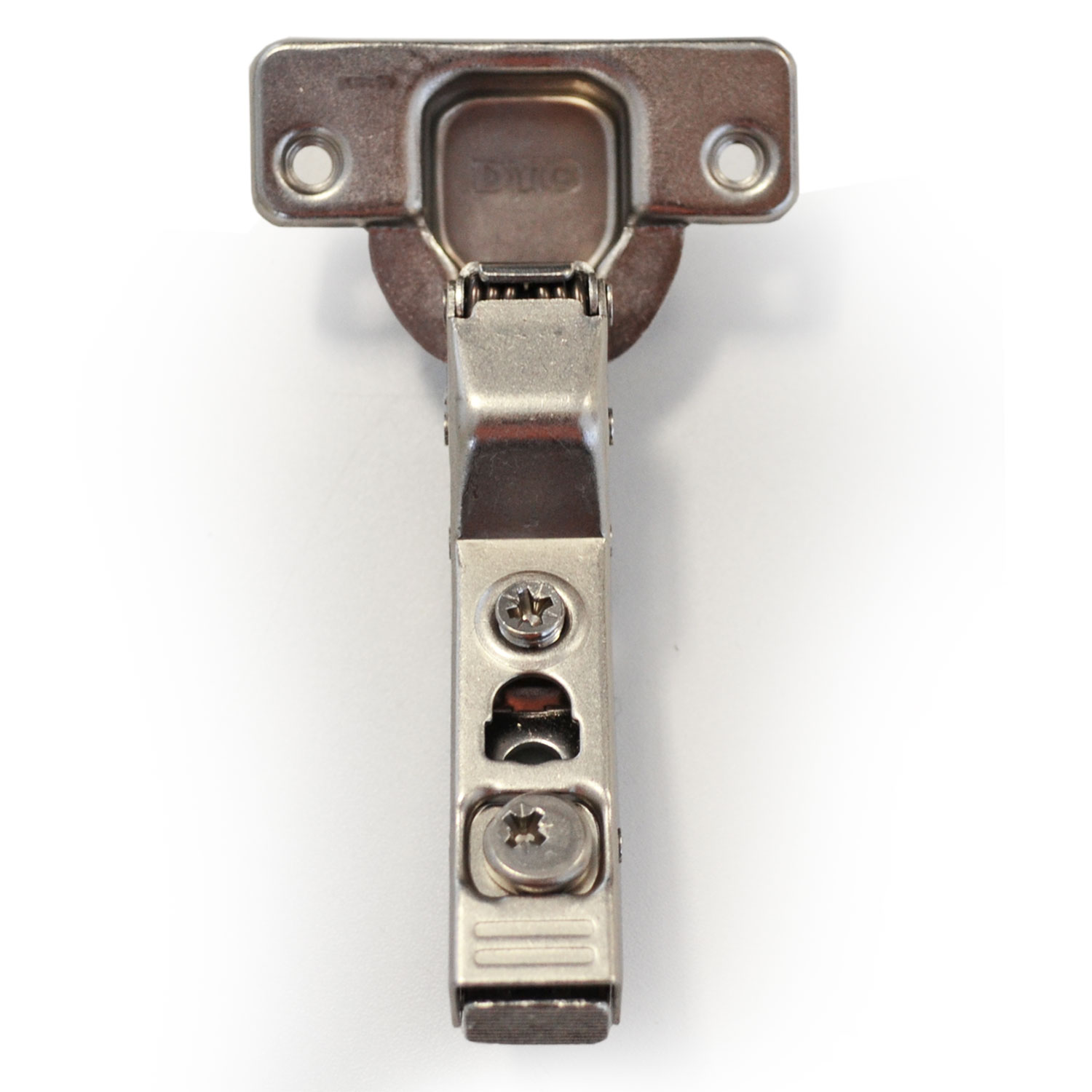

Maxitek Clip-On 110° Soft Close Concealed Hinges – SC Range
Maxitek SC Range of sprung soft close concealed hinges for use with clip-on soft close mounting plates for easy and convenient assembly and disassembly.
Opening Angle: 110 °
Depth of Hinge Cup: 11.5mm
Diameter of Hinge Cup: 35mm
Range of doors thickness: 16-26mm
For use with the Maxitek SC Range of Soft Close Concealed Hinge Mounting Plates – as follows depending on type and carcass size:

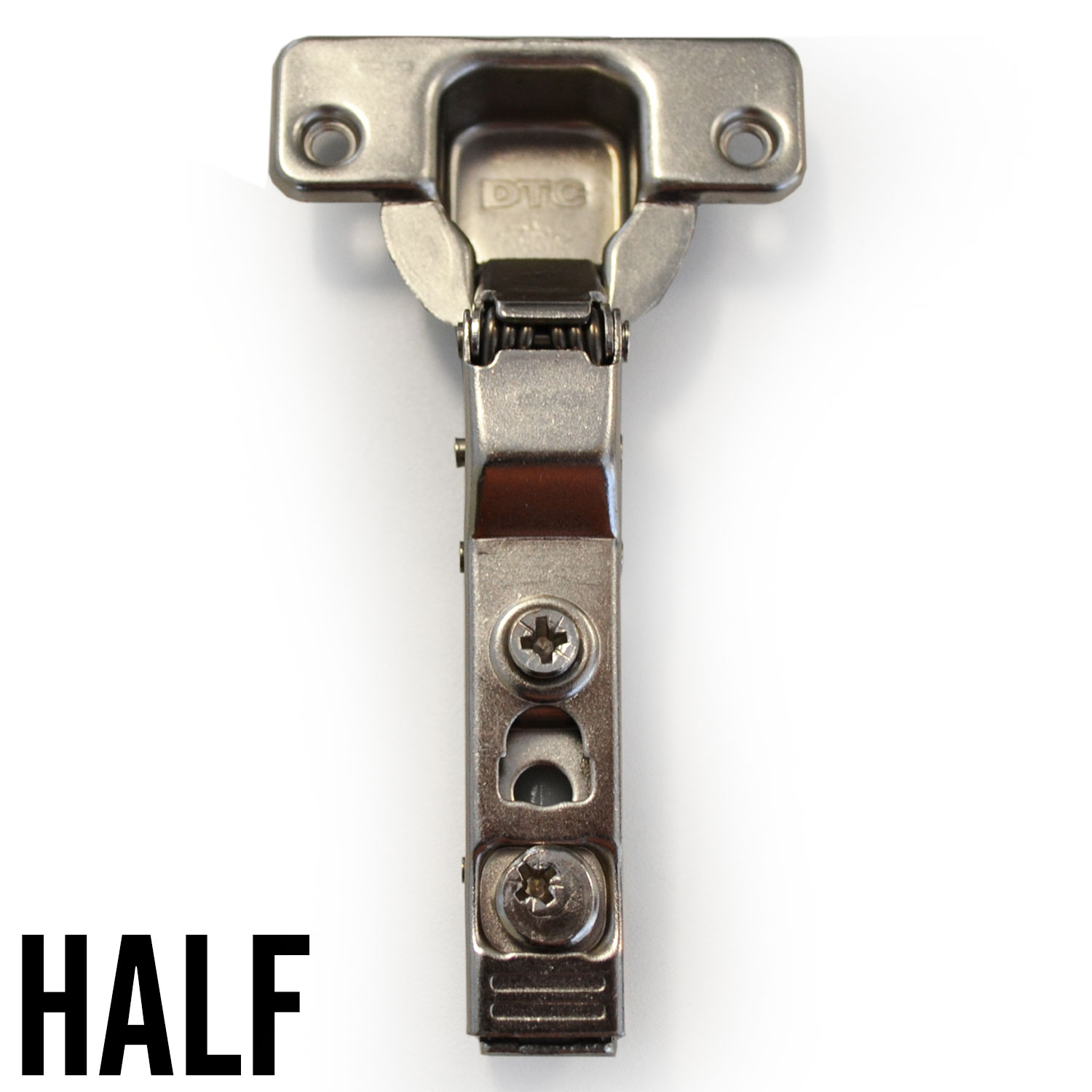

Full Overlay & Half Overlay:
Use 0mm mounting plate for 18mm carcass.
Use 2mm mounting plate for 15mm carcass.
Use 2mm mounting plate for 18 & 15mm carcass.
