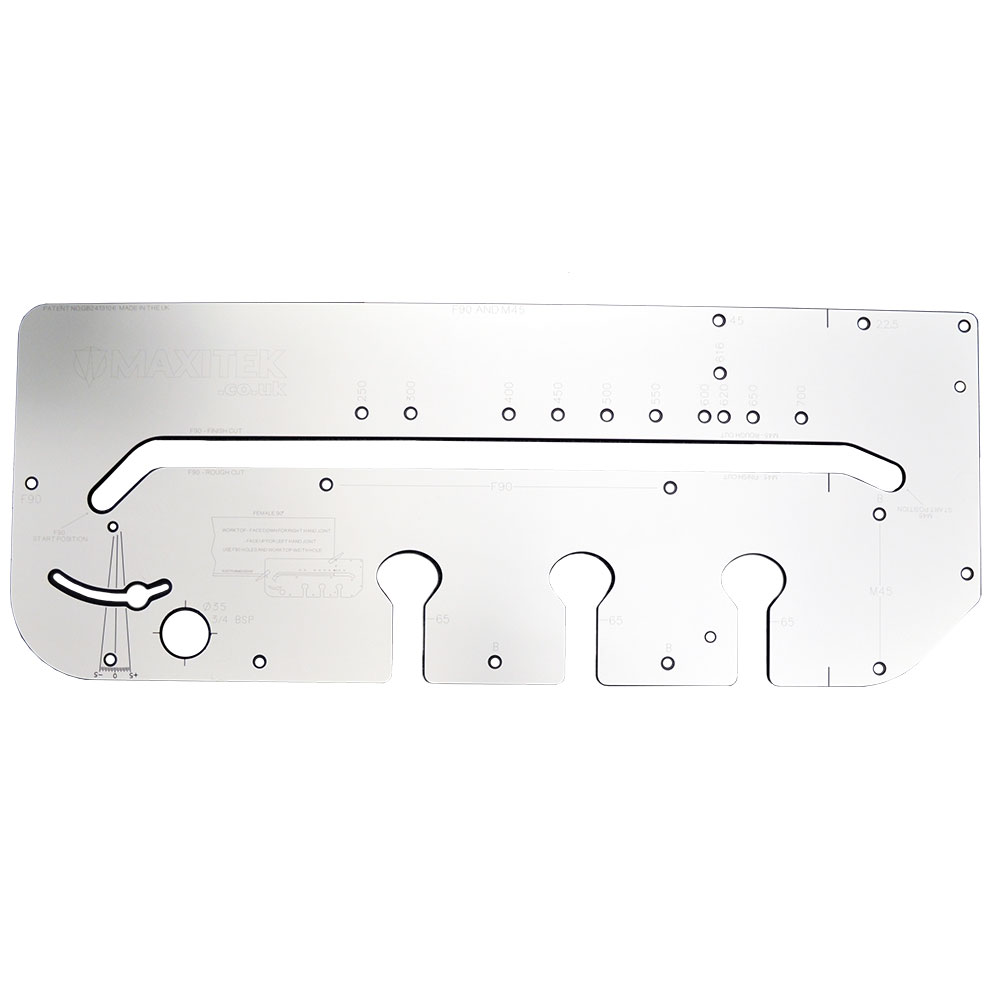

Product Overview

  • The Contract Worktop Jig has the facility to cut 90 degree joints on worktops up to 700mm wide.


    Functions:

    90 degree left / right hand joints.

    Peninsular and corner joints.

    Chamfered corners.

    90, 45 and 22.5 degree mitre cutting facility.

    Cabinet door hinge recesses (18 mm carcass).

    Four different radii (20, 40, 60 and 100 mm).

    Hole for tap fixings (3/4" BSP).

    Cut worktops with widths of: 300, 400, 450, 500, 550, 600, 616, 650mm and 700mm.

    In addition, essential instructions and diagrams are engraved on the jig so there is very little need to refer to the manual.

    All our professional routing jigs are made of 12mm laboratory grade high pressure laminate on high tolerance CNC machines with the latest CAD/CAM software.

    The jig includes four nylon locating pins, a full set of instructions with annotated diagrams and comes boxed as standard.

    Additional equipment required to use with this jig:

    12.7mm or 1/2" diameter straight cutter

    30mm template guide bush
