Maxitek Master Staircase Jig
Order with 0% FinanceTell me more
Order on 0% Finance
HireBuy is a convenient and more affordable method of payment. Don’t compromise your next tool purchase, when you can spread the cost with no hidden charges or interest.
Available on all orders over £300
Pay it back in 3-12 months
0% interest & no hidden chargesApply for finance

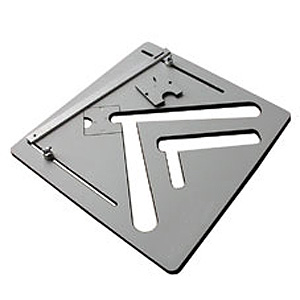

This NEW Stair Jig is made of 12mm laboratory grade High Pressure Laminate with a life time guarantee, never to warp. All our professional routing jigs are produced on high tolerance CNC machines with the latest CAD/CAM software.
The design of this stair jig is unique compared to others currently on the market:
Only use a standard 30mm Dia bush to achieve the various tread and nose sizes .
This will eliminate potential incompatibility problems – no more special bushes for your router!
For standard staircase following cutters should be used (all cutters required to be 95mm):
14mm diameter cutter for 22mm tread thickness
16mm diameter cutter for 25.4mm tread thickness
19mm diameter cutter for 28mm tread thickness
22mm diameter cutter for 32mm tread thickness.
For open tread staircase a 12.7mm diameter straight cutter should be used.
The jig includes a full set of instructions and comes boxed as standard.
