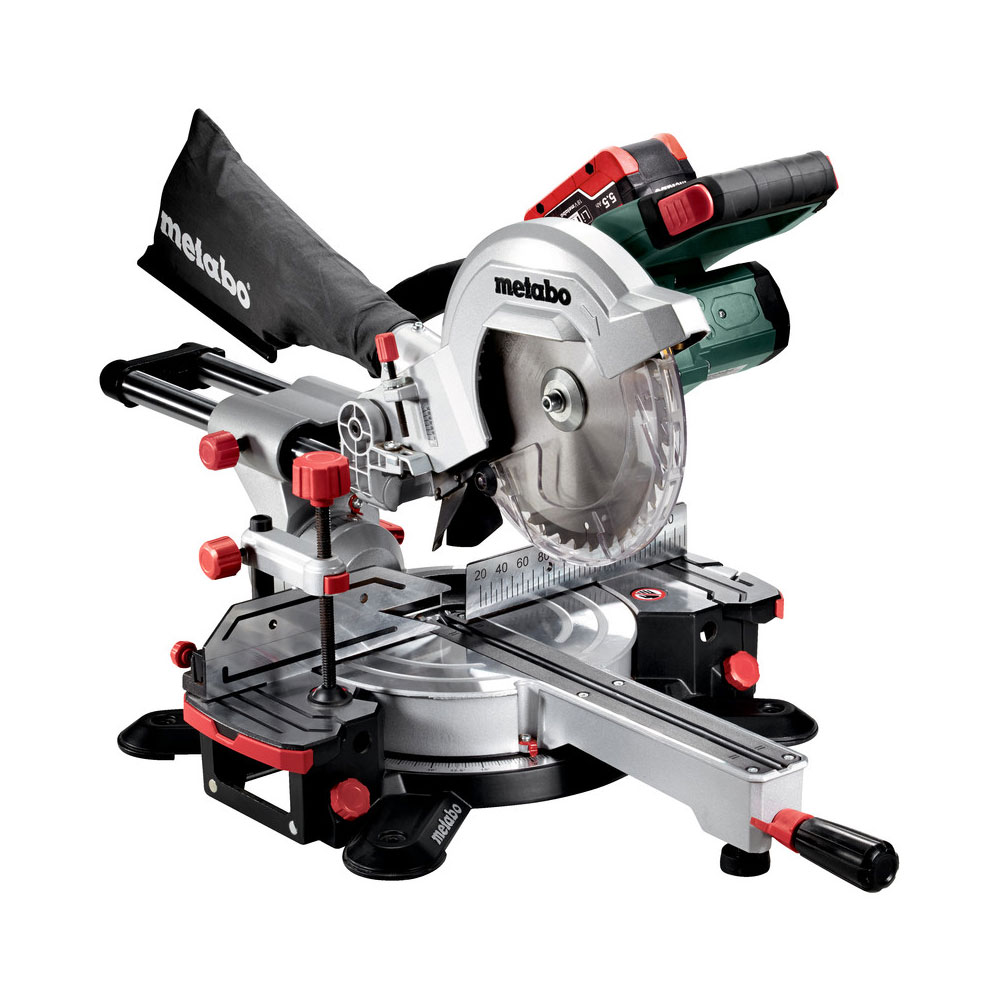

Metabo KGS18 LTX 18V 216mm Slide Mitre Saw – Body
Product Overview
-
The Metabo KGS18 LTX 18V 216mm Slide Mitre Saw is part of the 18V heavy-duty range with Ultra-M technology for ideal synchronisation and perfect communication between machine, battery pack and charger. Such efficiencies ensure maximum performance and life of both the tool and batteries.
Read more
Features:
Powerful cordless mitre saw perfect for assembly jobs with high volume of cuts.
Up to 400 cuts per battery pack charge (5.2 Ah) in 195 x 8 mm laminate.
Up to 200 cuts per battery pack charge (5.2 Ah) in 60 x 60 mm soft wood.
Sliding function for wide work pieces.
Compact light weight, suitable also for one-handed transport.
Easy transport thanks to ergonomically-designed handles and saw head lock.
Motor brake for quick stop of the saw blade in 3 seconds.
Robust die-cast aluminium design for the highest demands.
Effective internal chip and dust extraction via dust scoop and chip collection bag.
Fast and precise setting of common angles using stop points.
Cutting line laser and LED work light with energy-saving automatic shutoff.
Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath.
Sliding high rear fence profiles for safe sawing.
Material clamp for secure fixing of the work piece from the top or front.
Depth guide for easy creation of grooves.
Saw head can be inclined to the left, with additional angle range for undercuts.
All scales and operating elements are visible from the working position and can be operated intuitively.
Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required.
LiHD battery pack for ultimate performance, extremely long runtime and service life.
Battery packs with capacity display for checking the charge status.
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
Specification:
Type of battery pack: LiHD
Battery voltage: 18 V
Battery pack capacity: 2 x 5.5 Ah
Support surface: 345 x 730 mm
Maximum cutting width 90°/45: °305 / 205 mm // 12 / 8 1/16 "
Maximum cutting depth at 90°/45°: 65 / 36 mm // 2 9/16 / 1 13/32 "
Cutting capacity 90°/90°: 305 x 65 mm / 12 x 2 1/2 "
Cutting capacity 45°/45°: 205 x 36 mm / 8 1/16 x 1 13/32 "
Turntable setting left/right: 47 / 47 °
Saw blade tilt left/right: 47 / 2 °
Saw blade: 216 x 30 mm / 8 1/2 x 1.181 "
No-load speed: 4200 rpm
Max. cutting speed: 48 m/s / 157 ft/s
Weight: 13.8 kg
‘Body Only’
Included as Standard: Carbide Saw Blade, Material Clamp, Tool for Saw Blade Change, Chip Collection Bag, 2 Table Length Extensions & Length Guide.
3 Years Warranty on all Metabo Power Tools when registered.
