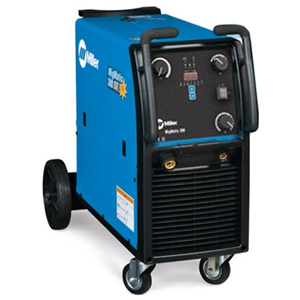

Miller Migmatic 300 Compact Mig Welder 400V 3 Phase

Calculating latest stock
MILLER MIGMATIC 300 COMPACT MIG 400V 3PH
Code: 12203
Manufacturers Part No: 029015540
Order For Delivery
Select the required delivery time and method at checkout.
Allow 4-5 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
Derby
0 in stock
Out of stock
Nottingham
0 in stock
Out of stock
Burton
0 in stock
Out of stock
Mansfield
0 in stock
Out of stock
Chesterfield
0 in stock
Out of stock
£1,507.24 each
exc. VAT
£1,808.69 each
inc. VAT
Add to order

Klarna pay in 3 available on orders £99+vat - £1200+vat

Product Overview

Manufacturer: Miller

  • The Miller Migmatic 300 is an industrial step transformer compact MIG  which offers superior welding characteristics due to the modern transformer design, excellent starting and a very stable welding arc make it suitable for a wide range of industrial applications.


    Features:

    Digital meters shows current, voltage or wire feed speed, simply choose the preferred readout by pushing the selector button.

    20 Voltage steps provide excellent control of welding arc

    2-4 Step trigger mode with gas pre flow and post flow functions when in 4 step mode. For ease of use during long welds.

    Adjustable run-in and burn back allows the user to optimize arc starts and stops thereby reducing wire stubbing or wire burning back onto the contact tip.

    Thermal protection with indicator light prevents damage from overheating due to over duty cycle or reduced airflow.

    Built in spot welder provides consistent timed welds.

    Professional 2 roll wire drive system.

    Single choke connection with optimal inductance for the most common applications.

    Factory fitted running gear and cylinder rack.

    Specification:

    Input Power: 3-Phase, 400VAC, 50Hz

    Rated Output: 300A 35% DC at 40°C

    20 Voltage steps

    Wire Feed Speed: 2-26m/min

    Dimensions (H x W x D): 825 x 471 x 1066mm

    Weight: 88 kg

    Supplied with: Ground cable, Power cord (without plug) Drive roll kit 0,8 / 1,0 mm / V-groove.

    Mig torch and Regulator sold separately to suit application.
