Optrel Liteflip & E3000X PAPR c/w 18 Hour Battery Package
During arc welding, grinding and many other dust-intensive processes, an operatives airways are constantly exposed to harmful fume, fine dust particles and often toxic gases. Wearing RPE (respiratory protection equipment) is therefore essential, no matter how well ventilated the working environment may be. The Optrel E3000X PAPR system offers the maximum in protection, safety and comfort, with no compromises, when compared with most other TH2 PAPR systems on the market. When accompanied by a Optrel LiteFlip the E3000X PAPR system ensures the user the maximum TH3 protection from welding fume/ fine particulates and grinding dust. The Optrel E3000X also offers the user a highly modular breathing protection solution that you can adapt to your protection needs in seconds. Should unpleasant odours or increased ozone concentrations start to cause mild nausea or headaches, then the Optrel mountain breeze Odour/Ozon Filter is the perfect solution. Working in an environment where you have to rely on comprehensive protection against gases? Then not a problem. In a matter of seconds, you can expand the E3000X with the A1/B1/E1 filter – which immediately eliminates certain harmful gases.
X-tended Performance: Optrel have managed to double the efficiency of the E3000X by combining a performance-optimised design with the latest Li-ion battery cell technology. With up to 18 hours of battery life and 240 litres of air per minute available at the touch of a button, the new E3000X is the perfect choice for the most powerful ventilated breathing protection system available on the market.
X-tended Safety: The new E3000X displays you the battery charge level at the touch of a button, it then calibrates the air flow automatically, so that you can continue to work through the day safely. The E3000X also has the no filter detection feature, unlike other PAPR systems available. If the E3000X detects that the main filter is missing, an acoustic alarm will sound and if ignore the system will stop working for enhanced safety.
X-tended Productivity: As soon as the filter in the respective air flow level is saturated, you receive an acoustic alarm and the new E3000X‘s intelligent alarm function switches fully automatically to the next lowest air flow stage without you having to interrupt the work process.
X-tended Application Possibilities: The new Optrel e3000X PAPR system protects you reliably from particles like smoke, aerosols or dust. Furthermore, the mountain breeze odour filter keeps you free from awkward smells and insanitary ozone. In environments with hazardous or toxic gases the new A1B1E1 gas filter will be available from Q2/2020. The new e3000X adapts to your requirements.
The E3000X offers the highest class of protection (TH3) from respirable particles (smoke, aerosol, and dust), the breathing air becomes cleaner by a factor of up to 500 and can be evenly distribution around the PAPR welding helmet or visor.
Before using any make of PAPR system it should be checked to ensure that the adequate flow rate is being delivered. On other makes of PAPR systems a manual air flow check has to be undertaken. By the means of a built in sensor, the E3000x alleviates the need for a manual check by self-calibrating every time that its switched on making it safer and more productivity.
The maximised particle filter area of 0.25 m2 accompanied by efficient prefilter helps to reduce the number of particle filter changes compared with other PAPR systems available. With its lower consumption of particle filter over its life time, lowers the total cost of ownership of the E3000X.
Blower: High Quality Ball Bearing Long Life Brushless Motor.
Flow rates: Level 1: min. 170 l/min
Level 2: min. 210 l/min
Level 3: min. 240 l/min
Battery: Li-ion Rechargeable 14.8V/3.5AH
Charging time: Standard Battery: 5h
Run Time: Level 1 – 170 l/min: 18h
Level 2 – 210 l/min: 16h
Level 3 – 240 l/min: 13h
Noise Level maximum: 70dbA
Alarm Type: Optical and audible alarm for low battery, clogged filter, no filter fitted and low air flow.
Filter Type: TH3P R SL for TH3P system (EU)
Hose length: 0.7 m elastic up to 1.3 m
Dimensions (L x W x H): 222 x 213 x 92,6 mm
Weight: 1615 g (incl. filter, belt and battery)
Standards: EN 12941:1998/ A2.2008 + A2:2008,
EAC TP TC 019/2011
Notified body: CE 1024, SAI Global
Liteflip Autopilot Features:
The Optrel Liteflip autopilot combines the advantages of a flip-up welding helmet with the comfort of the Optrel autopilot with a shade level range from 5 to 14 and fully automatic adjustment, the Optrel Liteflip autopilot achieves a new level of performance.
All work sequences, such as measuring, testing, grinding, and other welding applications, can be handled without any manual adjustments at the helmet and without displacing the helmet itself, the welder is always protected perfectly.
With true colour view the specially developed UV/IR filter allows a realistic perception of colours and at long last brings colour into the world of the welder.
Twilight ADF Technology unlike other ADF lenses that rapidly return to light, the Twilight ADF technology restores light more naturally, presenting a smoother transition to the eyes. This exclusive technology reduces eye fatigue on welders who are continuously welding, enabling them to work safer and more comfortably
Weighing only 530g, the Liteflip autopilot is one of the lightest flip-up welding helmets available. Its ergonomic design minimizes strain on the head and neck, ensuring comfort throughout the working day.
Application ranges include most electric arc welding process, Electrode welding (SMAW) MIG / MAG (GMAW) / (GMAW). High melting rate process such as Flux Cored Wire applications, TIG welding (GTAW), Plasma Arc cutting or welding, Oxy-fuel gas cutting and welding.
The ADF is not recommended for use with laser welding.
Liteflip Autopilot Specification:
Shade levels: Flip front open / clear view: shade level 1
Flip front closed / inactive: shade level 4
Flip front closed / active: shade levels 5-14
Autopilot: Automatic shade level adjustment, shade level range 5 to 14 with individual calibration option of +/- 2
Power supply photovoltaic cell, 2 pcs batteries 3V exchangeable (CR2032)
Battery operating time approximately 3,000 hours.
Three sensors with sensitivity Infinite adjustment, and new “Super High” range
Switching time Light to dark: 0.100 ms at room temperature. 0.100 ms at 55°C
Dark to light: 0.3 s or 1.5 s with twilight function.
Field of view: Flip-up open: 82 x 102 mm
Flip-up closed: 50 x 100 mm
Classification: Optical class: 1
Scattered light: 1
Angular dependence: 2
Shape stability Welding mask: up to 220°C / 428°F
Front cover lens: up to 137°C / 279°F
Eye protection Ultraviolet / Infrared protection: maximum protection at any shade level
Operating temperature -10°C to +70°C
Storage temperature -20°C to +80°C
Weight Standard helmet: 530 gram
Standards CE, ANSI Z87.1, EAC, complies with CSA Z94.3

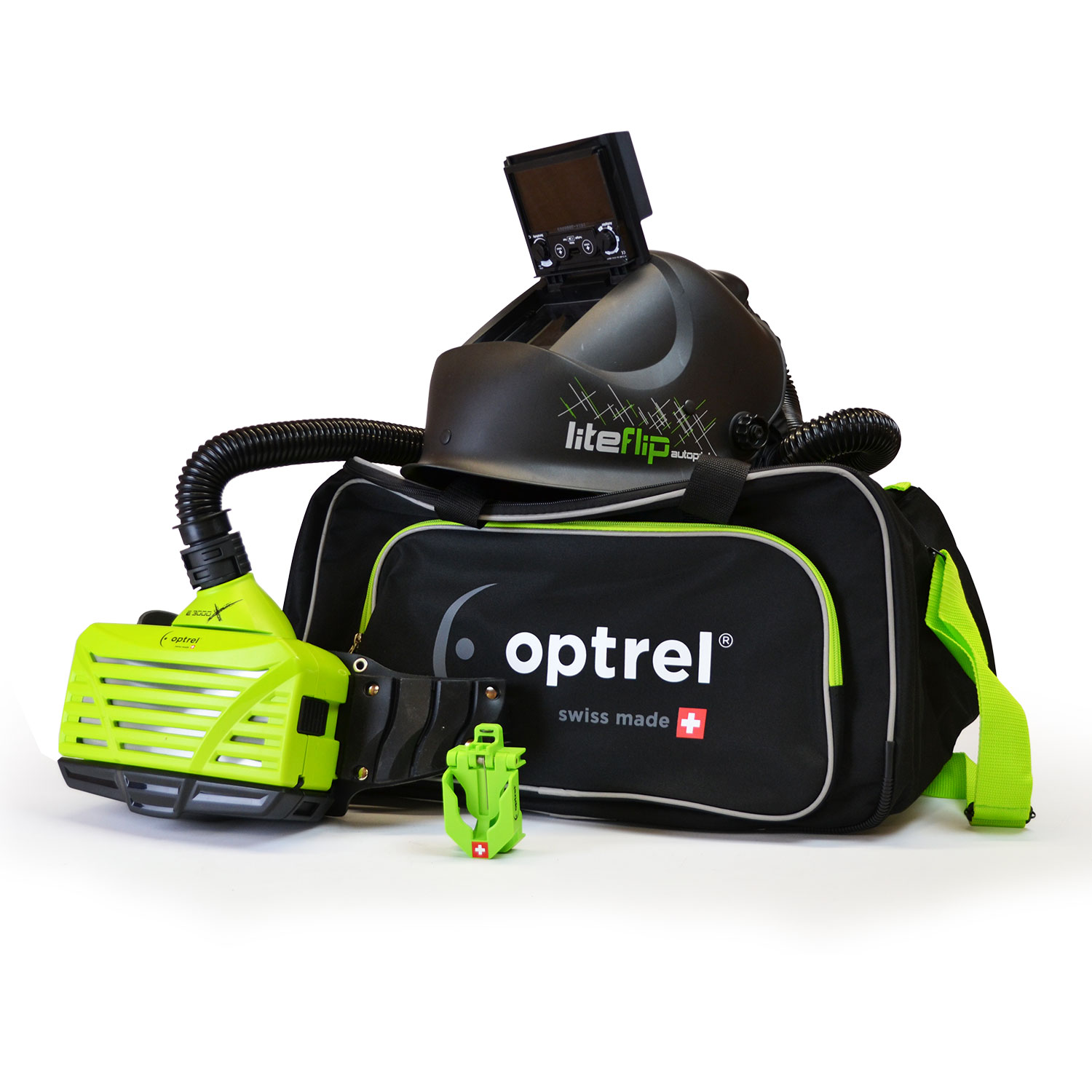

Included as Standard: E3000X blower unit with hose, TH3P R SL Filter, 18h LI-ion Battery, Leather belt, Universal Charger, Parking buddy, Storage bag, User Operating Instructions and Liteflip PAPR Welding Helmet.
2 years from date of sales for manufacturing and material defects, 6 months warranty for battery.
