Product Overview

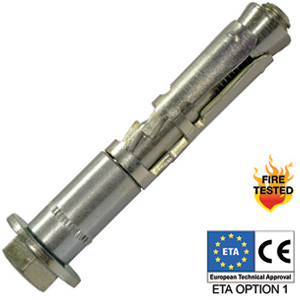

  • The Spit Triga Z is a patented heavy duty high performance anchor designed for safety critical applications in concrete & solid stone.


    Read more

    The Triga Z is the specifiers solution for cracked and non-cracked concrete, meeting the European Technical Approval option 1 – the highest standard achievable for a mechanical anchor. The Triga Z is also CSTB Fire Tested. A wider range is available including stainless steel – call for details.

    Perfect for crane rails, fire escapes, safety barriers, channel supports, machine mounting and pallet racking.



    Code

    Thread Diameter

    Anchor Length

    Max. Fixture Thickness

    Drill Bit Size

    Min. Drill Depth

    		 Hex

    Socket

    25070

    M8

    80mm

    10mm

    12mm

    80mm

    13mm

    25071

    M8

    90mm

    20mm

    12mm

    80mm

    13mm

    25072

    M10

    95mm

    10mm

    15mm

    90mm

    16mm

    25073

    M10

    105mm

    20mm

    15mm

    90mm

    16mm

    25074

    M12

    105mm

    10mm

    18mm

    105mm

    18mm

    25075

    M12

    120mm

    25mm

    18mm

    105mm

    18mm

    25076

    M16

    130mm

    10mm

    24mm

    131mm

    24mm

    25077

    M16

    145mm

    25mm

    24mm

    131mm

    24mm
