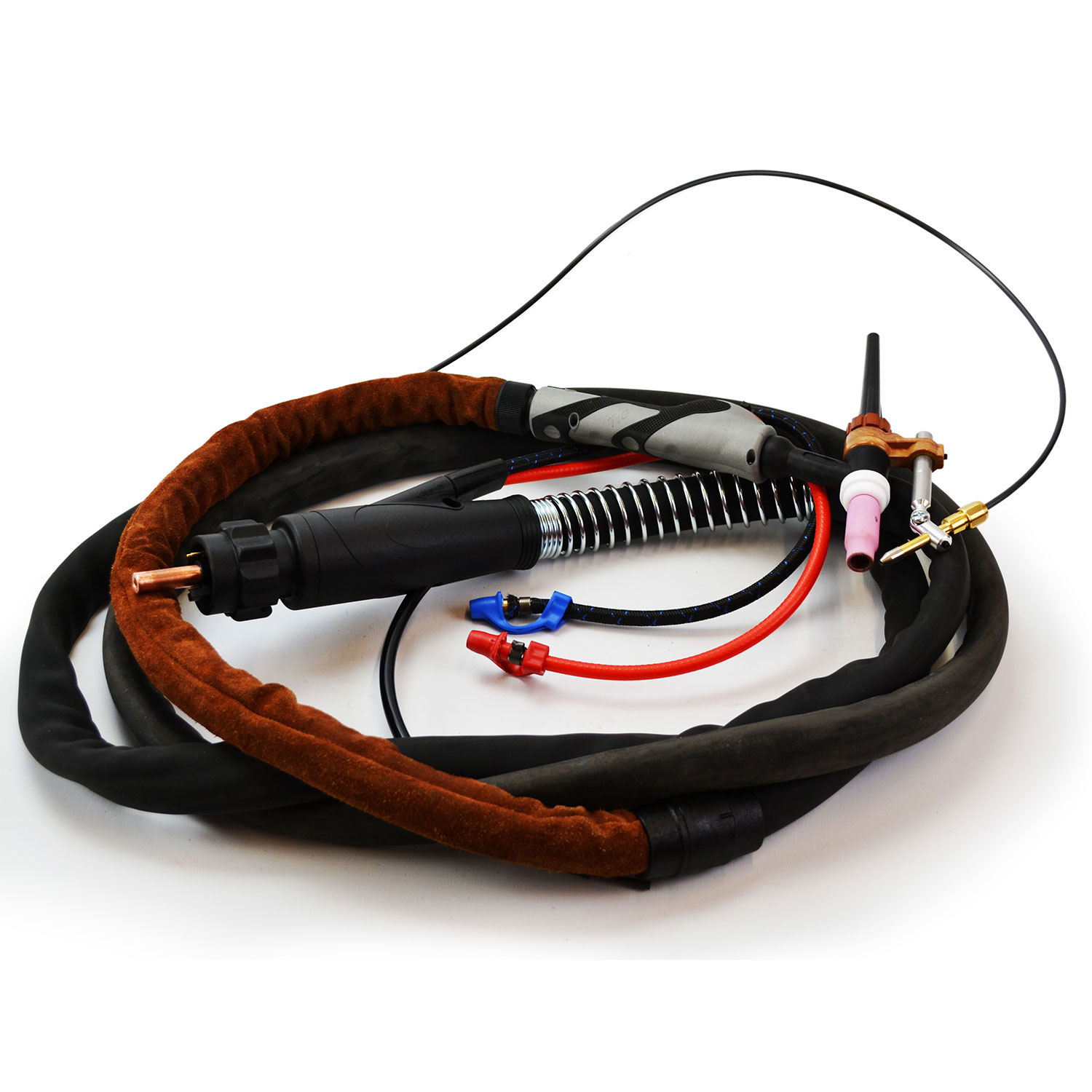

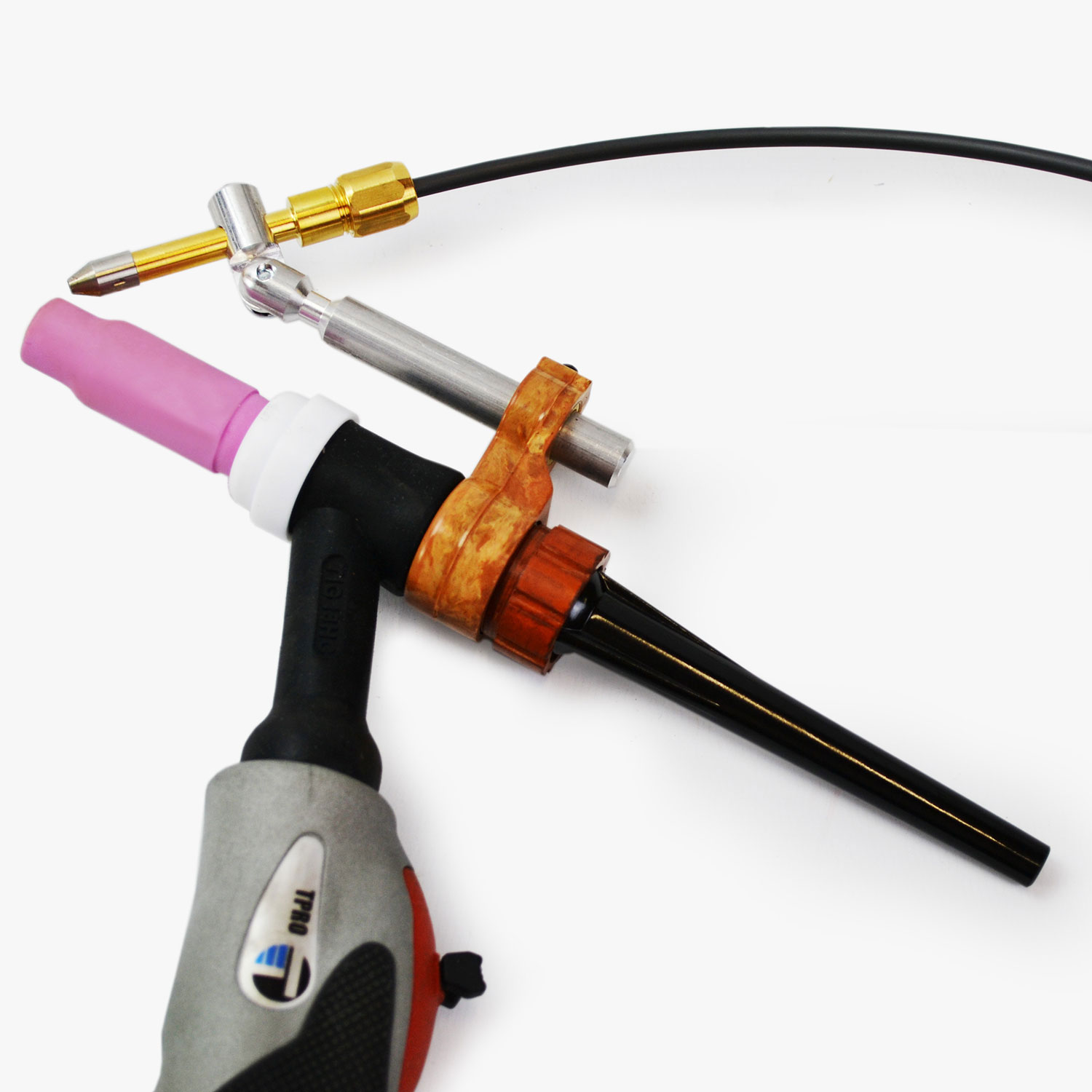

Trafimet Easy 400 TPRO Multi 26HC 4 Meter W/C TIG Torch
The Trafimet TPRO special torches with new design TPRO handle grip, are manufactured specifically to communicate and work on the Easy 400 Classic cold wire feeder. They offer light weight with great flexibility with superior electrical performances. The multi-function trigger allows the operator to both start and stop the welding process, along with full control of the wire feed and speed directly from the torch.
The air cooled power cables on TPRO TIG torch are manufactured from heavy duty 70 cm coaxial power cable with 50mm connector.
The torches are fully sheathed to give the inner cables full protection, with the last meter made from leather. This offers much greater resistance to wear usually caused when the torch is slid across the work piece or from atmospheric agents and chemical substances.
The TPRO multi torches allow the operator to adjust all the parameters, without interrupting the welding process.

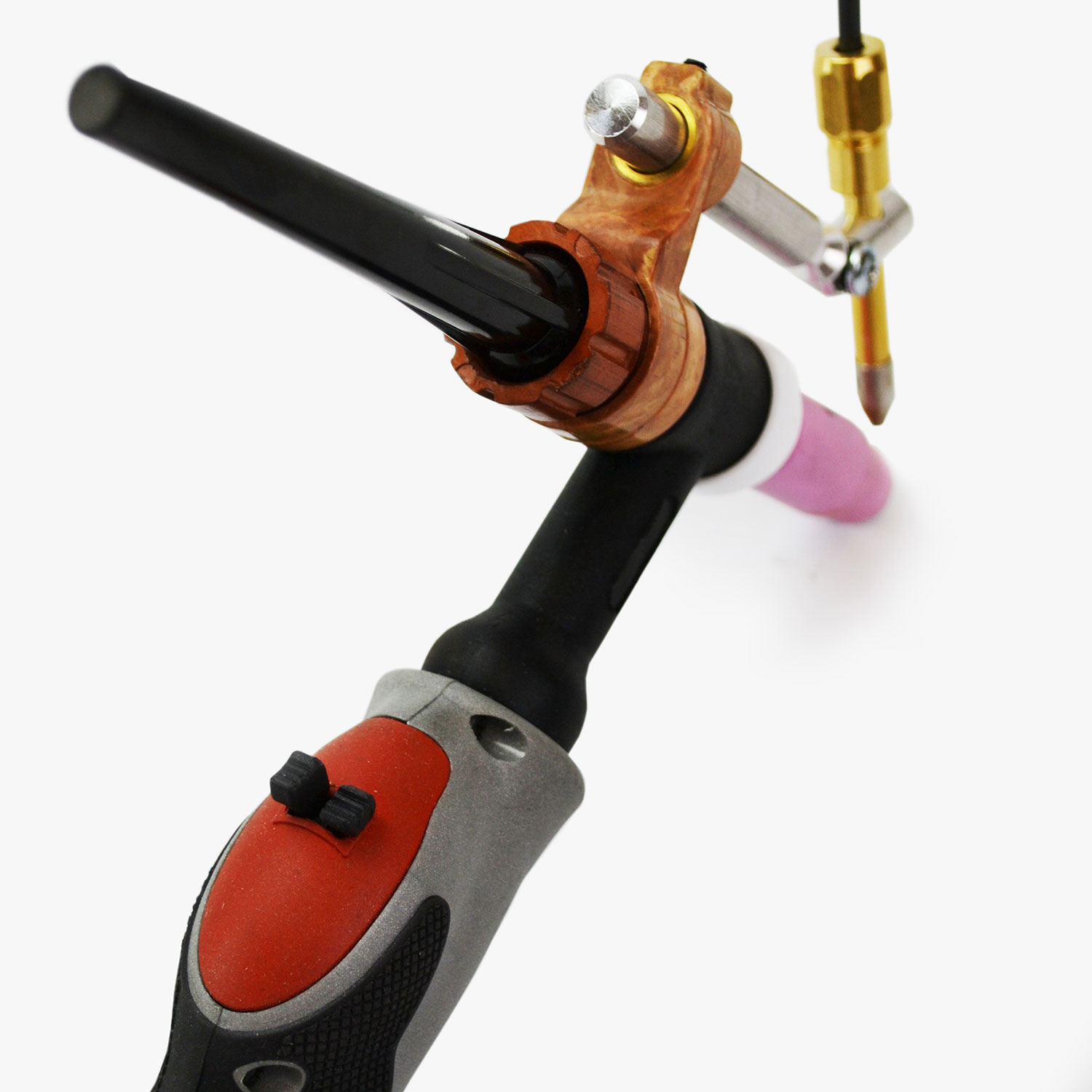

Lever 1 in the up (forward) position initiates the START/STOP of the arc.
Lever 1 in the down (back) position gives wire feed loading and retract whilst not welding, plus wire retract and restart during the welding process.
Lever 2 in the up (forward) position increasing the wire speed.
Lever 2 in the down (back) position decreases the wire speed.
Compatible with standard WP17,18 and 26 type consumables.
Replacement wire guide holder part number 47129, Trafimet part number FE0179.
Trafimet part number HA2604S-358-TG3.
Duty cycle@ 100%: 320A DC & 250A
Tungsten diameter: 0.5mm to 4.0mm
Water cooling: 4 bar @ 1.5 l/min
Torch length: 4m cable
Peak voltage: 113V
