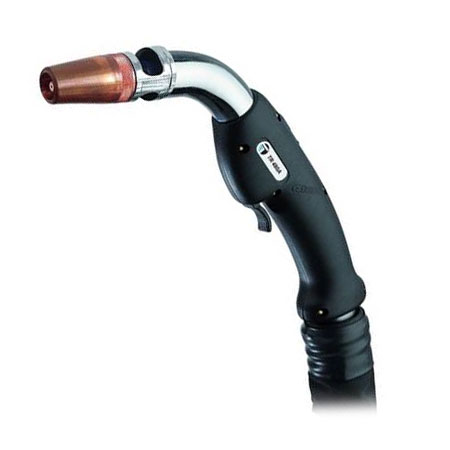

Trafimet Turboplus TR480A Water Cooled Fume Extraction Torch
Trafimet Turboplus TR480A Water Cooled Fume Extraction Torch is the most efficient and effective solution to allow welders to operate with in confined and general working areas with the maximum extraction of welding fume and protection for the operator. The Trafimet Turboplus fume extraction torches have been designed specifically for fume extraction and alleviate a lot of the problems previously associated with fume extraction torches. Turboplus fume extraction torches have specially designed solutions which guarantee efficient welding fume removal. They have been designed and produced much lighter with improved ergonomics and even greater performance.
The small handle on the Turboplus torches with its rotating metal swivel joint, guarantees excellent grip and less effort to reduce operator fatigue.
The cable and outer hose on the Turboplus torches are more efficient, softer and make the torches much easier to handle.
The fume suction cones on the Turbo Plus torches also help protect the welding pool from any air currents, with a reduction of the shielding gas flow required by up to a ¼” when compared with standard torches.
The suction on the Turboplus torch can be reduced or increased by simply sliding the control cursor on the top of the handle backwards and forwards to open or close the aperture.
The Turboplus consumables are manufactured from selected high grade materials for increased reliability and durability.
Standard Euro Connection.
Duty Cycle @ 100%: 480amp CO2
420amp Mixed Gases.
Suction Air Flow: 125 m³/h
Wire Sizes: 1.2 mm to 1.6 mm.
Approximate Torch Weight: 3.3 Meter Torch 4.95 kg.
4.3 Meter Torch 6.45 kg.
5.3 Meter Torch 7.95 kg
Manufactured to BS EN 60974-7:2013
