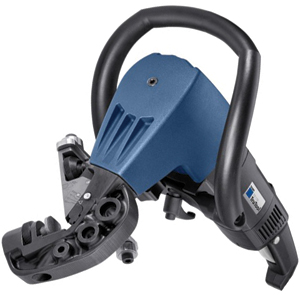

TRUMPF TruTool TKF1100 Beveller
TRUMPF TruTool TKF1100 is ideal for producing highly precise and emission-free bare metal K, V, X and Y edges.
Especially designed for stainless steel and high-strength steel processing.
The edges remain free of oxide and there is no need for seam work.
Weld joints can be made both on straight sheets and on tubes, interior cutouts and curved edges.
The machine can be positioned in the middle of the sheet.
Progressively adjusted bevelling height and tool-free setting of the sheet thickness characterize this beveller.
Mounting brackets for bevel angles of 30°, 37.5° or 45°.
Adjustable motor handle provides optimal operating comfort.
Processes pipes with a minimum inside diameter of 80mm.
Bevels inside cutouts starting 80mm diameter and curved edges with a minimum radius of 40mm.
Max. Bevel Height
Steel 400N/mm² 7.8mm
Steel 600N/mm² 6.4mm
Steel 800N/mm² 4.2mm
Max. Bevel Length
Steel 400N/mm² 11mm
Steel 600N/mm² 9mm
Steel 800N/mm² 6mm
Sheet Thickness: 3mm – 25mm
Working Speed: 2m/min
Strokes at Nominal Load: 320 1/min
