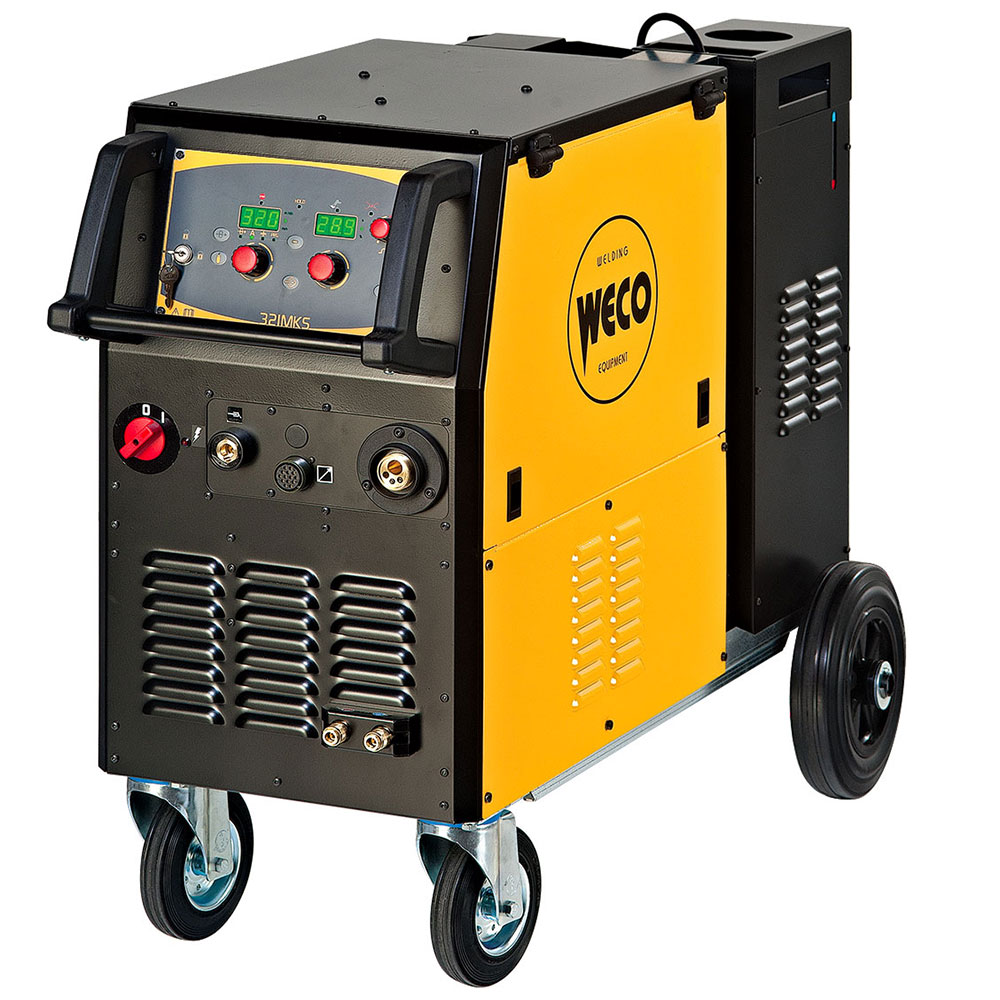

Weco Pioneer 321MKS Synergic Compact MIG/MAG Inverter

Calculating latest stock
Code: 12028
Part No: 00100710000WEC
Order For Delivery
Select the required delivery time and method at checkout.
Allow 7-10 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£2,419.58 each
exc. VAT
£2,903.50 each
inc. VAT
Add to order

Product Overview

Manufacturer: Weco

  • The Pioneer 321MKS is a compact 3 phase inverter which offers both manual and synergic MIG-MAG applications with 35 synergic programs. This facilitates the selection of precise welding parameters covering a full range of different welding wires.


    HAC (Hybrid Arc Control) offers flawless welding with a soft and very stable welding arc, low heat input in both short and spray arc.

    In spray arc HAC allows you to have a short spray arc with better penetration of the root, lower heat input and higher welding speed with no edge cutting and spattering.

    HAC gives an optimal fusion of the bead’s edges in short arc welding, this helps to make overhead and vertical up position welding simple.

    When welding thin plates HAC allows welding in the vertical down position with gaps of up to 5mm wide.

    HAC gives smooth and controlled short arc at lower parameters too, very low spatter and good edge wetting. Very low heat input and small deformation are achieved whilst welding on thin plate material.

    In small globular arc range the welding is always perfect with low spatter even with a high level of CO2 mixed gas.

    Quality of the weld beams similar to what you would achieve if welding with a pulse MIG.

    Inductance and start/finish parameters are optimized in the synergic setting.

    Easy selection of synergic welding curves, simply set the desire synergic curve, select main welding parameter, set main welding parameter, and then weld.

    4 Roll wire feed system with adjustable wire feed pressure to ensure uninterrupted wire feeding on a variety of wire types.

    Pre and Post gas delivery for before the welding arc is created and after the welding arc is extinguished,  creating in an uncontaminated atmosphere, this is useful when welding at high current values or with materials that oxidise readily when the weld pool cools.

    Gas flow adjustment button opens the gas solenoid valve to fill the circuit and calibrate the pressure with the regulator and flow meter on the gas cylinder.

    Various torch trigger selections are available to ensure the best possible results on more difficult to perform processes. 3T special allows you to set and recall 3 different current levels by pushing the trigger switch in order to achieve top quality weld beads, highly recommended when aluminium welding.

    Personalized welding settings, or jobs can be stored in the memory locations and can subsequently be uploaded when required, up to 99 jobs can be saved. This function is unrivalled when application repeatability is required and set welding parameters need to be achieved.

    Locking facility, this procedure inhibits unit adjustments, allowing the user to modify only certain settings depending on the selected lock status, this prevents accidental alteration of the welding settings by the operator, helps to set welding parameters.

    Euro adaptor connector for  MIG/MAG torch.


    Mains Voltage: 3 x 400Vac ± 15% @ 50-60Hz

    Mains protection: 16 Amps.

    Welding mode MIG

    Current Range  30 Amps – 320 Amps

    Working cycle (40°C) 230 Amps @ 100%

    Size (L x D x H): 1110 x 550 x 805mm

    Power source weight: 61Kg

    Supplied with: Bernard Q300 MIG torch 15ft, Elga Optimator regulator, 3 meter 35mm welding cable with 35/50mm dinse connector and 350 Amps Nevada type earth clamp, 3 meter heavy duty gas hose and fittings.
