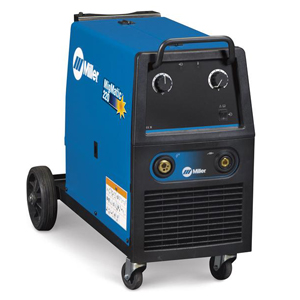

Miller Migmatic 220 Compact Mig Welder 240V 1 Phase

Calculating latest stock
Code: 12201
Part No: MIGMATIC220
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:1
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
1 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£1,409.05 each
exc. VAT
£1,690.86 each
inc. VAT
Add to order

Product Overview

Manufacturer: Miller

  • The Migmatic 220 offers superior performance arc control technology, providing the operator with state-of-the-art class leading performance on a wide variety of materials. Traditional tapped design and Laminated Inductor provides a stable, smooth arc which operators will appreciate.


    Euro-Style Torch adapter for quick and easy installation of professional style torches, allows the operator to have a separate torch for other applications.

    Simple and straight forward stepped voltage switch and a rotary wire feed speed control for optimum weld current setting.

    Adjustable Burn-back control allows the operator to optimize arc starts and stops, reducing wire stubbing or wire burning back onto the contact tip.

    Ergonomic, easy to operate controls allows the operator easy set-up.

    Traditional tapped design and laminated inductor provides a stable, smooth arc which operators appreciate.

    A thermal overload protection shuts down the power source output, if overheating of either the main transformer or rectifier should occur.

    Industrial dual-gear-driven, features no-tool, quick-change reversible drive rolls 0.8 – 1.0 mm, easy-to-set, scaled, tension adjustment knob.

    Spot Weld Timer provides consis¬tent spot welds every time.

    Factory fitted with running gear and cylinder rack.


    Input Power: 220-240V 1 phase VAC 50Hz

    Rated Output: 200A at 28VDC, 20% Duty Cycle

    Amps Input at Rated Load Output: 50/60HZ 35Amp

    10 Voltage steps

    Wire Feed Speed: 1.1-20m/min.

    Dimensions (W x H x D): 480 x 700 x 920mm

    Weight: 64.0kg

    Supplied with; Earth cable, power cord (without plug) drive roll kit 0.8 / 1.0mm / V-groove.

    Mig torch and Regulator sold separately to suit application.
