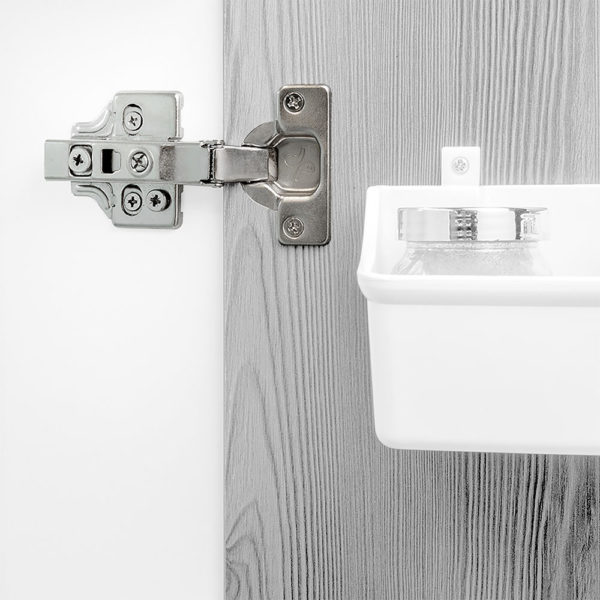

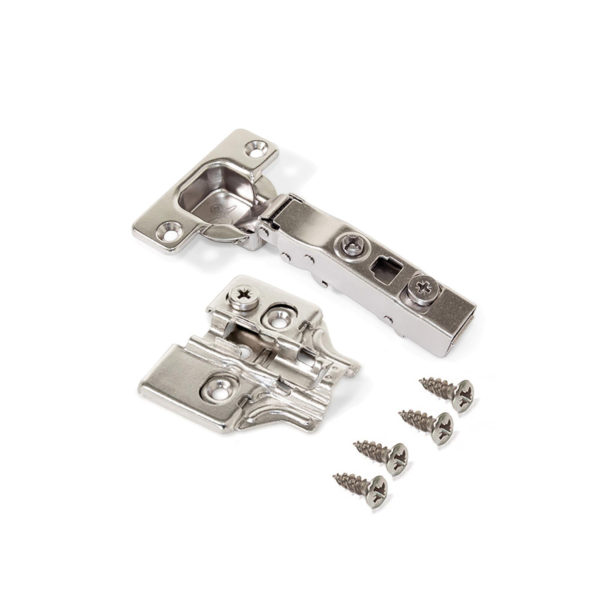

105° Concealed Hinge & Mounting Plate Kit – Pack of 20

Concealed hinges with 105° opening for use on kitchen cabinets, wardrobes, bathroom furniture and office furniture.

Conveniently packed in a sealed kit.

Featuring a 0mm click-on mounting plate with eccentric height adjustment which enables easy mounting and removal of the door, making assembly and maintenance simple. Wide range of hinge adjustment permits use of a 0mm mounting plate for 15mm and 18/19mm carcasses.

Spring loaded.

Cup diameter:35mm

Opening angle: 105°

Drilling range of cup from edge of door: 3-7mm

Door thickness: 14-24mm

Mounting plate height for full overlay, half overlay & inset: 0mm

Finish: Nickel plated steel

Available in full overlay, half overlay & inset.
