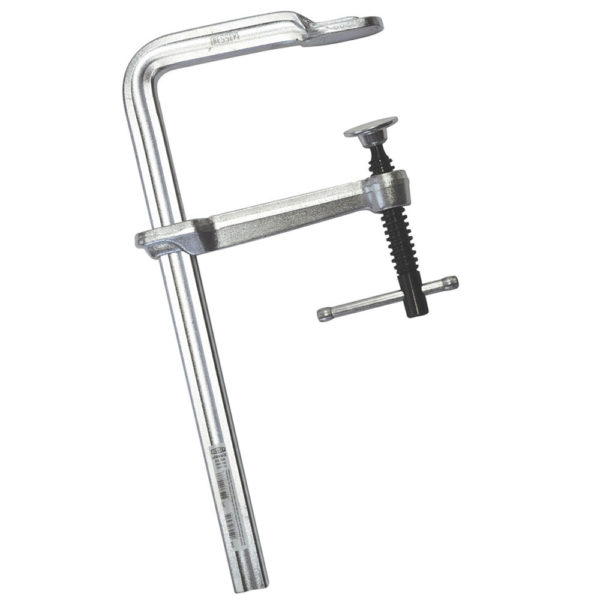

Bessey GS25K Screw Clamp

Manufacturer: Bessey

• Due to the unique quality steel of the Bessey GSK, it makes them an unrivalled all-steel screw clamp. With the GSK clamp you can be sure of an extremely high-quality, durable clamping tool, which is light and easy-to-handle, even at the high clamping force, it will retain its dimensions and resist distortion.




  Read more

  Features:

  The optimised profile of the GSK clamp guarantees high clamping force build-up in the shortest time, while maintaining maximum stability and safety.

  The fixed bracket and pressure plate are manufactured in a single piece, and tempered so they are able to bear heavy loads, and are resistant to torsion.

  The sliding arm allows for more efficient transfer of  force, the new U-shaped sliding arm also offers maximum security with the heaviest of loads.

  For enhanced serviceability the pressure plate can be changed with no need for tools. It can be replaced very easily and quickly.

  The surface-coated spindle with acme thread is spatter resistant for longer service life, with particularly smooth-running which does not bind offering more efficient working.

  The heavy duty tommy bar with rounded ends allows for simple transfer of force when clamping.

  Specification:

  Clamping Capacity: 250mm

  Throat Depth: 120mm

       Rail section 22 mm x 10.5mm



  Clamping Force: up to 5000N

  Weight: 1.134kg

  Code	Rail Section (width)	Rail Section (thickness)	Clamping (opening)	Throat (depth)	Clamping (force)	Weight (approx.)
  22122	22mm	10.5mm	250mm	120mm	5,000 N	1.134kg
