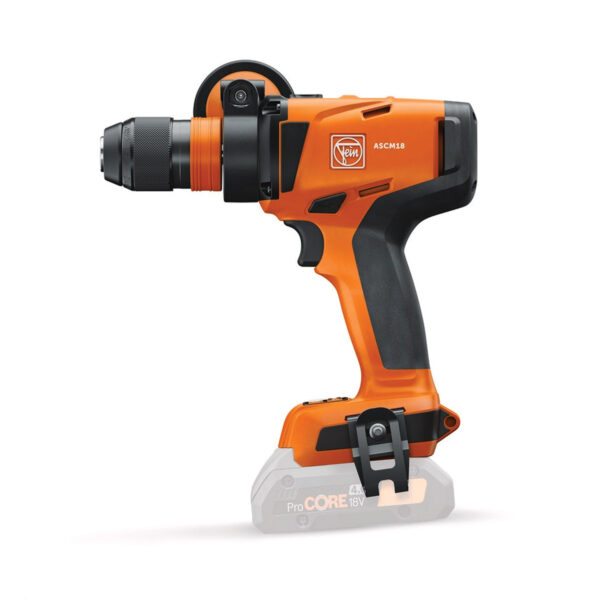

Fein ASCM18-4 QM AS Drill Driver & QuickIN Set

Manufacturer: Fein

• The ASCM 18-4 QM AS drill driver with 7 QuickIN quick-change attachments delivers maximum efficiency and versatility. With everything neatly and securely stored in the I-BOXX the ASCM 18-4 QM AS is extremely versatile for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving applications. The QuickIN attachments can be changed in a matter of seconds without the need for additional tools when you need to switch between applications in metal, timber and other materials with just the one tool.




  Read more

  ASCM 18-4 QM AS Features:

  4-speed solid metal gearbox with speeds of up to 4000 rpm for optimum cutting speeds in metal for any holes between 1.5 and 80 mm.

  Extremely safe working with Kickback monitoring that stops the tool in the case of a jam.

  The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible.

  High torques up to a maximum of 130 Nm.

  QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.

  Electronic torque setting (15+1).Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material.

  Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs.

  The QuickIN attachments can be changed in a matter of seconds and without the need for additional tools when the user switches between applications in metal and other materials

  Extendible extra handle for more control.

  Bit and belt holder on the side for ergonomic and flexible handling.

  ASCM 18-4 QM AS. Technical Specification:

  Voltage: 18V

  Battery Compatibility: 18v AMPShare

  Motor: Brushless

  Gearbox: 4-Speed

  Accessory interface: QuickIn

  Speed (No load): 430 / 850 / 2000 / 4000 rpm

  Max torque (hard/soft): 15 + 1

  Drill Chuck Capacity: 1.5-13mm

  Fastening: 10×400 mm

  Drill Steel Twist Drill: 13mm

  Drill Steel Core Bit: 30mm

  Drill Steel hole saw: 80mm

  Drill wood: 60mm

  Tapping: M14

  Weight (without battery): 1.30kg

  Sound pressure level LpA: 75.9db

  Uncertainty of measured value KpA: 5dB

  Sound power level LWA: 83.9dB

  Uncertainty of measured value KWA: 5dB

  Sound peak value LpCpeak: 90.6 dB

  Uncertainty of measured value KpCpeak: 5dB

  Vibration value 1 αhv 3-way: ah,D 0.9 m/s²

  Vibration value 2 αhv 3-way: ah0.6 m/s²

  Uncertainty of measured value Kα: 1.5 m/s²

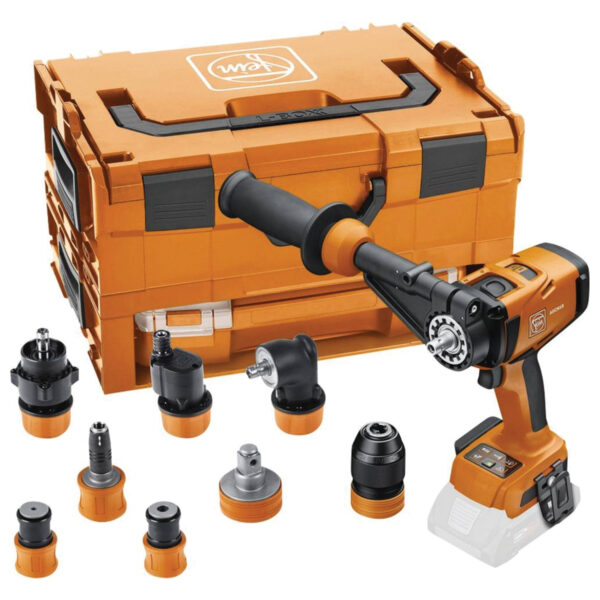

  QuickIn set includes the following accessories:

  1/4″ Bit Holder1/4 in hexagon socket bit holder with convenient one-handed operation and powerful neodymium magnet. Use of the bit holder makes the screwdriver lighter and shorter.

  1/2″ Square Drive Socket Adaptor Socket adapter to hold sockets with 1/2 in square holder.

  Tapping Adaptor Set Tapping adapter with 2 collets for shank diameter of 4.5 mm and 6 mm to cut thread sizes M4 / M5 / M6 / M8. Reliable thread drill hold on the square, preventing slipping.

  Eccentric Drive Head Accurate drilling and screw connections. Minimum spacing from work pieces. 1/4″ bit holder.

  Angled Head Metal angled head for drilling, tapping and screwdriving in confined spaces. All FEIN QuickIN accessories such as drill chucks, bit holders or socket adapters can be attached to the angled head.

  3 Years Warranty on all Fein Power Tools when registered.
