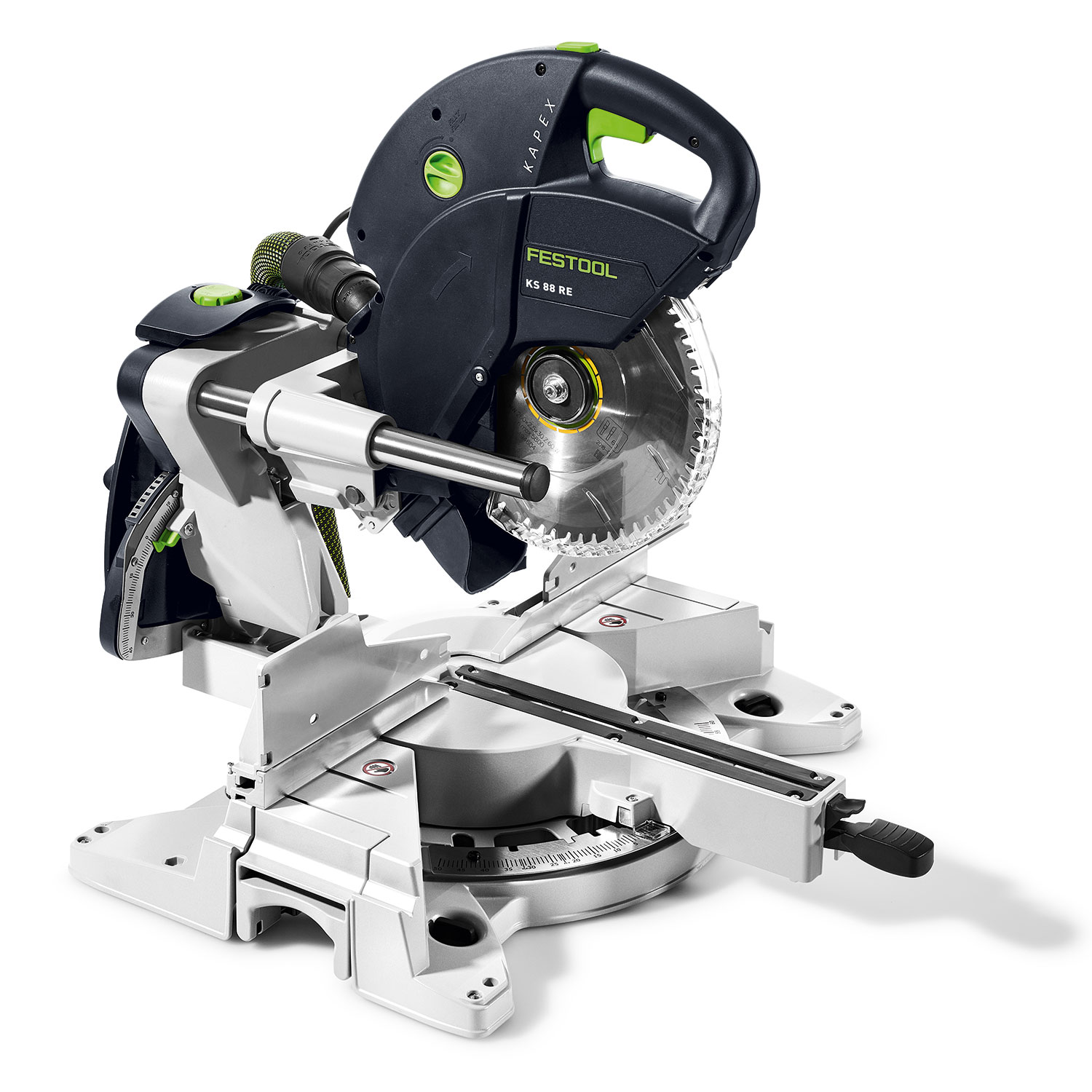

Festool KS88RE Kapex 260mm Slide Compound Mitre Saw
Festool KS88RE Kapex 260mm Slide Compound Mitre Saw, guides left, guides right. Even where others only pretend to do so.
With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns.
Double-sealed for an extremely long service life, always exact and with zero play.
Twin-column guide with two bearings for unique precision.
Compact, lightweight design for convenient transportation.
Intelligent details such as an angle preselection and quick-release clamp for rapid
adjustment of the inclination angle.
FastFix saw blade changing for adaptation to the working material.
Twin-column guide for accurate cuts.
Cutting boards and panels up to 305 x 88 mm.
Trimming crown mouldings up to 168 mm in their original wall position.
Trimming square timber and beams up to 88 mm thick.
575320 / 575319 Specification:
Power consumption: 1600W
Idle engine speed: 1,400 – 3,400 min⁻¹
Saw blade diameter: 260.00 mm
Cutting depth 90°/90°: 305 x 88 mm
Cutting depth at 45°/90°: 215 x 88 mm
Crown moulding diagonal cut 45°/90°: 168.00 mm
Inclination angle: 47/47 °
Mitre angle: 50/60 °
Dimensions (W x D x H): 713 x 500 x 470 mm
Dust extraction connection dia.: 27/36 mm
Cutting depth 45°/45° (right) 215 x 35 mm
Cutting depth 50°/90° (left) 196 x 88 mm
Cutting depth 60°/90° (right) 152 x 88 mm
Cutting depth 45°/45° (left) 215 x 55 mm
Work height: 900.00 mm
Weight: 22.30 kg

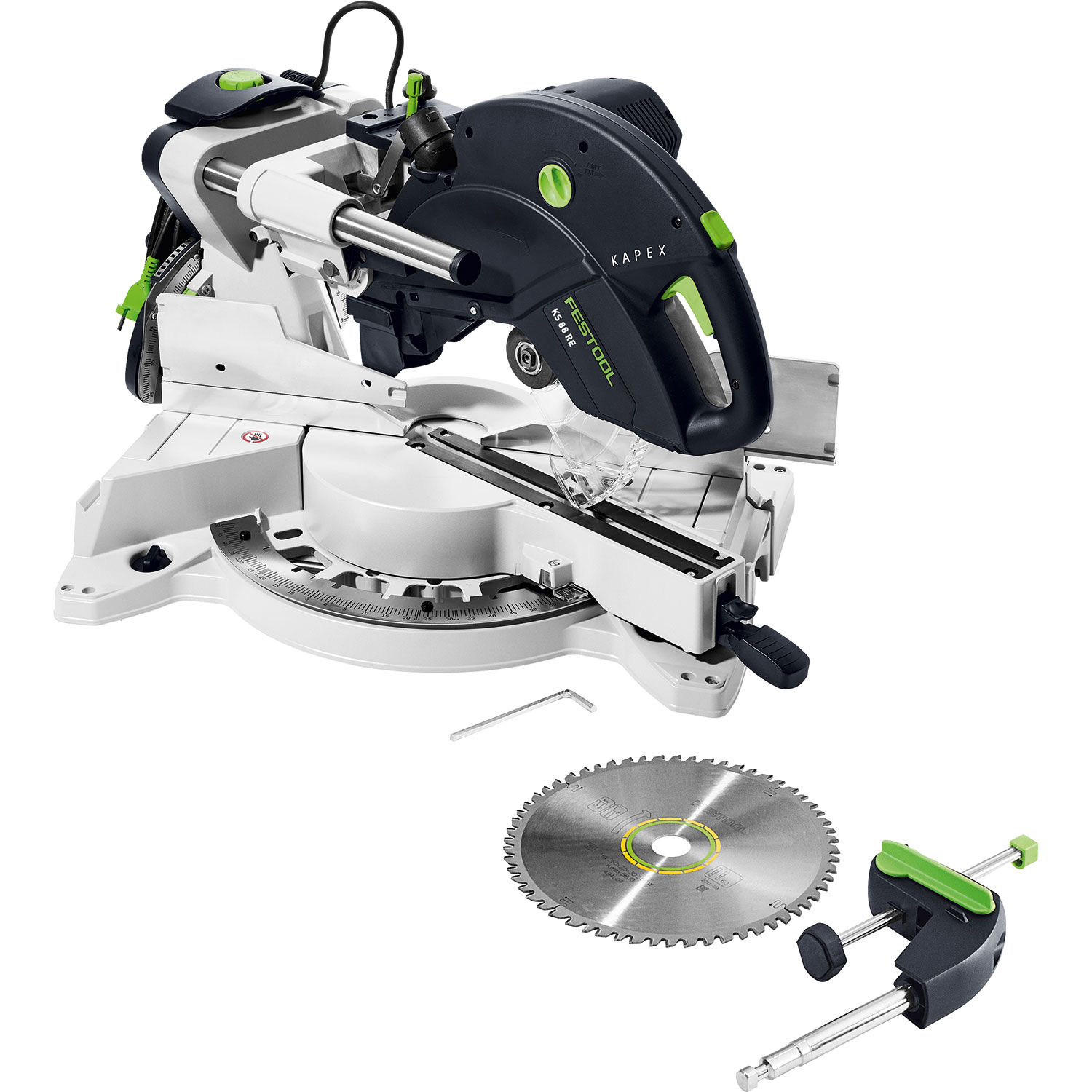

Included as Standard: Hex Key WAF 6, HW Universal Saw Blade W60 & Workpiece Clamp.
3 Years Warranty on all Festool Power Tools when registered.
