Festool TSV60K Plunge Circular Saw c/w 1900mm Guide Rail

Calculating latest stock

Klarna 0% finance available on orders over £99 inc. vat

Product Overview

Manufacturer: Festool

  • The TSV 60 K plunge-cut saw with scoring function, achieves splinter-free sawing on both sides now from the very first cut, creating the perfect cut. Coupled with the built-in KickbackStop, you and your workpiece are protected from dangerous kickbacks and thanks to the ideal combination of Festool system accessories.

    This means your work can always be precise and tailored to requirements, even when on the move. With the TSV 60 K, workshop-quality results can be replicated on the construction site – as good as with a stationary machine.


    Splinter-free: The scoring ensures splinter-free work results on both sides from the very first cut.

    Long-lasting: Diamond scoring saw blade with a very long service life for a perfect cut quality time after time.

    Saw system: comprehensive system with ideal accessories for perfect panel cutting.

    Safer: the unique KickbackStop reduces the risk of injury caused by kickback during sawing or plunge-cutting into the workpiece.

    Versatile: 60 mm cutting depth and can be combined with the FSK cross-cutting guide rail or FS guide rail.

    Swivels with: perfect scoring, even on mitre cuts from 0° to 45°.

    Flexible: Both the scoring saw blade and the main saw blade can be manually activated and deactivated.

    Convenient: The FastFix spindle stop on the main saw blade and the possibility of standing it on its side makes changing the saw blade very simple, even with the scoring saw blade.

    Constant: EC-TEC motor in combination with the thin kerf saw blades ensure work progresses without difficulty whilst requiring less effort.

    Product Highlights:

    Splinter-free in a single cut – With the TSV 60 K, the dream is now a reality. The built-in scorer can be adjusted with precision and, together with the scoring saw blade, it guarantees consistently splinter-free cuts on both sides. Which means perfect sawing results from the very first cut!

    Sawing system for perfect panel cutting – Whether it’s on the construction site or in the workshop, even large panels can be cut with precision. Thanks to Festool system accessories, it cuts just as well as the stationary machine: You can work precisely even while on the move, and can enjoy splinter-free results to suit your needs.

    Protects against dangerous kickbacks – The innovative KickbackStop in the plunge-cut saw with a scoring function protects your workpiece and minimises the risk of injury. The saw detects a kickback in the blink of an eye and stops the motor within a fraction of a second.

    577747 / 577746 Specifications:

    Power consumption 110V (circular saw/scorer): 1500 / 150 W

    Power consumption 230V (circular saw/scorer): 1500 / 190 W

    No-load speed (circular saw/scorer): 3,000 – 6,800 / 16,000 – 22,000 min⁻¹

    Saw blade diameter (circular saw/scorer): 168/47mm

    Angular range: 0 – 45 °

    Cutting depth:  0 – 62mm

    Dust extraction connection diameter: 27/36 mm

    Cable length: 4.00m

    Drive type: Mains

    Product weight: 6.2kg

    Transport weight incl. accessories: 9kg

    Sawing wood: A-weighted sound pressure level, LpA:  90.00 dB(A)

    Sawing wood: A-weighted sound power level, LWA: 101.00 dB(A)

    Sawing wood: Total vibration average, Ah: 2.50 m/s²

    Sawing wood: Standards series EN: 62841

    Sawing wood: Uncertainty (noise) K: 3.00 dB

    Sawing wood: Uncertainty (vibration) K: 1.50 m/s²

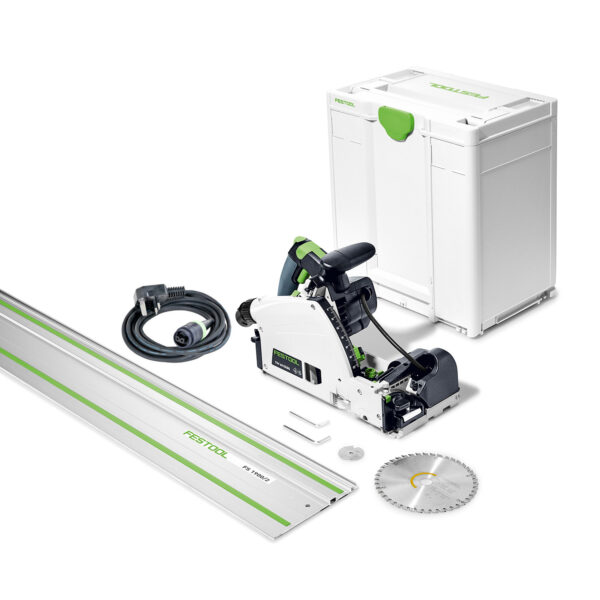

    Included as Standard: TSV60 KEB/KEBQ Plunge Circular Saw, Allen key 4, Guide rail FS 1900/2 flag window; Vision panel, Hex key, WAF 5, scoring saw blade DIA 47×2.5×6.35 T1, Systainer SYS3 M 437 & WOOD FINE CUT HW 168 x 1.8 x 20 WD42 circular saw blade.

    The 240v saw is supplied with a ‘plug-it’ mains cable, whereas the 110v is hard-wired due to the 110v saw running at a higher amperage.

    3 Years Warranty on all Festool Power Tools including Batteries & Chargers when registered.
