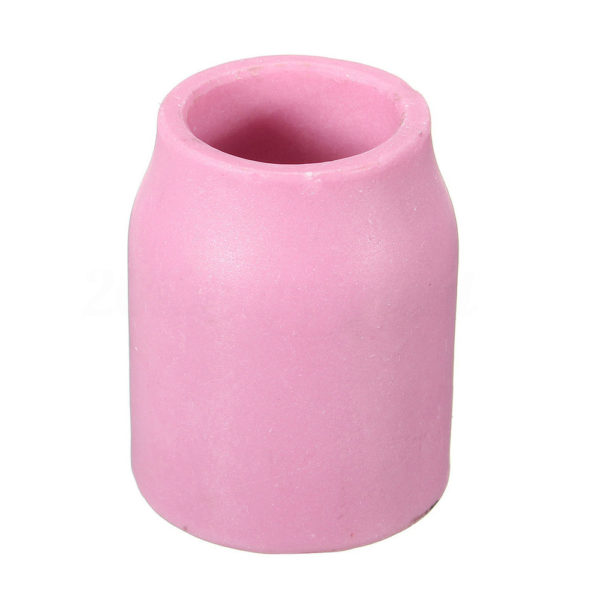

Gas Lens Alumina Nozzles for WP17, 18 & 26 Type TIG Torches

Gas lens ceramic nozzles provide a given amount of shielding gas coverage to the weld pool, according to their size, a smaller nozzle provides less gas coverage than a larger one.

Ceramic nozzle orifice sizes are normally denoted by a number which relates to 1/16” (1.6mm) increments, for example a No 6 nozzle would relate to 6 x 1/16” = 3/8” (9.6mm).

Parts are compatible with the Tigama and WP17,18 and 26 type torches, when fitted with a standard gas lens and 54N01 insulator.

47077 Size 4 is equivalent to a 54N18

47078  Size 5 is equivalent to a 54N17

47079 Size 6 is equivalent to a 54N16

47080 Size10 is equivalent to a 54N19
