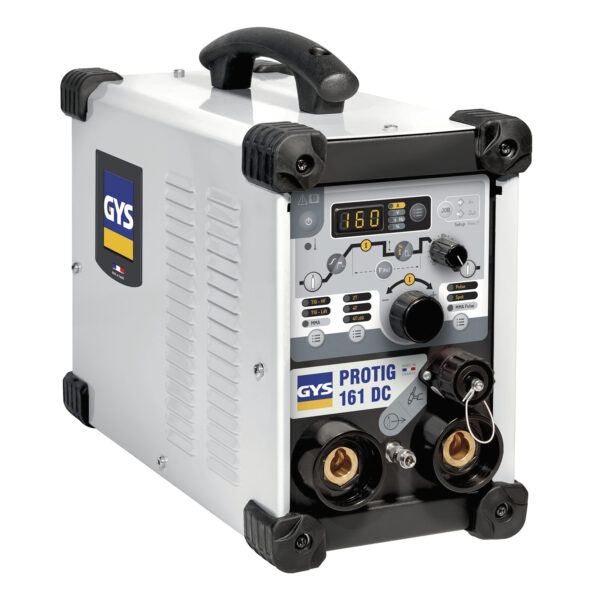

GYS PROTIG 161 DC TIG Welder

Manufacturer: Gys

• The PROTIG 201 DC FV is also a fully functioning MMA machine with two MMA welding modes: MMA standard for welding with basic and rutile electrodes up to 5mm diameter. MMA adjustable Pulse helps to simplify welding in the vertical upright position and when pipeline welding.




  Read more

  Adjustable Hot Start is used to deliver a higher amperage when the electrode first comes into contact with the metal and can be adjusted in seconds according to the type of material. A lower Hot Start is used for thin metal sheets, whilst a higher Hot Start is better for metals which are more difficult to weld such as dirty or oxidized sheets.

   Anti sticking helps to reduces the risk of the electrode sticking if it comes into contact with the workpiece.

   Adjustable Arc force helps to ensure better penetration and prevention of the electrode sticking during the welding process.

   VRD (Voltage Reduction Device) can be activated to lower the no-load voltage down to 35V when the welding machine is on, but not being used. This creates a safer environment when you’ve just finished an electrode and need to replace it with a new one. The VRD also provides added safety when operating Lift TIG mode to help ensure the welders safety prior to the arc being activated.

   The easy to view display shows the current and voltage during and after the welding process for WPS (Welding Procedure Specifications) and PQR (Procedure Qualification Records) purposes.

   Up to 50 different jobs can be stored in the machine for each process, ensuring perfect and consistent welds when producing repetitive tasks.

   Intelligent ventilation management helps to reduce power consumption, reduces dust contamination and substation noise.

   With its reinforced casing and anti-shock pads on each side of the machine makes the PROTIG 201 DC FV ideal for workshop or onsite usage.

   Compact and light weight make it easy to move around the worksite.

   PROTEC 400 technology protects against overvoltage up to 400 Volt.

   Specification:

   Amps range 240v – 16amp: MMA  10 – 200Amps.

                                               TIG     10 – 200Amps.

   Amps range 110v – 32amp: MMA  10 – 140Amps.

                                               TIG     10 – 180Amps.

   Pulse Frequency: 0.1 – 2000Hz

   Duty cycle. EN 60974-1 (40°C): 240V MMA 60% @ 135Amp

                                                              TIG   60% @ 165Amp

   Duty cycle. EN 60974-1 (40°C): 110V MMA 60% @ 100Amps

                                                              TIG    60% @ 125Amps

    Input fuse. 16Amp (230V)

                    32Amp (110v)

  Min generator size (+/- 15%) 6kw – 7.0Kva

   Dimensions: 410 x 200 x 280mm

   Approx. weight: 10.0kg

   Machine only supplied without any accessories.
