Lamello 186306 Cabineo 8 M6 Starter Set
The Cabineo is a one-piece cabinet unit fitting and is installed into a drilled or routed shape. No edge drilling is necessary – the machining happens solely in the surface. Due to this, Cabineo can be used with all kinds of CNC machines, including very simple 3 axis and nesting machines.
The Cabineo 8 M6 connectors can be created with materials like aluminium, steel or high pressure laminates (HPL), as well as traditional board material.
Where the thread cannot be cut directly into the substrate, Lamello offers an insert for an even stronger joint. The insert nut is hammered into the dividing panel with a through hole, into which the Cabineo then engages from both sides. This generates an enormous clamping force.
In comparison with the standard cam and dowel fitting, the Cabineo offers more efficient production, faster installation and a higher clamping force. To top it off, there is no need for wooden dowels.
The concept of the fitting was designed to use a minimal amount of resources for a maximum of functionality.
The Cabineo offers considerate advantages in the whole process, including production, transport and installation. Installing the fitting into the workpieces and stacking them during the production process is possible without any protruding parts, which could damage the finished surfaces. This eliminates the packing of bags with fittings which would need to be delivered to the job site for installation.
Because the elements are already factory-installed, the person assembling doesn’t need to handle loose fittings supplied in a bag during installation. This speeds up the assembly considerably and additionaly helps in reducing possible mistakes.
The fitting is inserted into the routed shape on the surface. This can take place in production prior to transport or following transport at the final destination. The preinstalled screw inside the fitting is then screwed into a M6 tapped hole or insert nut, in the corresponding workpiece, using a ball-end allen key. The speed of the cordless drill joins the workpieces quickly and powerfully.

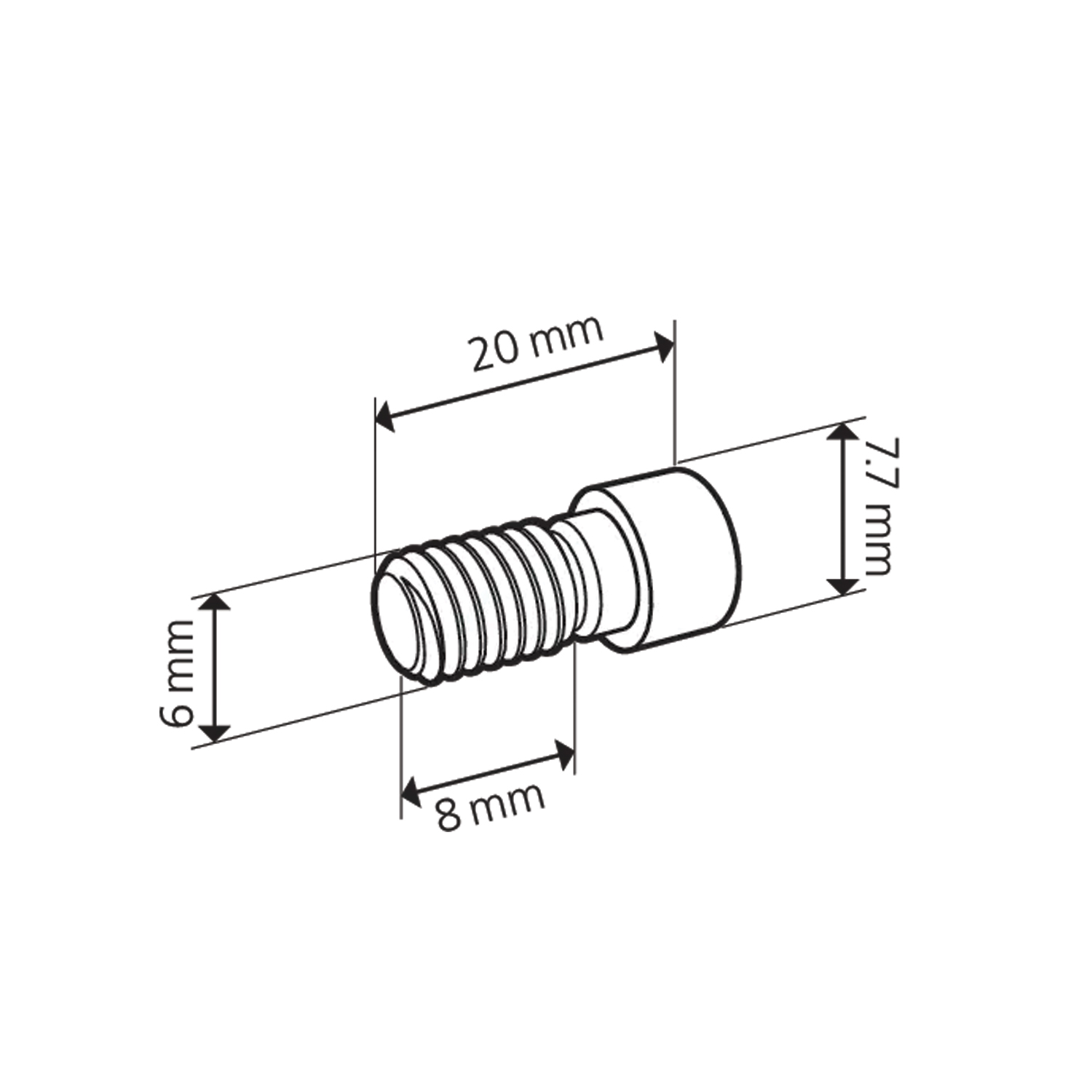

Screw Length: 8mm

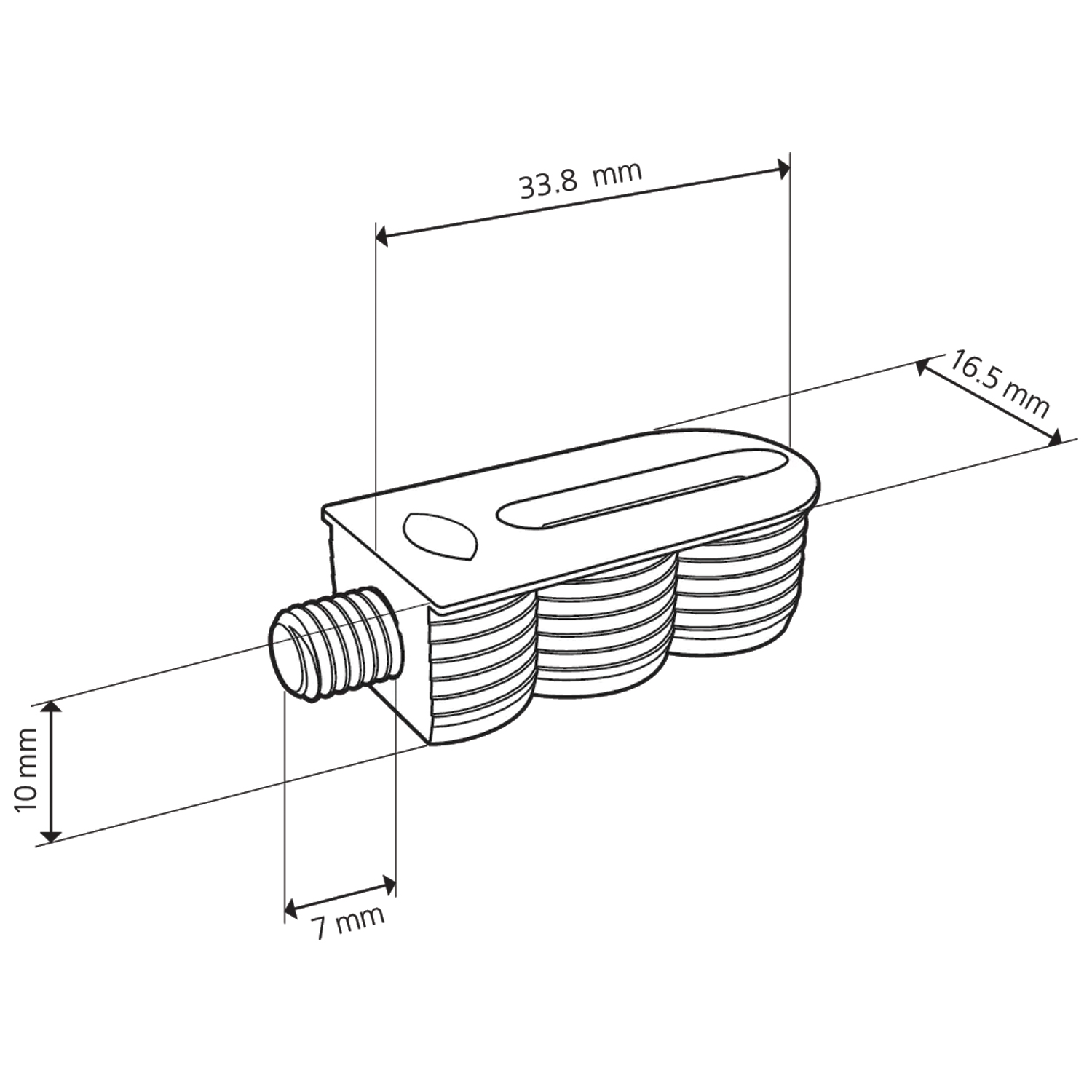

Size (mm): 33.8 x 16.5 x 10.8 mm
Cutter: ø 12 mm or smaller

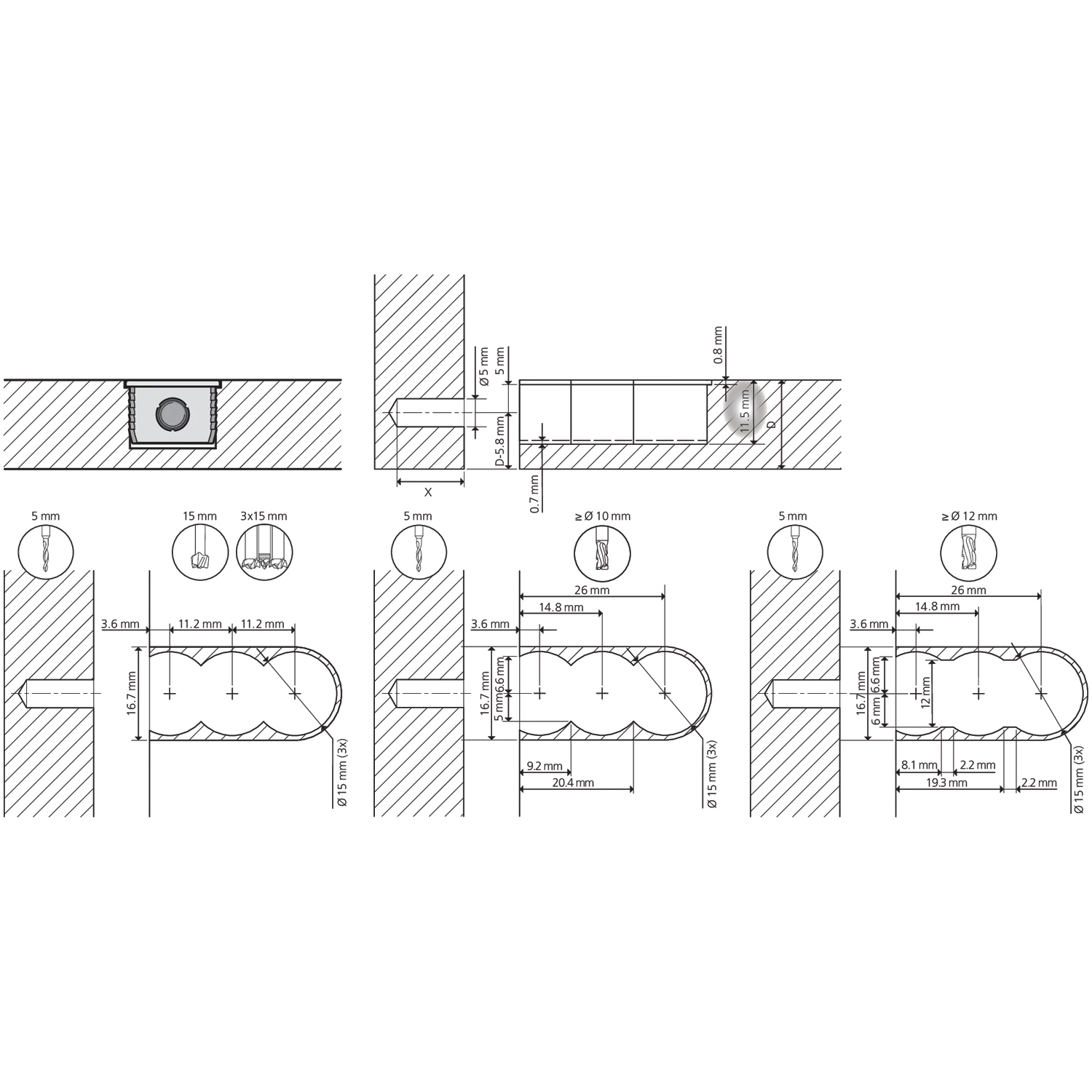

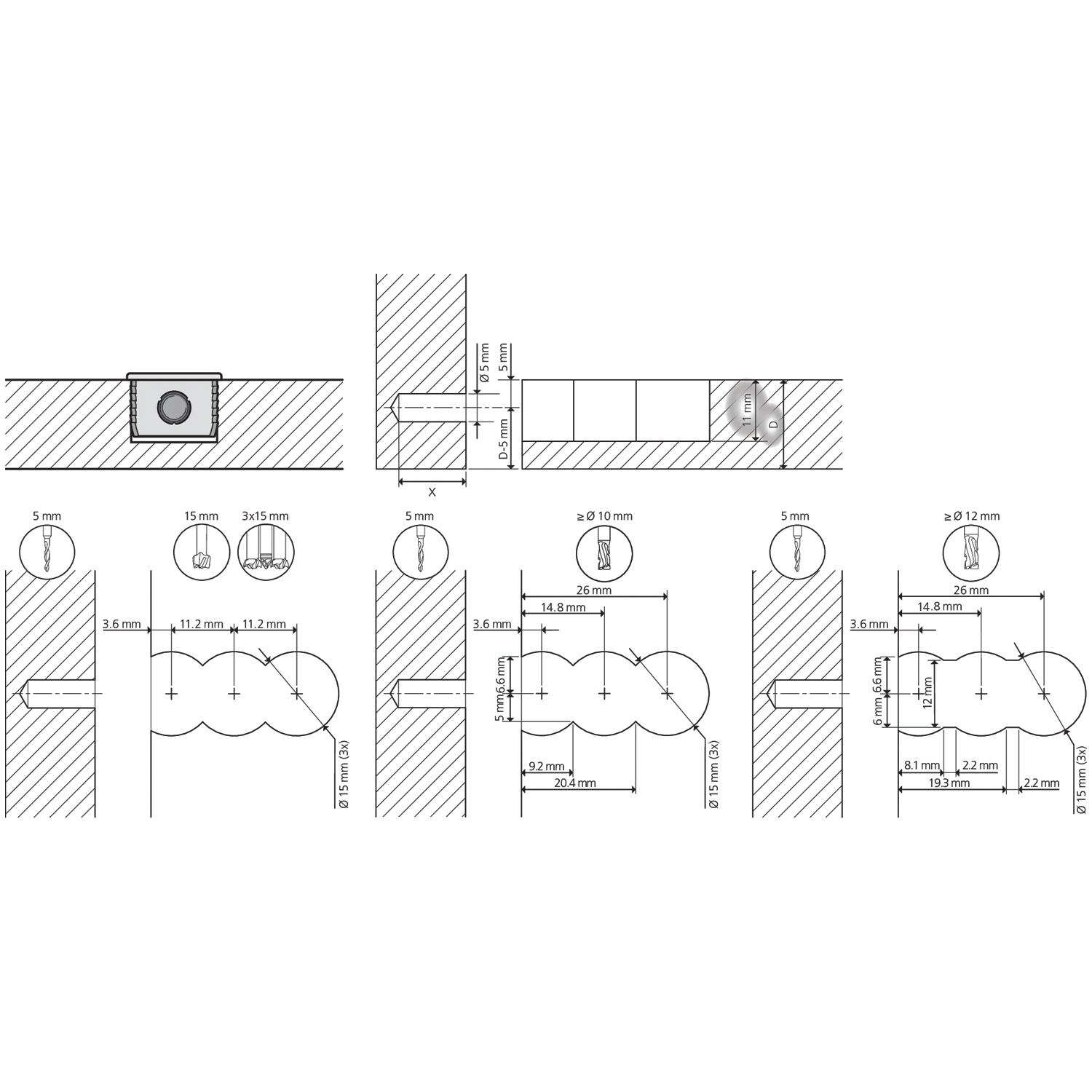

Drill: ø 5 mm and ø 15 mm
Material connector: Fibreglass reinforced plastic
Installation tolerance: Longitudinal ± 0.1 mm
Tensile strength: ~ 1700 N ≈ 170 kg
Genuine Lamello accessory from an authorised partner: 186306

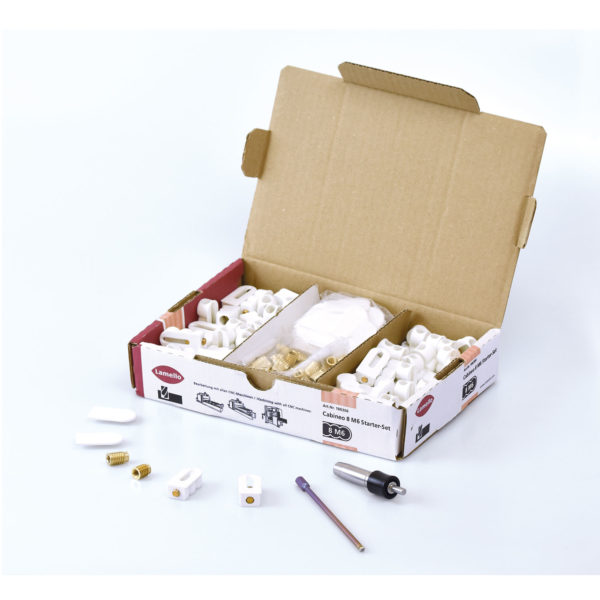

Included as standard: 80 x Cabineo 8 M6 Connectors, 40 x White cover caps, 40 x Insert nuts, 1 x Installation tool and 1 x Cabineo ¼” Hex driver bit
