Lamello Clamex P-14/10 Medius Detachable Connectors

Manufacturer: Lamello

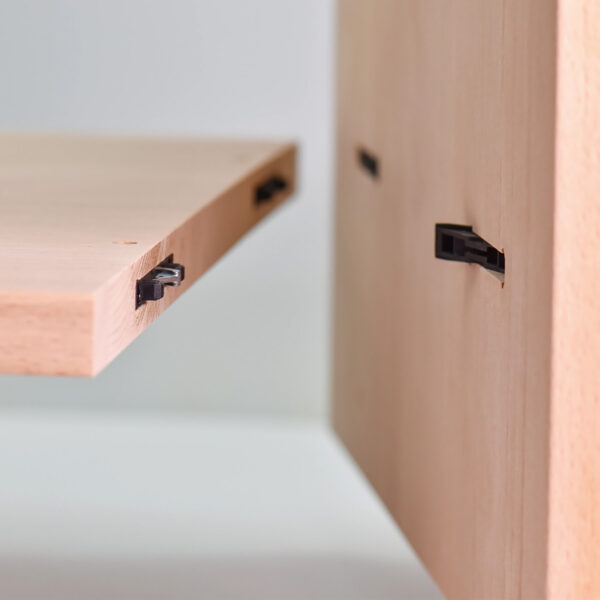

• Clamex P-14/10 Medius complements the Clamex P-14 connecting fittings for use in shelf units where two shelves meet the dividing panel at the same height.




  Read more

  Features:

  The dividing panel connection Clamex P-14/10 Medius consists of two parts with different installation depths.

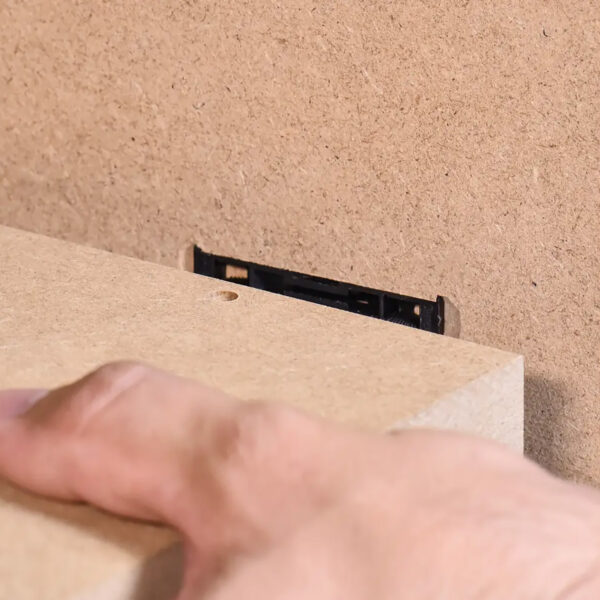

  The lever part is installed in the shelf, anchored in a 14mm deep P-System groove.

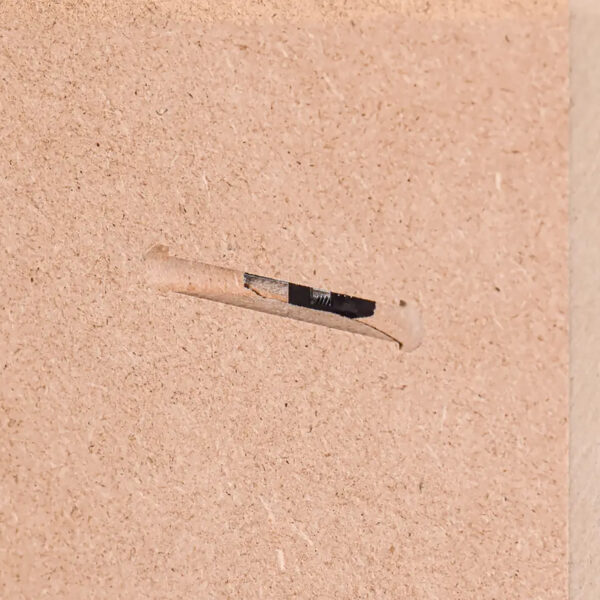

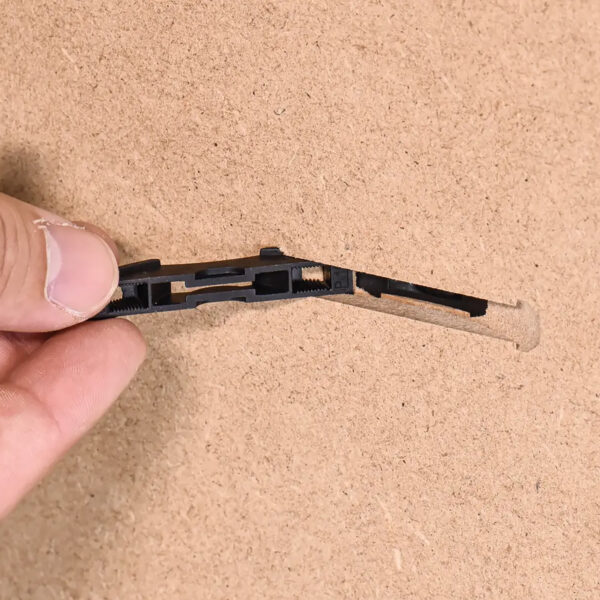

  Thanks to its installation depth of just 10mm and crescent-shaped cut out, the second part can be fitted back-to-back in a dividing panel measuring just 16mm.



  Specification:

  Tensile strength MDF: ~ 800 N ≈ 80 kg

  Tensile strength particle board: ~ 700 N ≈ 70 kg

  Tensile strength beech: ~ 900 N ≈ 90 kg

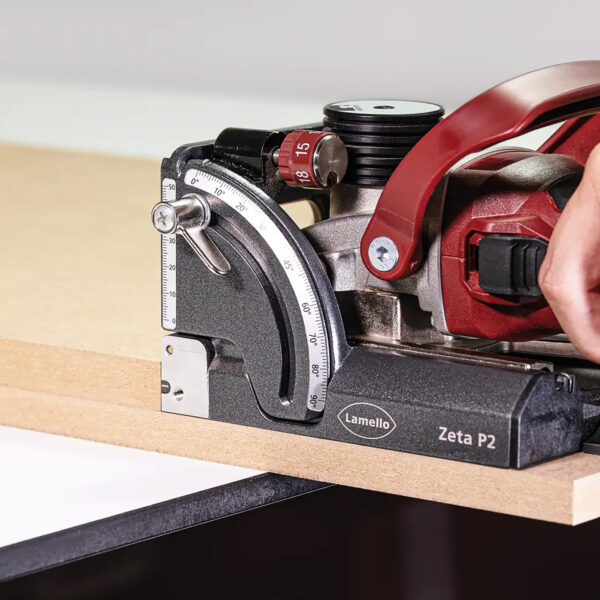

  Cutter: Ø 100.4 x 7 x 22

  Material connector: Fiberglass reinforced plastic

  Material lever: Zinc die cast

  Installation tolerance: Longitudinal ± 1 mm

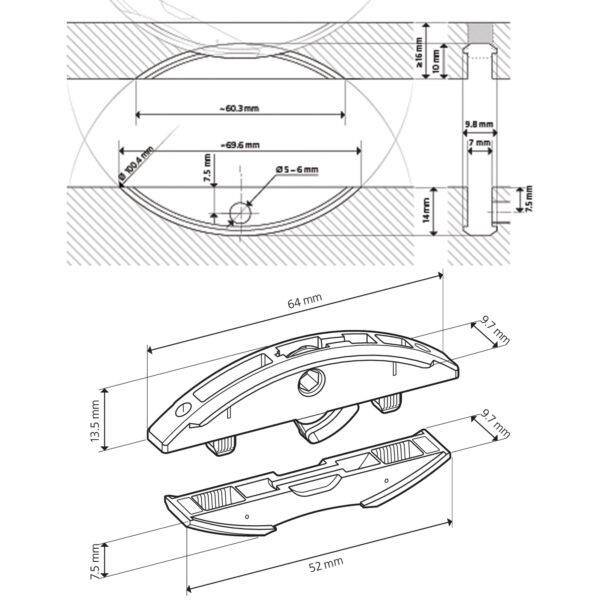

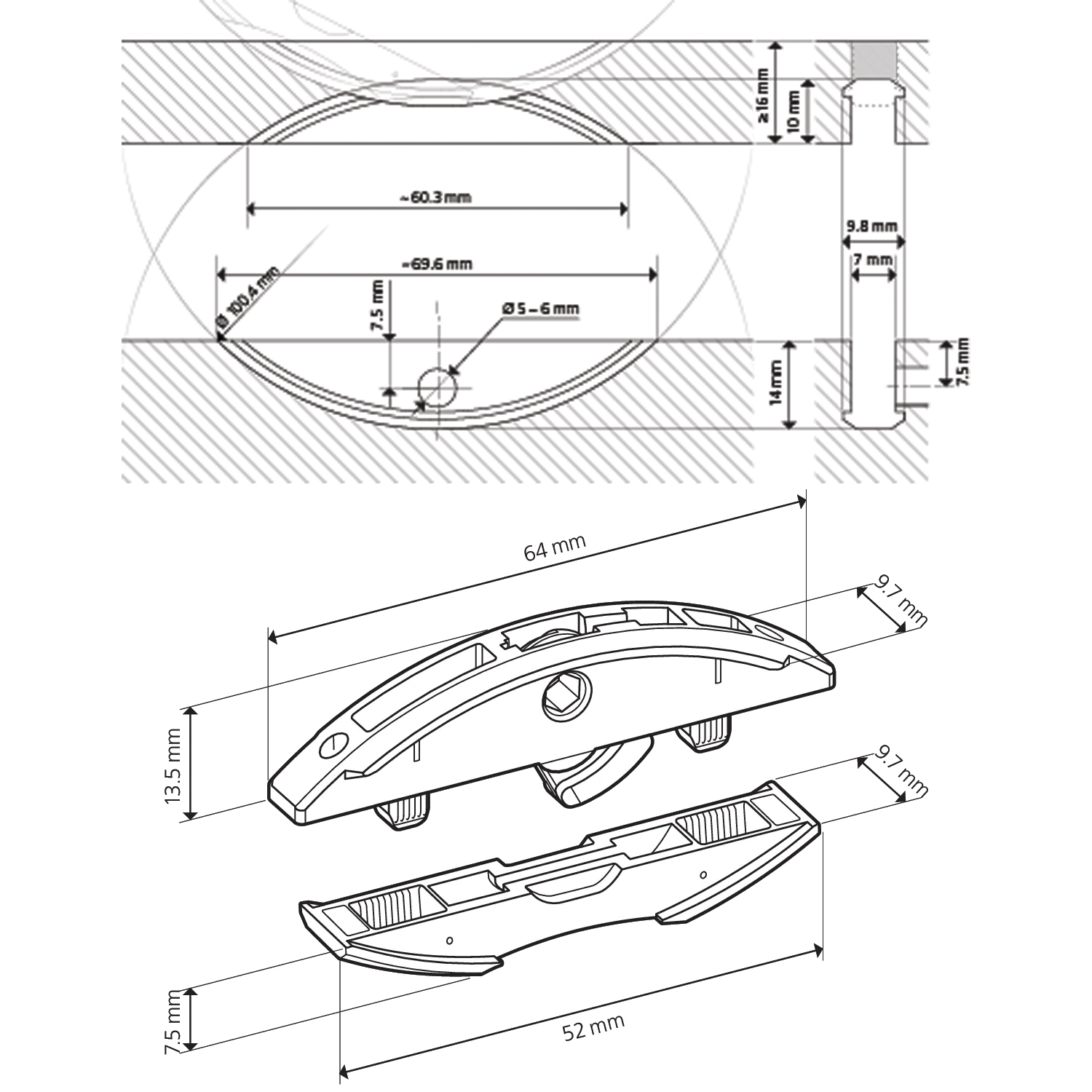

  Size (mm): 66 x 14.5 x 9.7mm, 52 x 7.5 x 9.7mm



  Genuine Lamello accessory from an authorised partner:

  145370 – Clamex P-14/10 Medius Centre Panel Detachable Connectors x80

  145371 – Clamex P-14/10 Medius Centre Panel Detachable Connectors x300

  145357 – Clamex P-14/10 Medius Centre Panel Detachable Connectors x1000
