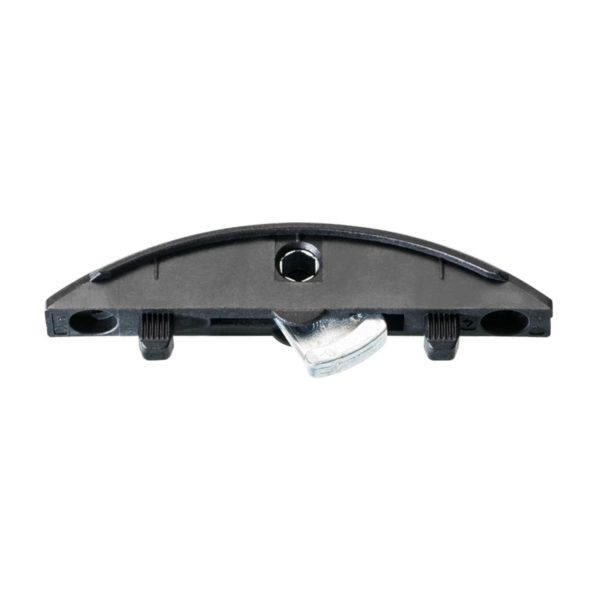

Lamello Clamex P-14 Connector Half with Lever

Manufacturer: Lamello

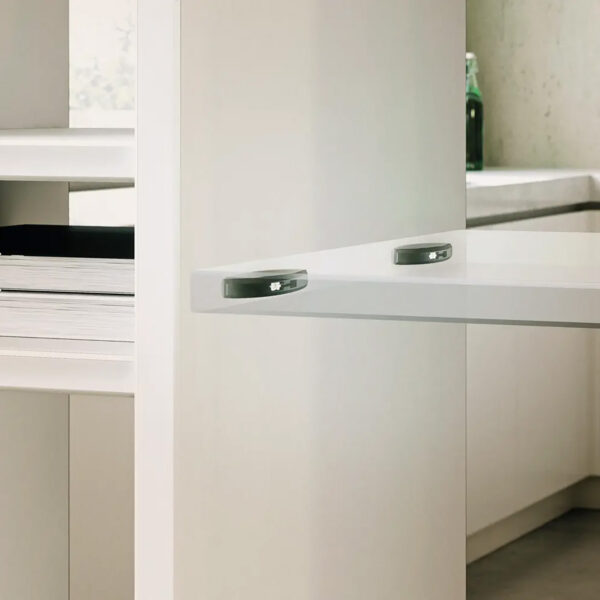

• Clamex P-14 is a detachable connector and is anchored in the form-locking P-System groove within seconds. Designed for use in shelf units where two shelves meet the dividing panel at the same height.




  Read more

  Features:

  The lever part is installed in the shelf, anchored in a 14mm deep P-System groove.

  Thanks to its installation depth of just 10mm and crescent-shaped cut out, the second part can be fitted back-to-back in a dividing panel measuring just 16mm.

  Specification:

  Tensile strength MDF: ~ 800 N ≈ 80 kg

  Tensile strength particle board: ~ 700 N ≈ 70 kg

  Tensile strength beech: ~ 900 N ≈ 90 kg

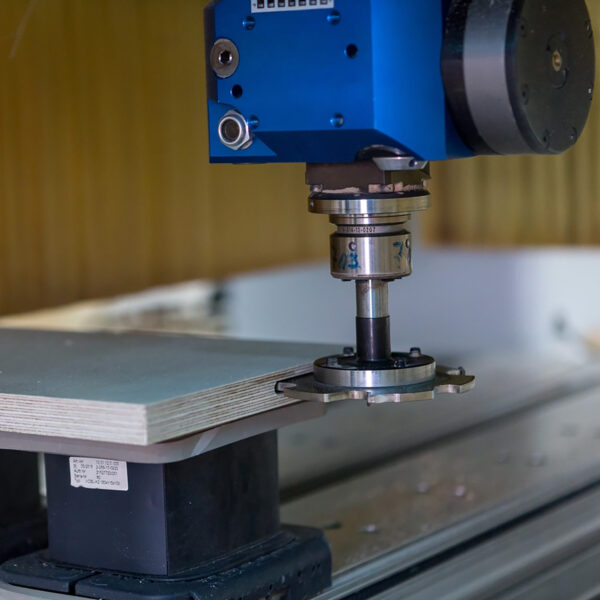

  Cutter: Ø 100.4 x 7 x 22

  Material connector: Fiberglass reinforced plastic

  Material lever: Zinc die cast

  Installation tolerance: Longitudinal ± 1 mm

  Size (mm): 66 x 14.5 x 9.7mm, 52 x 7.5 x 9.7mm

  Genuine Lamello accessory from an authorised partner: 145338
