Lamello Clamex P-14 Detachable Connectors

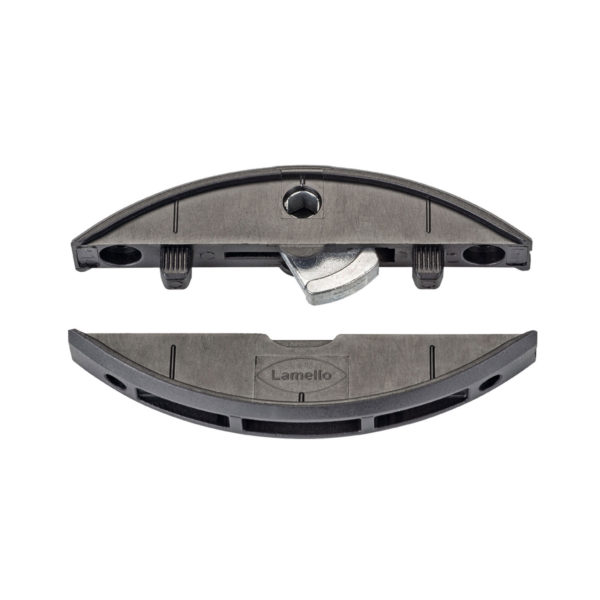

Clamex P-14 is a detachable furniture fitting on the basis of the P-System anchorage and is connected with a lever.

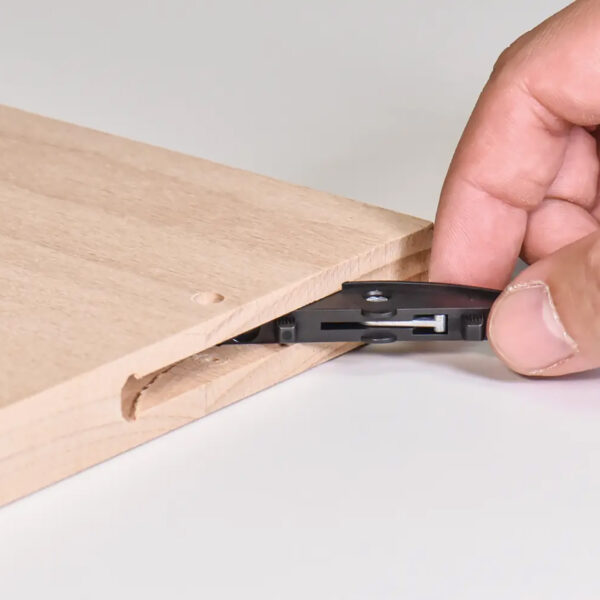

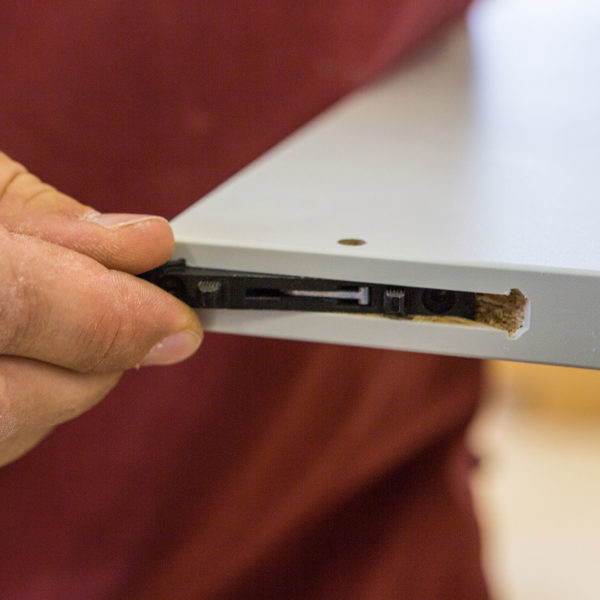

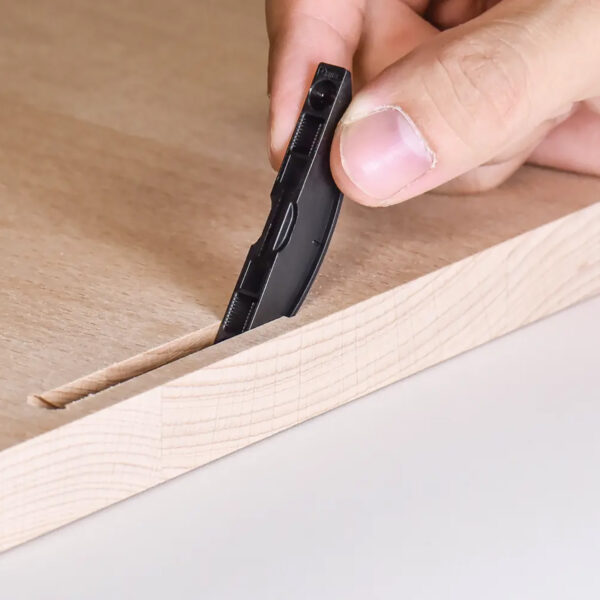

The form-locking P-System anchorage allows for an exceptionally fast and powerful anchorage in the work piece without tools.

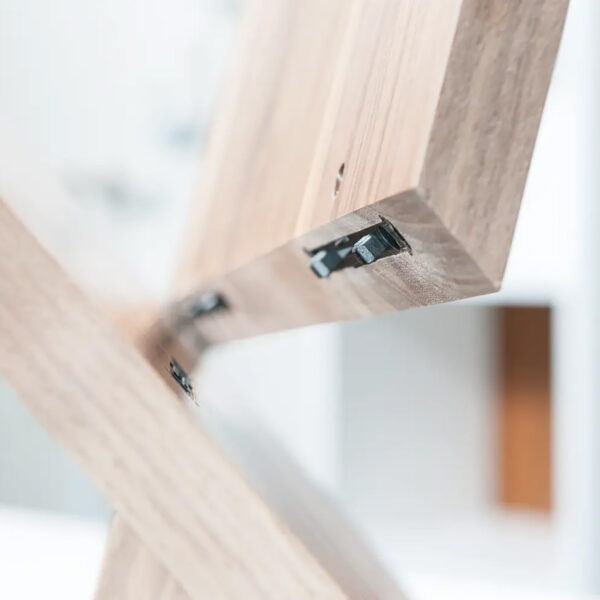

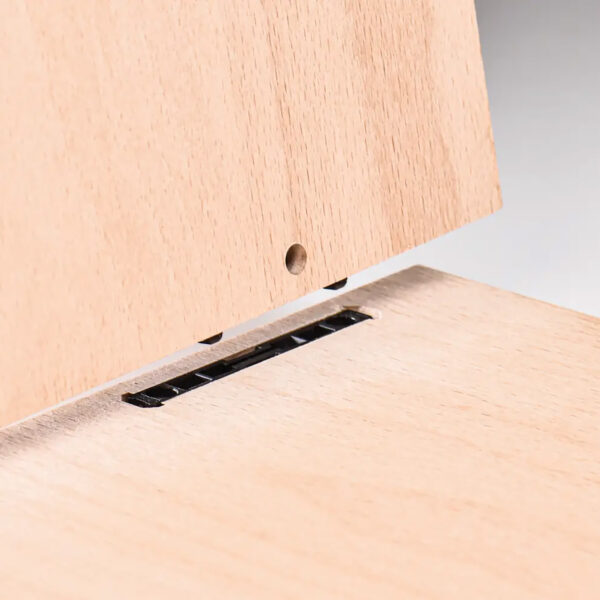

Clamex P needs neither glue nor screw, providing the woodworker with uncountable advantages in the production process and in the differentiation from standard furniture fittings. For example, Clamex P can serve to join either detachable or glued furniture mitres.
The small 6mm openings for hexagonal keys make the fitting unique and differentiate Clamex P from standard furniture fittings.
Tensile strength MDF: ~ 900 N ≈ 90 kg
Tensile strength particle board: ~ 800 N ≈ 80 kg
Tensile strength beech: ~ 1000 N ≈ 100 kg
Installation tolerance: Longitudinal ± 1 mm
Material lever: Zinc die cast
Material connector: Fiberglass reinforced plastic
Cutter: Ø 100.4 x 7 x 22
Size: 66 x 27 x 9.7 mm
Genuine Lamello accessory from an authorised partner:
145334 – Clamex P-14 Detachable Connectors x80
145346 – Clamex P-14 Detachable Connectors x300
145356 – Clamex P-14 Detachable Connectors x1000
