Lamello Divario P-18 Connectors

Manufacturer: Lamello

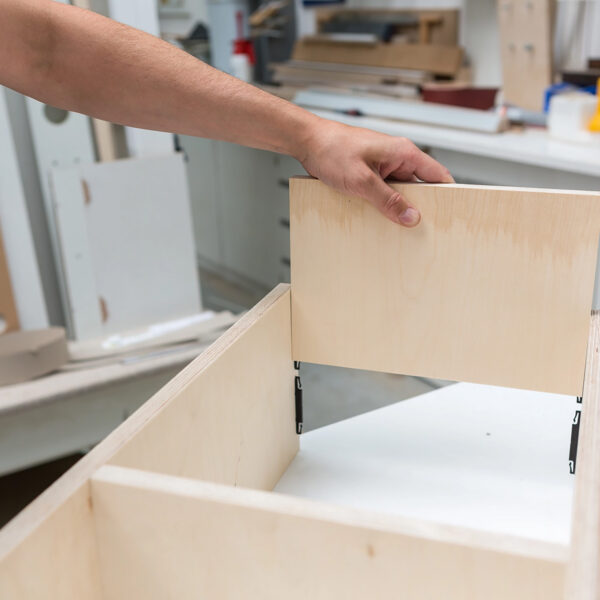

• With the Divario, shelves or separation walls can be inserted into pre-assembled structures. The Divario P-18 also clamps the components during insertion, creating clean tight joints.




  Read more

  Features:

  Joins and clamps during insertion for perfectly closed joints.

  Insertion of shelves after transport for lower transport weight.

  Efficient machining and installation with a CNC or a Zeta based on the P-System.

  Narrow element for the use in shelves from 19mm.

  Specification:

  Clamping force: ~ 150 N ≈ 15 kg / connector

  Tensile strength: ~ 250 N ≈ 25 kg / connector

  Size (mm): 75 x 25 9.7 mm

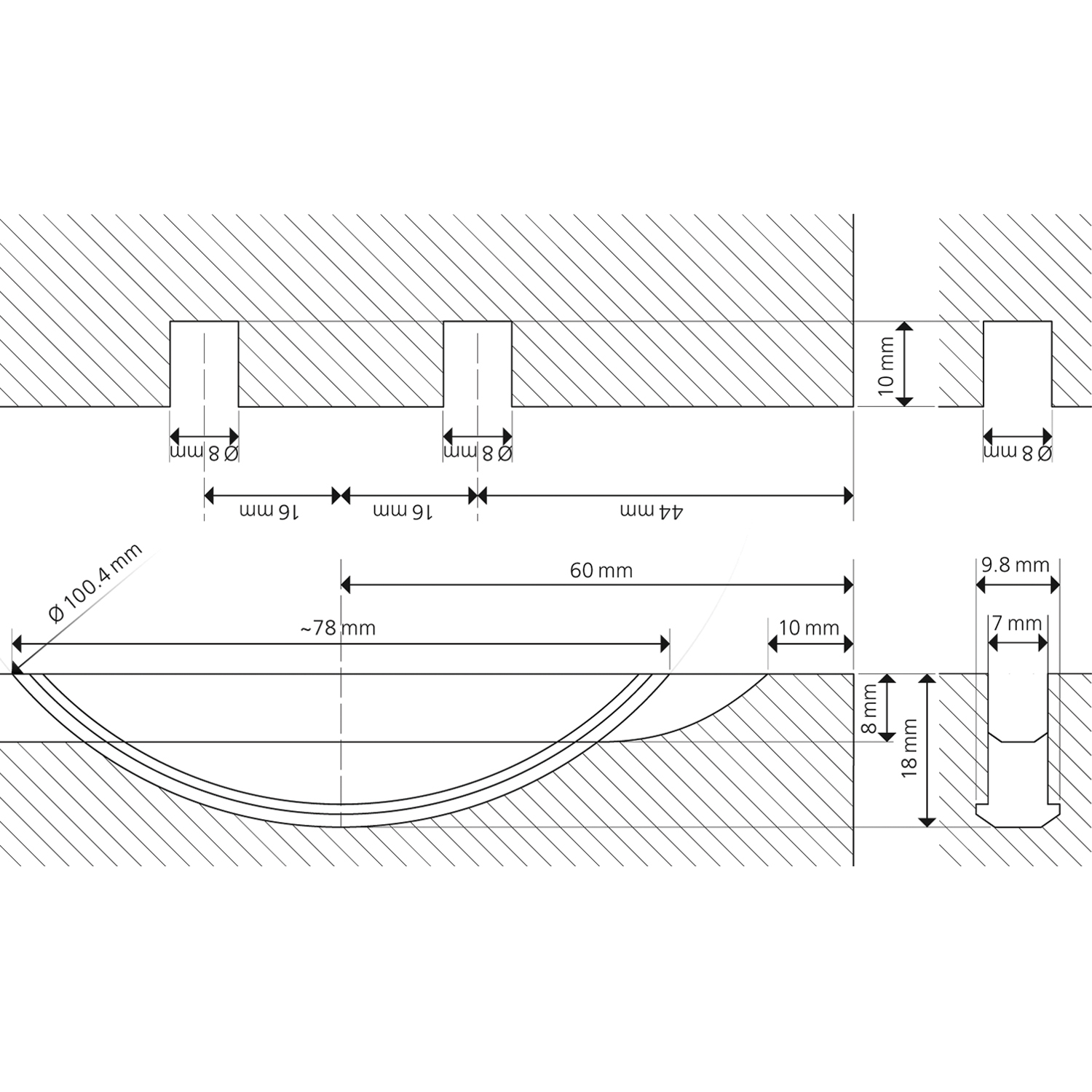

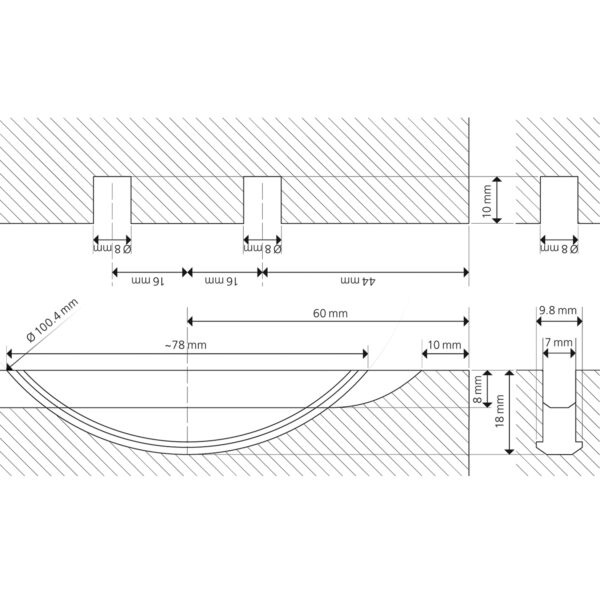

  Cutter: Ø 100.4 x 7 x 22

  Material connector: Fiberglass reinforced plastic

  Installation tolerance: Longitudinal ± 1 mm

  Applications:

  Furniture, interior design, shop fitting, exhibitions, book shelves, open room dividers, wine shelves etc.

  Genuine Lamello accessory from an authorised partner:

  145550 – Divario P-18 Self Clamping Slide Connectors x80

  145560 – Divario P-18 Self Clamping Slide Connectors x300

  145570 – Divario P-18 Self Clamping Slide Connectors x1000
