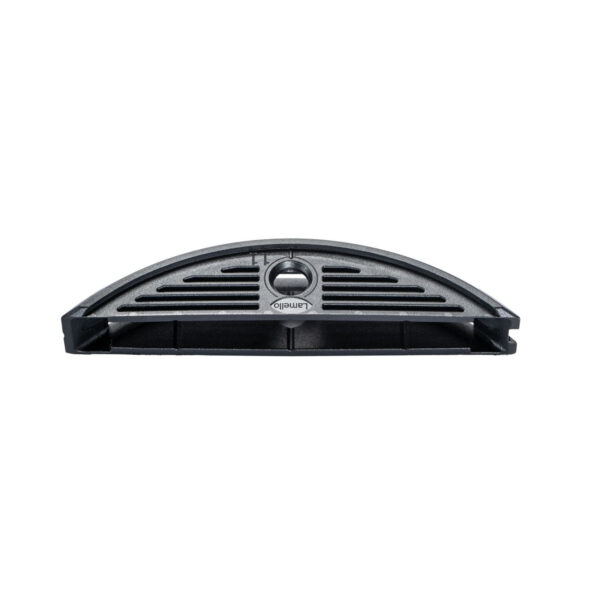

Lamello LC P-16 x 11mm Connectors

Manufacturer: Lamello

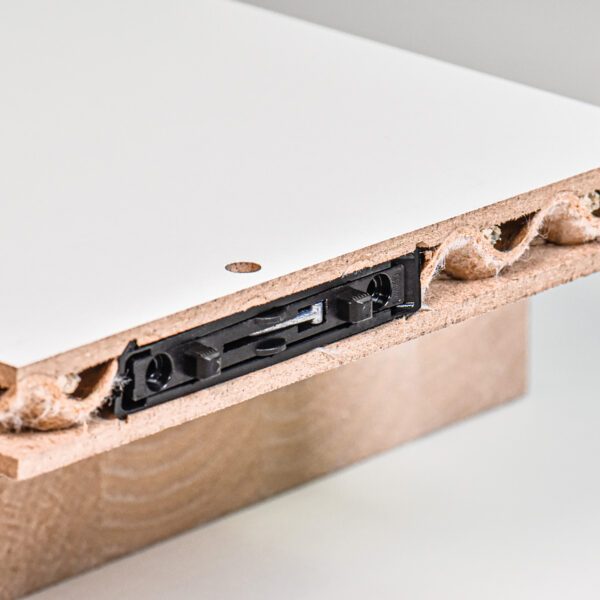

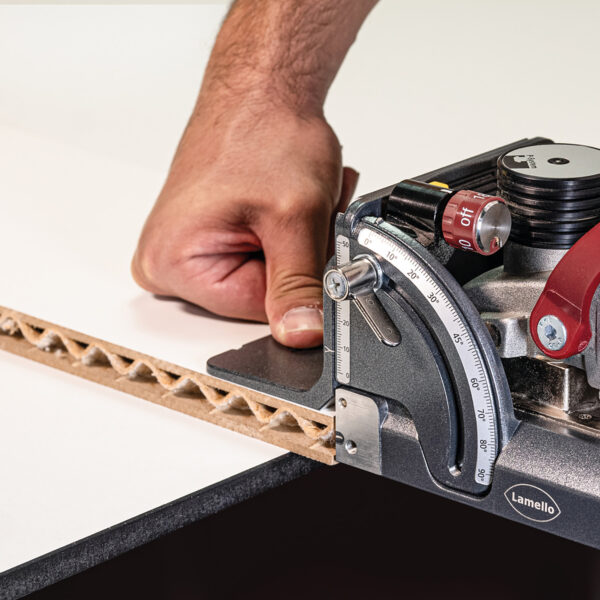

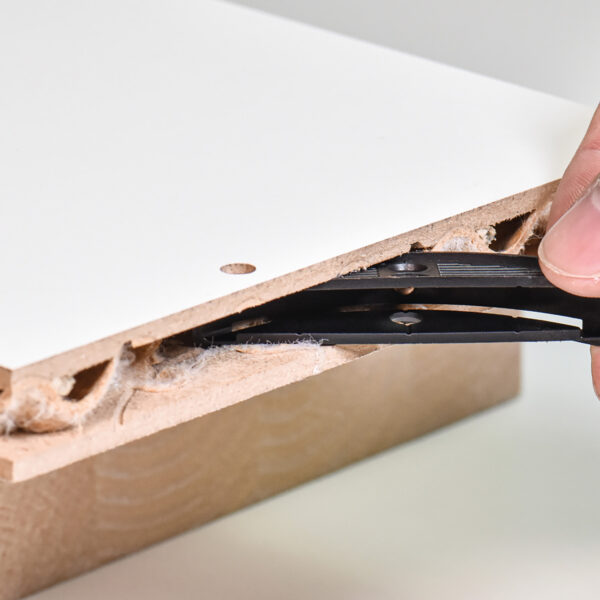

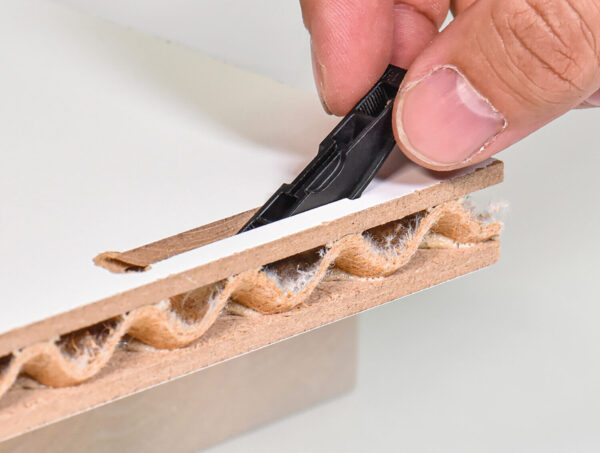

• Lamello LC P-16 x 11mm Connectors are part of The Lamello P-system. The integrated P-system groove makes it possible to slide in Clamex P connectors without the time-consuming use of concealed timber edges or glues. Machining with two or three machining steps is carried out either with the Zeta P2, or even, more efficiently with the CNC machining centre. The LC P-16 configurator determines the right product size and machining positions for the respective application. LC P-16 is only required for anchorage of the Clamex P-14 connector halves in the front side of the lightweight panel. The Clamex P-10 connector halves are pushed directly into the cover plate and anchored. Clamex P-14 Flexus or Clamex P-14 CNC can also be used in the LC-P16 instead of the Clamex P-14 connector halves. The Clamex P-10 connector halves are best suited as counterparts for the surface. If the surface layer is more than 4 mm, the Clamex P-14 connector half with its offset profile is also well suited.




  Read more

  Applications:

  For lightweight construction materials made of cardboard or plastic honeycomb, wood fibre shaft or hard foam (e.g. XPS) ) with surface layers made of wood composites (e.g. MDF, HDF, chipboard, HPL).

  For light chipboard with a weak middle layer with additional fastening using glue channels.

  For use in interior fittings for large shelves or sideboards, mounted floating on a wall.

  To be used in furniture-making for wide shelves with a span of more than 1 m due to the high rigidity.

  In trade fair construction or shopfitting to reduce transport weight, ideal for flat-pack furniture.

  Camper vans and motor homes, caravans.

  Vehicle and boat interiors.

  Butt joints from a material thickness of 12 mm.

  Surface connections from 16 mm.

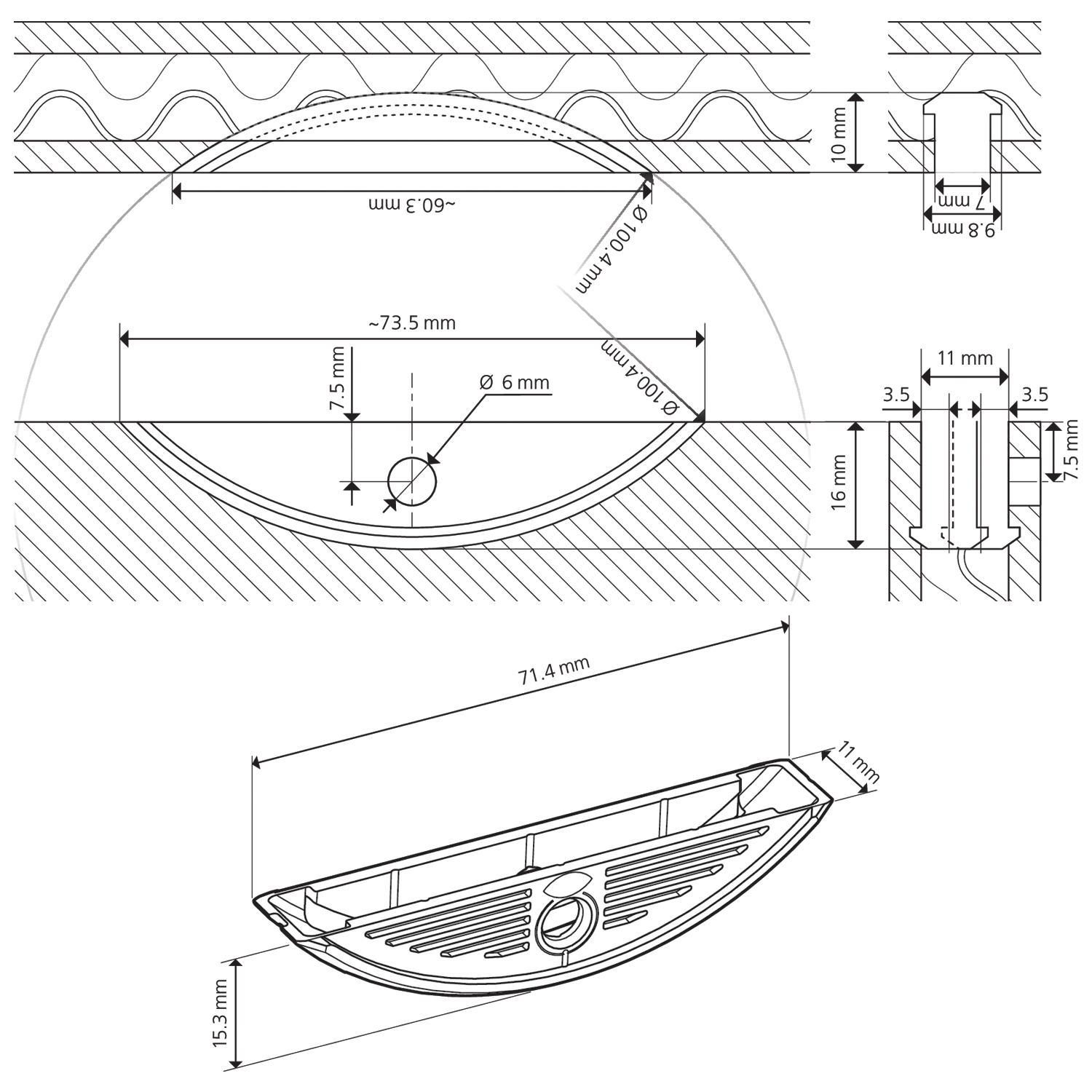

  Specification:

  Installation tolerance longitudinal	± 1 mm
  Installation tolerance radial	± 1 mm
  Minimum workpiece width	73.5 mm
  Minimum material thickness for edge cuts	16 mm
  Minimum material thickness for surface cuts	12 mm
  Minimum material thickness for centre wall machining	19 mm
  Adjustment Lamello-System	Max.
  Adjustment P-System	P-16
  Tensile strength in particle board	460 N
  Tensile strength in MDF	680 N
  Shear strength in particle board	630 N
  Shear strength in MDF	640 N

  145710: Lamello LC P-16 x 11mm Connectors x80

  145711: Lamello LC P-16 x 11mm Connectors x1000

  Included as Standard: 1 x Allen Key & 1 x Depth Adjuster Cap.

  Genuine Lamello accessory from an authorised partner: 145710, 145711
