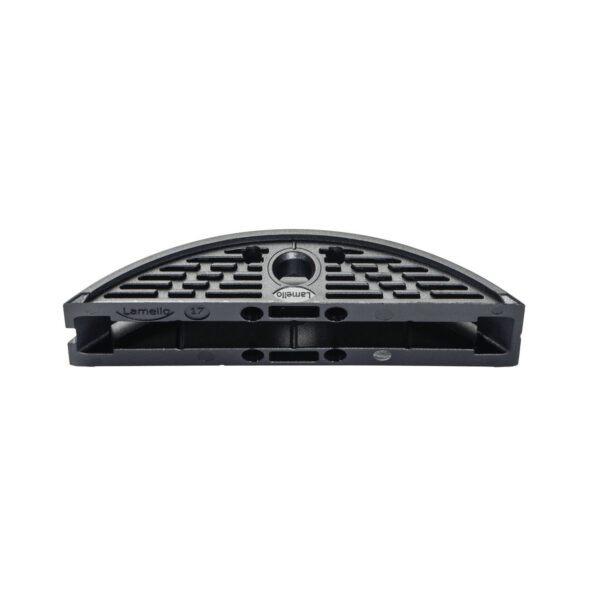

Lamello LC P-16 x 17mm Connectors

Manufacturer: Lamello

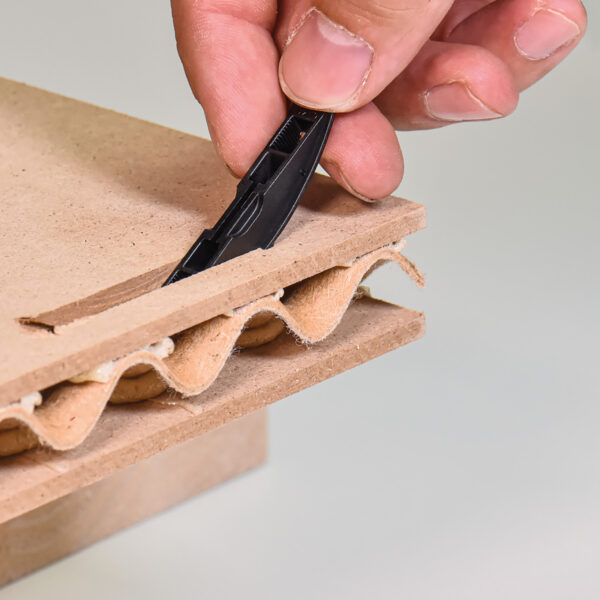

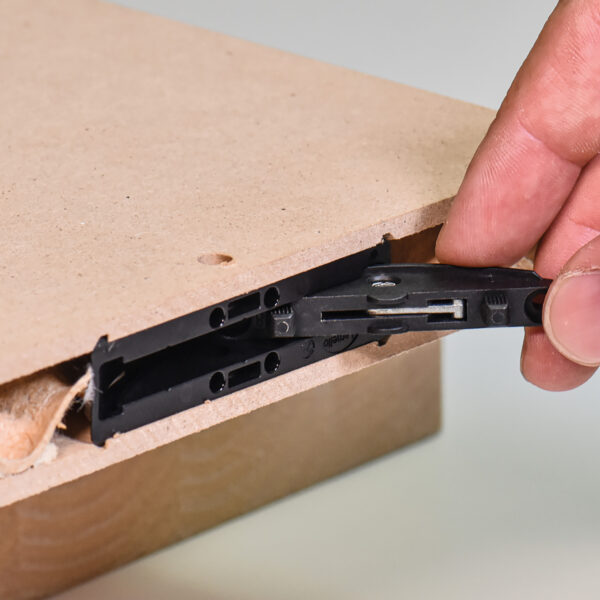

• Lamello LC P-16 x 17mm Connectors are part of the Lamello P-system. The integrated P-system groove allows for the slide-in of Clamex P connectors without the time-consuming use of concealed timber edges or glues. Machining with two or three machining steps is carried out either with the Zeta P2 or, even more efficiently, with the CNC machining centre. he LC P-16 configurator determines the right product size and machining positions for the respective application. LC P-16 is only required for anchorage of the Clamex P-14 connector halves in the front side of the lightweight panel. The Clamex P-10 connector halves are pushed directly into the cover plate and anchored. Clamex P-14 Flexus or Clamex P-14 CNC can also be used in the LC-P16 instead of the Clamex P-14 connector halves. The Clamex P-10 connector halves are best suited as counterparts for the surface. If the surface layer is more than 4 mm, the Clamex P-14 connector half with its offset profile is also well suited. The Clamex P-10 Medius connector half without lever also works, but is less well guided when sliding in due to its recess on the back. Other suitable P-system connectors for glued joints are Tenso P-14 or Bisco P-14.




  Read more

  Application:

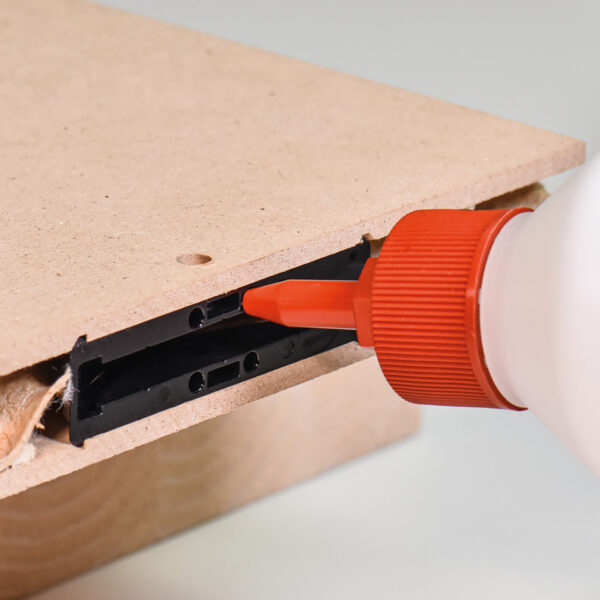

  For lightweight construction materials made of cardboard or plastic honeycomb, wood fibre shaft or hard foam (e.g. XPS) ) with surface layers made of wood composites (e.g. MDF, HDF, chipboard, HPL).For light chipboard with a weak middle layer with additional fastening using glue channels.In interior fittings for large shelves or sideboards, mounted floating on a wall.

  In furniture making for wide shelves with a span of more than 1 m due to the high rigidityIn trade fair construction or shopfitting to reduce transport weight, ideal for flat-pack furniture.Camper vans and motor homes, caravans.Vehicle and boat interiors.Butt joints from a material thickness of 12 mm.Surface connections from 16 mm.

  Specification:

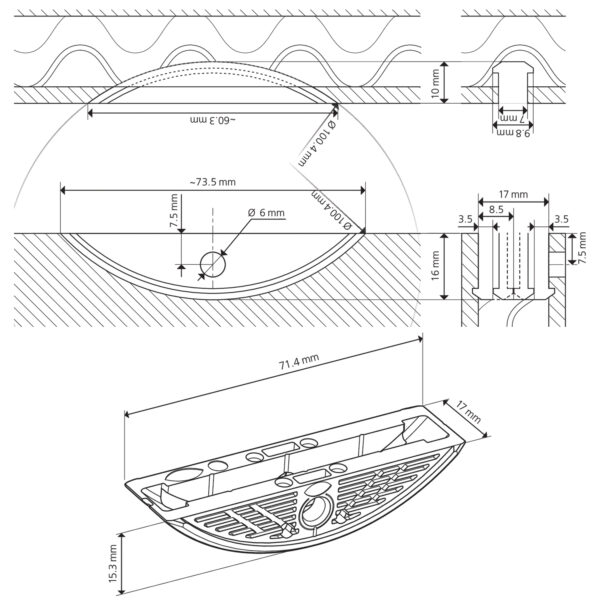

  Installation tolerance longitudinal	± 1 mm
  Installation tolerance radial	± 1 mm
  Minimum workpiece width	73.5 mm
  Minimum material thickness for edge cuts	22 mm
  Minimum material thickness for surface cuts	12 mm
  Minimum material thickness for centre wall machining	19 mm
  Adjustment Lamello-System	Max.
  Adjustment P-System	P-16
  Tensile strength in particle board	410 N
  Tensile strength in MDF	670 N
  Shear strength in particle board	440 N
  Shear strength in MDF	730 N

  145720: Lamello LC P-16 x 17mm Connectors x80

  145721: Lamello LC P-16 x 17mm Connectors x1000

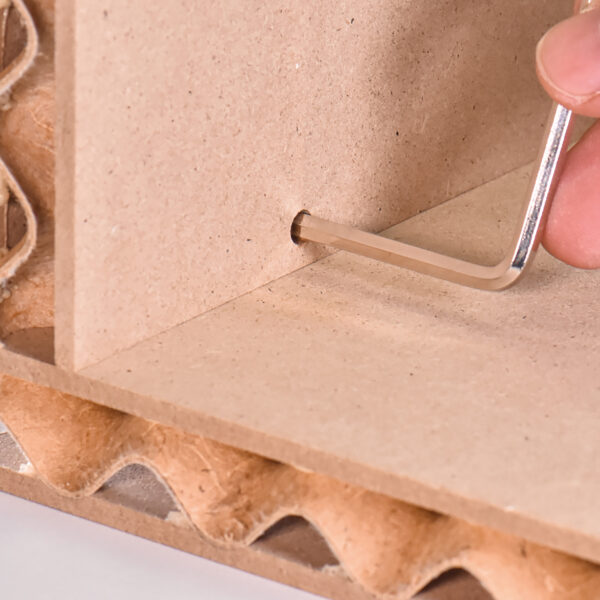

  Included as Standard: 1 x Allen Key & 1 x Depth Adjuster Cap.

  Genuine Lamello accessory from an authorised partner: 145720, 145721
