Lamello Zeta P2 P-System Pro Set c/w Diamond & TCT Blades

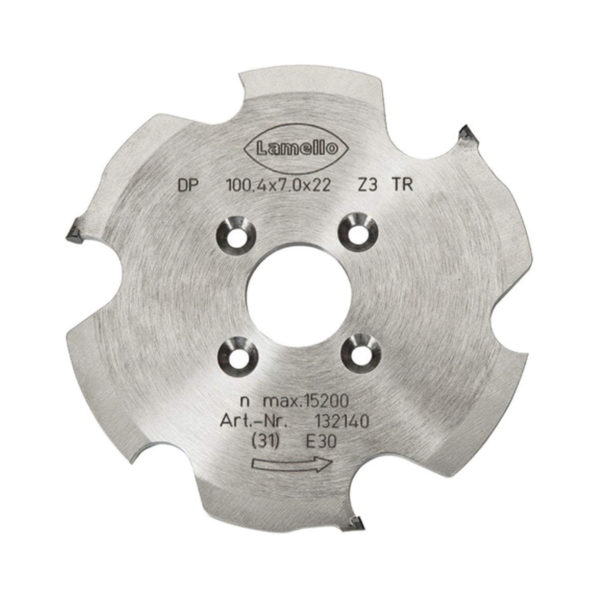

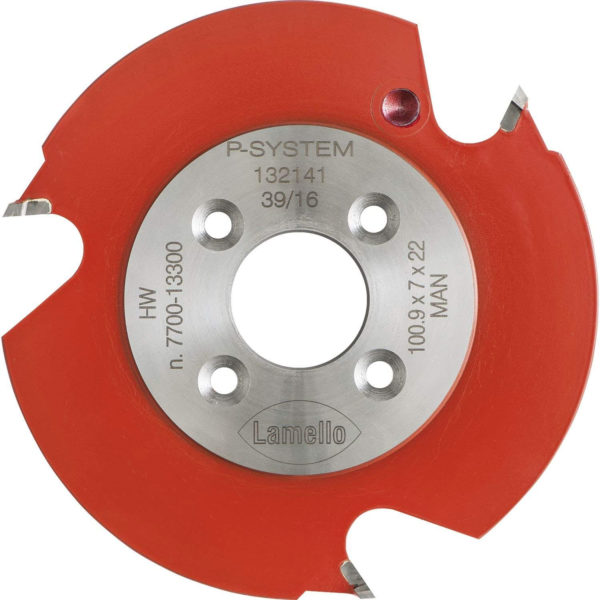

The Lamello Zeta P2 Jointing system Pro Set comes complete with both a TCT and a Diamond blade, in addition to the connector assortment systainer. This Pro Set has all you’ll need for jointing any kinds of wood.
The Lamello Zeta P2 is far more than a standard biscuit jointer, with an undercut function to allow for the fitting of special concealed Clamex P connectors that slide into the ‘T’ slot produced.
The connector also clamps, so no additional clamping methods are required. Almost totally concealed, the only visible sign is a single 6mm hole, making it ideal for many applications such as furniture, shop fitting and exhibitions. It is also suitable for solid wood and man-made boards, overcoming many design issues.
Unique to Lamello, the jointer has a special vertical mechanical drive (VMD) engaging when the jointer is at full plunge, moving the cutter up and down in one full turn and only then disengaging to produce the ‘T’ slot to accept the special Clamex biscuit. The undercut function can be switched off and a 7mm slot will be produced; a ‘Bisco’ biscuit can then be used. Replace the special blade with a 4mm biscuit blade and use as a standard biscuit jointer. The new P-System depth adjuster has five settings for the ever growing range of Clamex connectors and when used with a standard biscuit jointing blade.
As with all Lamello products, design and build are of the highest quality. Other features include precise plunge with clear depth setting and jointer fences with flush sides to make positioning simple; the fence fits with ‘V’ grooves for accuracy and clear angle scale.
Approximately 2 minutes to make a joint with 2 connectors
Fast, easy and precise working, with the well-established Lamello principle.Same cutting depth for both workpieces, saves the time for changing the setting and makes mistakes less likely.Time saving when installing fittings due to the innovative profile groove concept which saves labour cost as well as the cost for glue or screws.Future time saving with every new joining element of the P-System family.Turn off the VMD to use the Lamello Zeta P2 as a standard biscuit joiner.Lamello supply detachable connection for ready-to-assemble furniture in the form of the Clamex.
Installation within seconds, by hand without tools.
Joins and aligns, 2 functions in one connector.
Mitre joints in all angles are possible.
Installation tolerance lateral +/- 1.0 mm (max. +/- 1.5 mm).
All kinds of connections
All kinds of installations

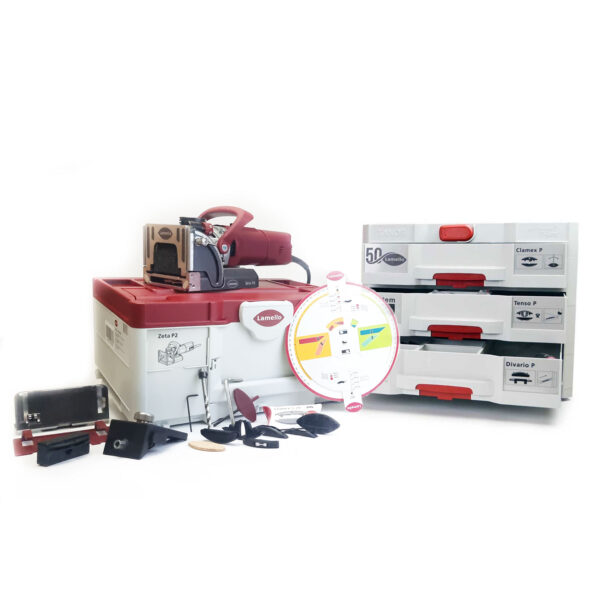

Lamello Pro P-System connector assortment systainer set contents:
120 pairs Clamex P-14
30 pairs Clamex P Medius
30 pairs Clamex P-10
80 pairs Tenso P-14 including preload clip
30 pairs Tenso P-10 including preload clip
20 pieces Bisco P-14
20 pieces Bisco P-10
80 pairs Divario P-18
Divario Installation Tool/Marking Gauge
Clamex P Installation Tool
Included as Standard:
Stop square, Suction stub 23mm, Suction stub 36mm, Spacer 4mm, Spacer 2mm, Drill jig incl. drill for Clamex P-10 & P14, Systainer and Lamello Pro P-System connector systainer set.
