Mafell DDF40 MaxiMAX 3-12mm Duo Dowel Jointer

Calculating latest stock

Klarna 0% finance available on orders over £99 inc. vat

Product Overview

Manufacturer: Mafell

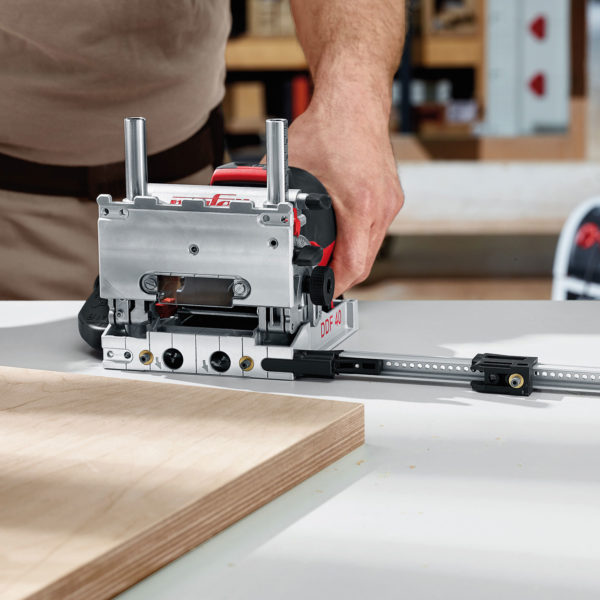

  • The Mafell DDF40 MaxiMAX 3-12mm Duo Dowel Jointer introduces greater ease and efficiency to the task of drilling accurate dowel holes. Its hallmarks are a broad range of applications, a new ergonomic design for easy handling, and absolutely aligned, stable joints.


    Whether in the workshop or on site, no other hand-held power tool can produce such high-quality joints.

    When producing corner joints, partitions or rows of holes, the Mafell Duo Doweler DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with standard wooden dowels.

    In addition, the technique of using dowels in pairs already achieves outstanding stability at the dry assembly stage.

    The rotary knob and scale allow the tilting fence to be accurately repositioned up to a height of 62 mm (2 7/16 in.) . Regularly occurring dimensions can be preset by way of the turret.

    Two spring-loaded pins in the baseplate enable the user to drill holes at a fixed distance of 15,5 mm (5/8 in.) from the edge of the work; repetitive drilling without any measuring or marking is simple.

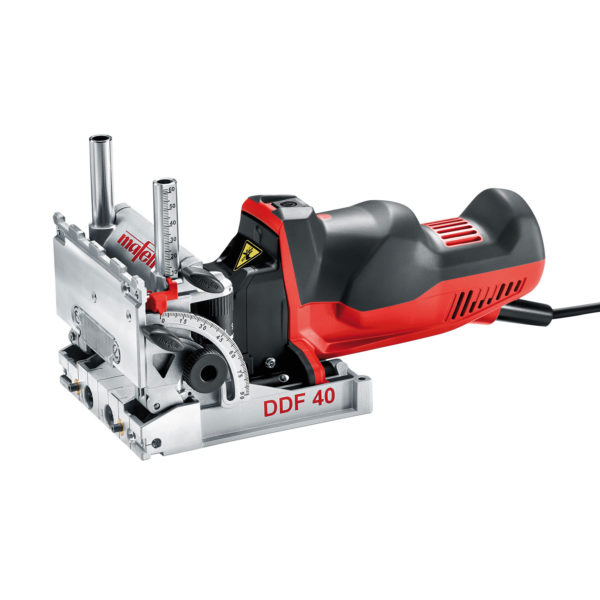

    The ergonomic motor housing, with a moulded grip at the front and a hump at the rear, gives the operator a perfect hold no matter what the job, while ensuring the ideal transmission of force to the machine.

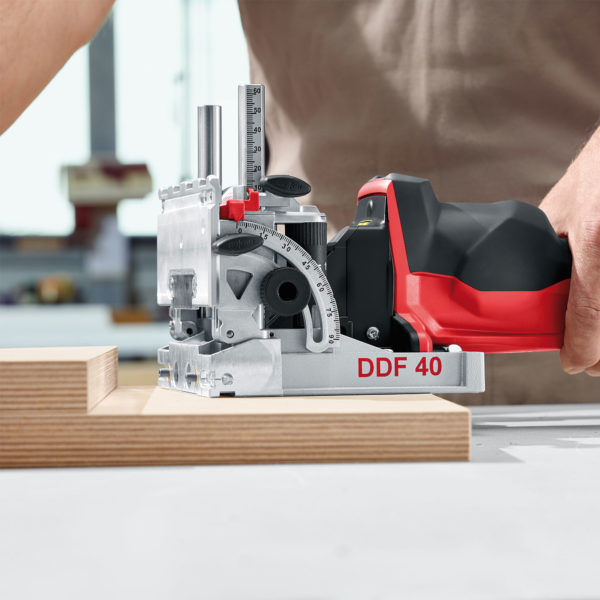

    The tilting fence is located on two columns and fastened with a single adjusting screw. For miter joints, it tilts continuously from 0 through 90 degrees. Indexing stops are provided at 22.5°, 45° and 67.5°.


    Rows of holes.

    Drilling for fittings/hardware.

    Ideal for carcass and staircase construction in the workshop and on site.

    Compatible materials include solid wood and board materials.

    All types of joints from 3 – 12 mm (1/8 in. – 1/2 in.).


    Input: 900W

    Chuck Capacity: 8mm

    Drilling Depth: 0 – 40mm

    Drilling Spacing: 32mm

    Tilt range: 0 – 90 °

    Weight: 2.8kg

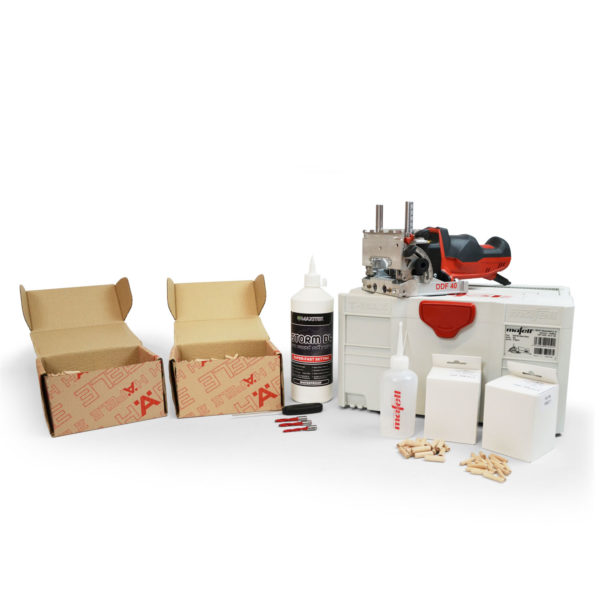

    Included as Standard: 2 x 6mm Carbide Dowel Drills, 2 x 8mm Carbide Dowel Drills, 6 x 30mm Wooden Dowels, 8 x 30mm Wooden Dowels, Auxiliary Rest, Set of Additional Stops, Hose Connector, Side Fence Set, Stop Pin Insert for Battens, Position Indicator, Allen Key, Glue Bottle, Dowel Nozzle 8mm, Anti-Slip Mats, T-MAX Case, Power Lead & Systainer.

    3 Years Warranty on all Mafell Power Tools when registered.
