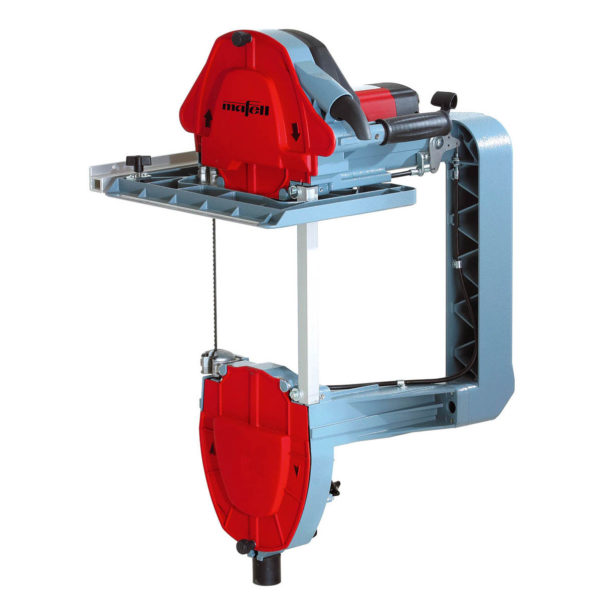

Mafell Z5 EC Portable Bandsaw

Calculating latest stock
Code: 34328
Part No: Z5EC240MAF
Order For Delivery
Select the required delivery time and method at checkout.
Allow 2-3 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£4,399.00 each
exc. VAT
£5,278.80 each
inc. VAT
Add to order

Product Overview

Manufacturer: Mafell

  • Mafell Z5EC Bandsaw offers an impressive cutting depth of 305mm. The precision that typifies Mafell portable bandsaw enables the Z 5 Ec to execute extremely clean and perfectly square cuts.


    The Z 5 Ec portable bandsaw is the innovative successor to the legendary Z 3. Owing to a new, high-output motor and magnesium die-cast components, its persuasive benefits includes reduced weight, enhanced performance, higher torque and excellent handling.

    Exclusive with ball bearing saw band guidance for excellent band running and thus for optimum cutting. Maximum 8 mm saw bands for optimum flexibility when curving and profiling purlins and rafters.

    The cooling air of the high-performance motor is utilized to blow away dust from the mark. Consequently, chips are kept well away from your head and you maintain a clear view of the mark at all times.

    The back-toothed blade facilitates retraction from the cut, which is especially easy if the blade is locked by the mechanical brake.

    With a spring-mounted and tensioned idler wheel, changing blades is an easy and quick procedure.

    With voltage loss switch for protection against uncontrolled reconnection after a power interruption.

    The unique tilting blade guide allows right-angle cuts to be made up to 90 mm deep without the opposite side of the blade touching the wood, e.g. when cutting lapped joints.

    Main Applications:

    Rip cuts and cross-cutting.

    Curving and profiling.

    Birdsmouth cuts and lap joints.

    Compound miter cuts and angled birdsmouths (two-man operation).

    Compatible materials include solid wood and laminated beams.


    No load speed:  650 – 1550rpm

    Cutting depth: 305mm

    Tilt Range: 0 – 30°


    Weight: 13.6kg

    Included as standard: 1 x 8mm Saw Band 4T per inch with front and rear cutting teeth, 1 x 8mm Saw Band 4T, 1 x 6mm Saw Band 4T, Handle, Parallel Guide Fence & 10m Mains Cable.

    3 Years Warranty on all Mafell Power Tools when registered.
