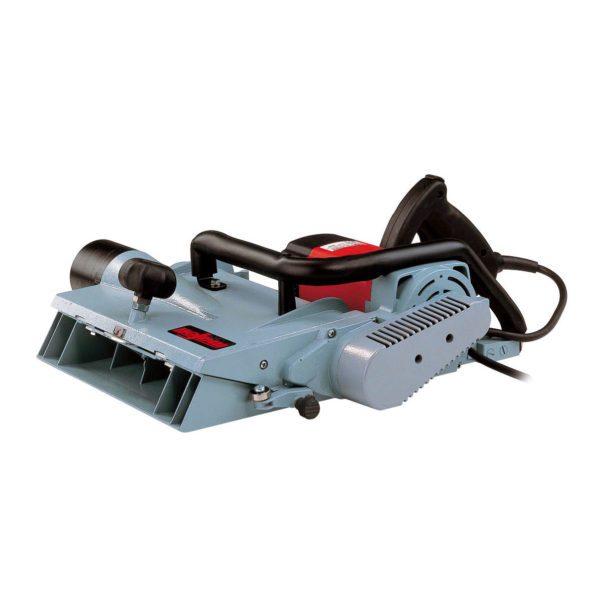

Mafell ZH 320EC 320mm Carpentry Planing Machine

Calculating latest stock
MAFELL 924401 320MM PLANING M/C 240V
Code: 34678
Part No: ZH320EC240MAF
Order For Delivery
Select the required delivery time and method at checkout.
Allow 2-3 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£4,095.00 each
exc. VAT
£4,914.00 each
inc. VAT
Add to order

Product Overview

Manufacturer: Mafell

  • The Mafell ZH32 Planer has a high-quality standard which means lower machine costs and longer service life.


    The new chip ejector with excellent chip removal via enhanced air flow and new air duct makes blockages due to wet chips a thing of the past!

    Thanks to the development of the 2700W motor, it is now possible to achieve a 320mm planing width with a light current motor.

    Due the consistent lightweight design, the solid cast construction weighs only 14kg.

    As with most Mafell machines, the intelligent control electronics keep watch in the background. For smooth start-up and constant speed under load, speed reduction to protect the machine without load and overload protection.

    After switching off, the highly efficient tool brake stops the cutter head in seconds. Just a detail, but important for your continued safety after planing.

    Main Applications:

    Cutting width up to 320mm.

    Compatible materials include solid wood.


    Input: 2700W

    Planing Width: 320mm

    Planing Depth: 0 – 3mm

    Cutter Headø: 74mm

    No Load Speed: 8500rpm

    Weight: 14kg

    Included as Standard: Pair of Reversible HL Knives, 8mm Single-End Spanner & 10m Mains Cable.

    3 Years Warranty on all Mafell Power Tools when registered.
