Features:

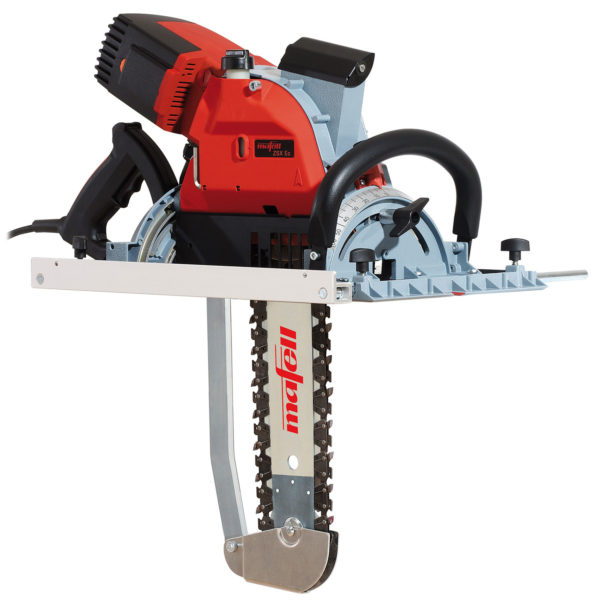

The ZSX Ec can be tilted on both sides to 60°. The ability to precisely set a wide range of working angles in opposing directions offers maximum convenience.
The generously dimensioned and adjustable chip ejector performs extremely efficiently.
Automatic chain lubrication with adjustable speed to eliminate oil spillage on timber.
Like all our portable circular carpentry saws, the ZSX Ec also uses our guide rail system.
Equally adapted for operation by either right-handed or left-handed users. The ergonomically designed handle and switch arrangement always applies the feed pressure at right angles to the support.
Main Applications:
Cross-cutting and rip cuts.
Bevel cuts up to 60°.
General joining work.
Compound miter cuts up to 60°.
Compatible materials include solid wood, laminated beams, insulating materials.
Specification:
Input: 3000W
No Load Speed: 3000 – 3600rpm
Tilt Range: -60 – +60°
Cutting Depth: 400mm
Cutting Depth at 45°: 282mm
Cutting Depth at 60°: 199mm
Weight: 14.1kg
Included as standard: 2 x Carbide-Tipped Fine-Cut Saw Chains, 6mm Combination Screwdriver, Parallel Guide Fence, & 10m Mains Cable.
3 Years Warranty on all Mafell Power Tools when registered.
