Makita AF506 18G Air Brad Nailer

Calculating latest stock
Code: 34357
Part No: AF506MAK
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:3
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
3 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
£109.00 each
exc. VAT
£130.80 each
inc. VAT
Add to order

Product Overview

Manufacturer: Makita

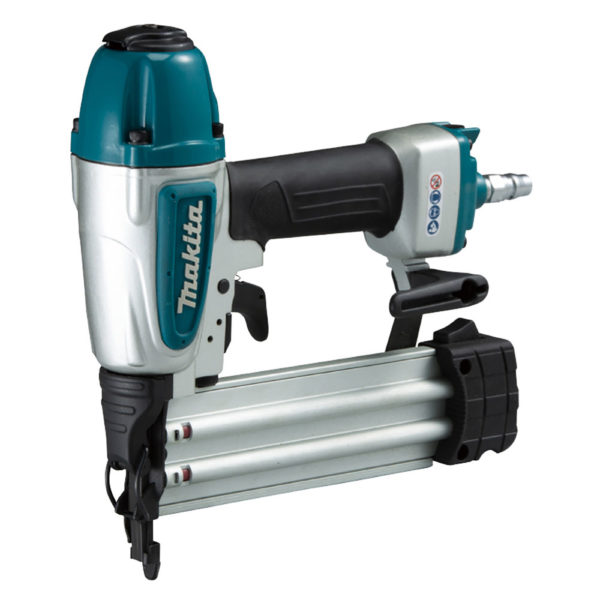

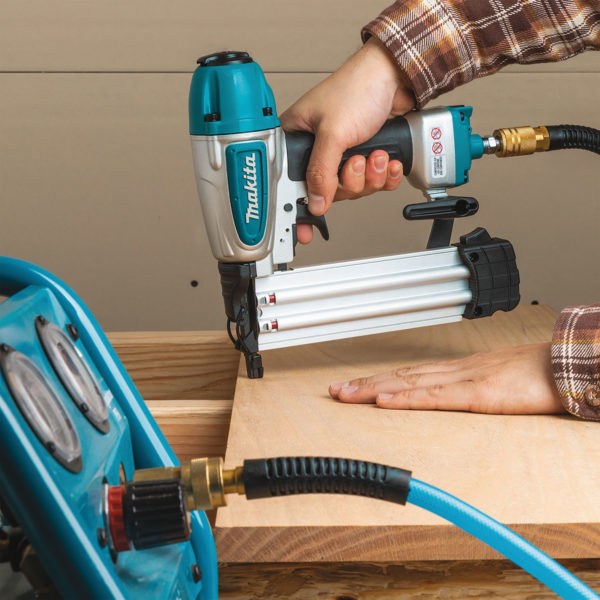

  • The Makita AF506 is a pneumatic brad nailer that has been developed as a successor to the previous model AF505/N. Designed for various types of interior nailing work.


    Depth adjustment ensures perfect finish every time.

    Multi-directional exhaust port directs exhaust air away from operator – rotatable 360 degrees by hand.

    By pushing the push button, air from the compressor can be bypassed into the air duster nozzle to produce powerful air blast for clearing up jobsite floor or workpiece.

    Rubber bumpers protect the surface of workpiece from scratches or damage.

    Ergonomic soft grip with convenient tool hook.

    Toolless facility to rapidly remove any jammed nails.

    Slim nose allows better visibility for easy access to the point you aim at, enabling the user to fire nails into tight spaces.

    Magazine nail view window allows checking of remaining nails at a glance.

    Fires standard 18 gauge straight brad nails.


    Nail Length: 15 – 50mm

    Nail Gauge: 18

    Operating Pressure (psi): 70 – 120

    Operating Pressure (bar): 4.9 – 8.2

    Magazine Angle: Straight

    Magazine Capacity: 100

    Weight: 1.3kg
