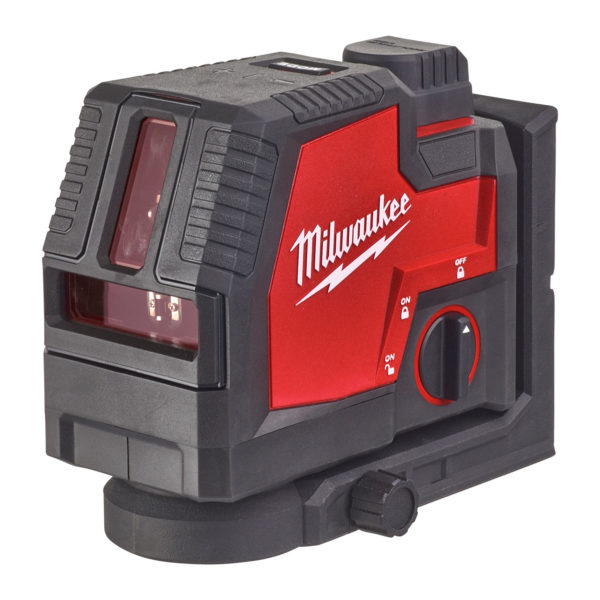

Milwaukee L4CLL Rechargeable Green Cross Line Laser Level

Calculating latest stock
Code: 34809
Part No: L4CLL301CMIL
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:13
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
10 in stock
Out of stock
0 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
1 in stock
Out of stock
Milwaukee Madness Power Tools
Was £195.00Now £181.35 each
exc. VAT
Was £234.00Now £217.62 each
inc. VAT
Add to order

Product Overview

Manufacturer: Milwaukee

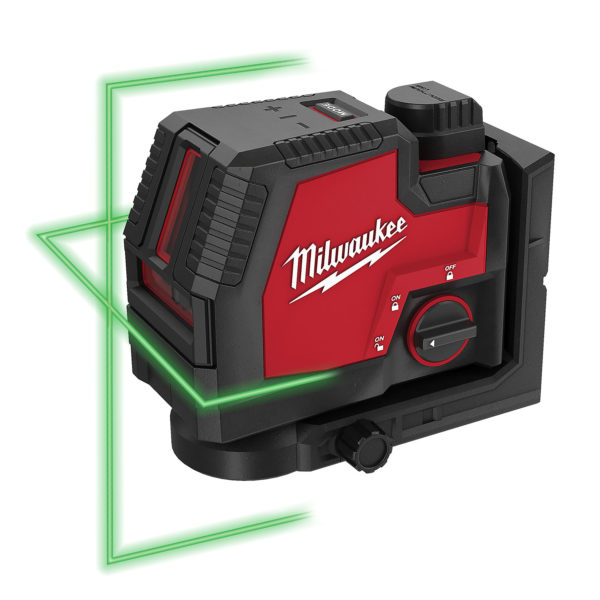

  • The Milwaukee L4CLL Rechargeable Green Cross Line Laser Level provides an all-in-one functionality with horizontal levelling and vertical alignment.


    Built with high intensity green diodes to provide uncompromised visibility – up to 4x better visibility vs red lasers.

    High intensity green beams provide a working range of 30 m (50 m with a detector).

    The rechargeable and removable REDLITHIUM™ USB 3.0 Ah battery provides all day run time of over 8 hours.

    1x REDLITHIUM™ USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery.

    3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport.

    Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼″ tripod thread and hang hole – allows attachment to steel stud, wooden stud and tripod.

    The bracket also provides the laser 360° rotation, with an integrated micro control knob for faster point to point alignment.

    Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops.

    Conveniently charge REDLITHIUM™ USB battery internally during use with micro-USB cable from USB power source or AC outlet.

    Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM™ USB battery charge.


    Accuracy: 0.3 mm

    Battery pack capacity: 3.0Ah

    Battery type: Li-ion

    Colour of laser line: Green

    Compatible laser detector: LLD50

    IP protection class: IP54

    Laser classification: Class 2

    Laser projection: 1x vertical, 1x horizontal °

    Max. run time: 8 hours

    Self-levelling range: 4.0°

    Self-levelling time: 3 seconds

    Voltage: 4V

    Working range detector: 50m

    Working range visible: 30m

    Weight: 0.9kg

    Included as Standard: L4 3.0Ah Battery, USB Cable, Wall Plug, Track Clip & Case.

    Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
