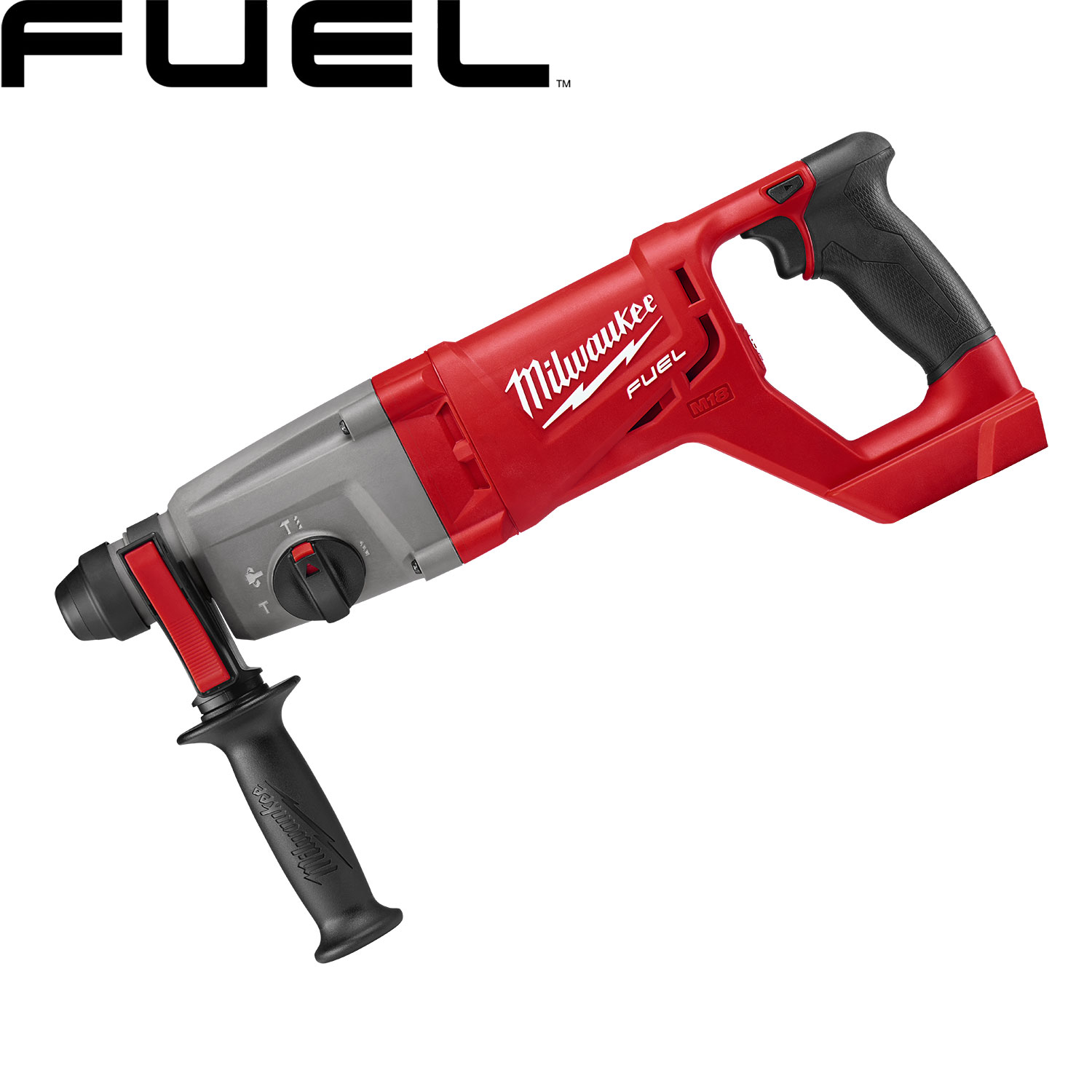

Milwaukee M18CHD 18V Fuel SDS Plus Hammer Drill – Body

Calculating latest stock
Code: 34286
Part No: M18CHD0MIL
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:48
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
42 in stock
Out of stock
2 in stock
Out of stock
2 in stock
Out of stock
0 in stock
Out of stock
2 in stock
Out of stock
£159.00 each
exc. VAT
£190.80 each
inc. VAT
Add to order

Product Overview

Manufacturer: Milwaukee

  • Milwaukee M18CHD 18V Fuel SDS Plus Hammer Drill with the latest brushless technology. The impressive Milwaukee M18 cordless platform is leading the way when it comes to performance and reliability for the industrial user.


    Brushless POWERSTATE™ motor for up to 2x longer motor life and up to 25% more power.

    REDLINK PLUS™ intelligence system delivers the most advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.

    REDLITHIUM™ battery pack delivers up to 2.5x more run time, up to 20% more power, up to 2x more battery life and operates better down to -20°C than other lithium-ion technologies.

    Compact, ergonomic design for increased enduser comfort.

    All metal gear case – optimum seating of the gears for enhanced service life.

    4-mode operation: rotary hammer, hammer only, rotation only and variolock for maximum versatility.

    Individual battery cell monitoring optimises tool run time and ensures long term pack durability.

    Fuel gauge displays remaining charge.

    Flexible battery system works with all MILWAUKEE® M18™ batteries.


    Battery type: Li-ion

    Blow energy: 2.3 J

    Max. drilling concrete: 26 mm

    Max. drilling steel:13 mm

    Max. drilling wood: 28 mm

    Max. drilling wood/ steel/ concrete: 28/ 13/ 26 mm

    Max. percussion rate: 0 – 4900 bpm

    No load speed: 0 – 1400 rpm

    Optimised drilling capacity in concrete: 26 mm

    Reception: SDS-Plus

    Tool reception: SDS-Plus

    Weight: 4.1 kg

    Included as Standard: Case, Side Handle, Depth Gauge, Grease.

    Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
