Milwaukee M18FMDP 18V Fuel 38mm Mag Drill c/w 2 x 5.0Ah Batt

Calculating latest stock
Code: 34599
Part No: M18FMDP502CMIL
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
Click & Collect
Check the stock levels at our depots below and select ‘Click and Collect’ at checkout (where available).
Check the stock at each depot:
View depots
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
0 in stock
Out of stock
Milwaukee Madness Power Tools
Milwaukee Madness promotion, and Milwaukee Authorised Dealer
Was £999.00Now £929.07 each
exc. VAT
Was £1,198.80Now £1,114.88 each
inc. VAT
Add to order

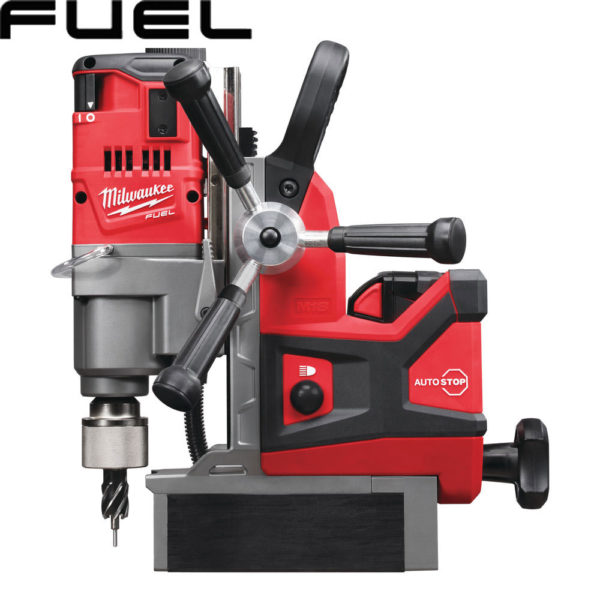

Product Overview

Manufacturer: Milwaukee

  • Milwaukee 18V Fuel Generation II range with the latest brushless technology and 5.0Ah Redlithium-ion batteries. The impressive Milwaukee M18 cordless platform is leading the way when it comes to performance and reliability for the industrial user.


    Milwaukee® designed and built brushless POWERSTATE™ motor provides corded drilling performance with strongest magnet holding force on ¼″ steel and 40 x 18 mm holes per battery charge.

    REDLINK PLUS™ intelligence system delivers the most advanced digital overload and blade lock-up protection and uniquely enhances the tool performance under load.

    REDLITHIUM-ION™ battery pack delivers up to 2.5x more run time, up to 20% more power, up to 2x more battery life and operates better down to -20°C than other lithium-ion technologies.

    AUTOSTOP™ lift-off detection: Detects excess rotation and automatically cuts power to the drill for best user protection.

    Self-powered permanent magnet with 8,890 N of holding force prevent accidental magnet deactivation for improved user protection and easy alignment.

    2 speed gear box for optimized drilling speed with 400 and 690 RPM´s when using annular cutters or twist drill bits.

    Maximum drilling capacity of 38 mm with use of annular cutters and 13 mm straight shank twist drill bits.

    Keyless 19 mm Weldon reception for fast and easy accessory change.

    On board magnet lubrication tank for fixing on the machine or on the material, especially when drilling in vertical positions.

    146 mm stroke length for usage of different accessories.

    Tool-free detachable handle for right or left hand usage.

    On board LED light to illuminate the work surface.


    No load speed: 400 / 690 rpm

    Magnet holding power: 8,890 N

    Max. drilling solid bit: 13 mm

    Max. diameter broaching capacity: 38 mm

    Max. depth broaching capacity: 50 mm

    Stroke length: 146 mm

    Weight: 13.0 kg

    Nb Due to the battery cradle size the largest capacity battery that can be used with this machine is 9.0Ah

    Included as Standard: 2 x 18V (5.0Ah) Redlithium-ion Batteries, Multi-Voltage Charger, 3/4” Weldon to ½” Chuck Adapter, Chuck Key, Magnetic Lubrication Tank, Safety Strap & Case

    Exclusive 3 Years Warranty on all Milwaukee Power Tools including Batteries & Chargers when registered.
